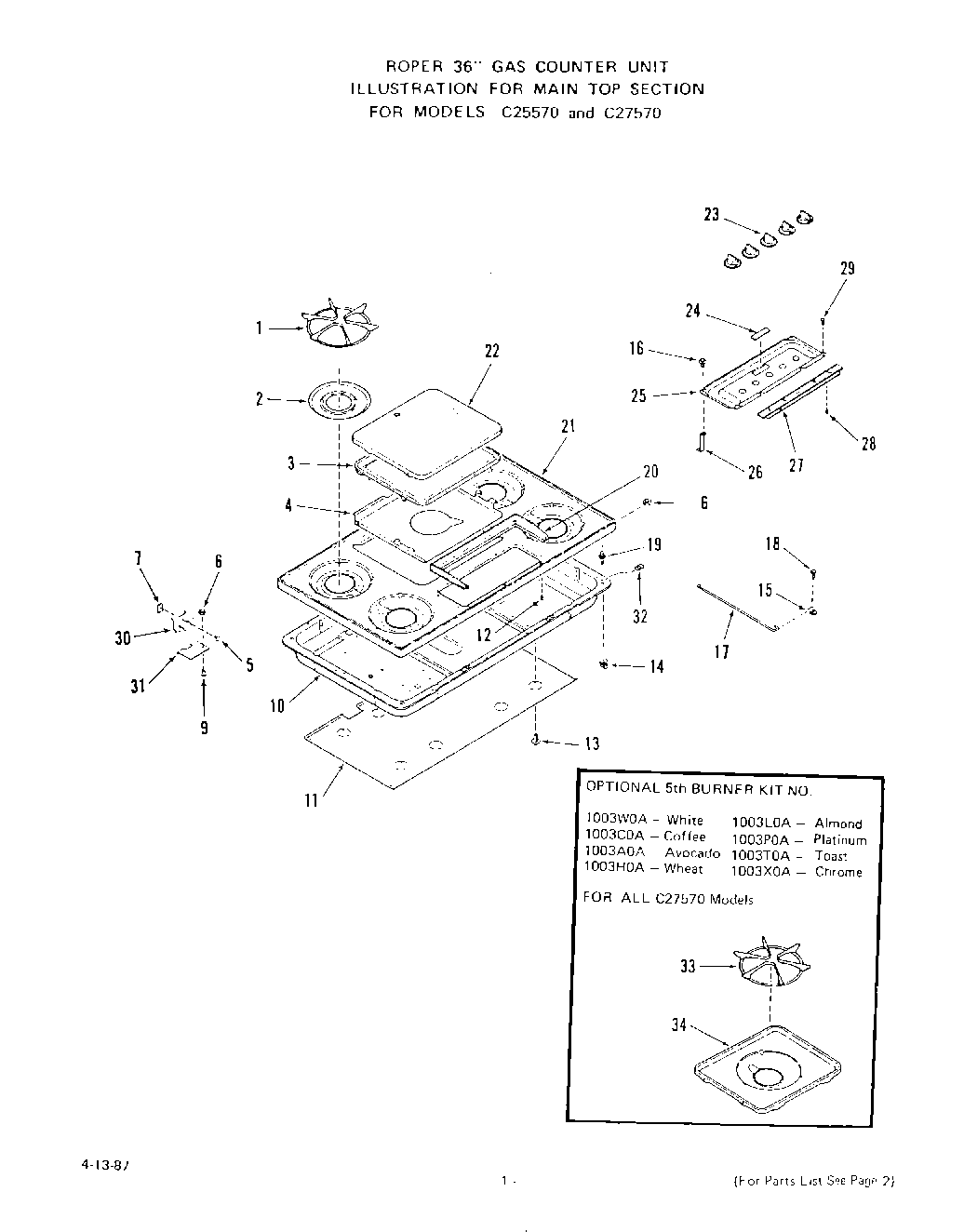

C2757W0 02 – MAIN TOP

Products

Position	Product
2	Spill Bowl (4 Required)
3	Griddle Plate
4	Bracket, Control Mounting
5	Screw 10 – 32 x 7/16“
6	Keps Nut 8-32
7	Speed Nut
9	Screw 8-32×1/4“
10	Burner Box
11	Shield-Burner Box
14	Catch-Main Top Strike (2 Required)
15	Clip
16	Screw 10 – 32 x 1/4“
17	Support-Main Top
18	Screw 10-32×3/8“
19	Strike-Main Top (2 Required)
20	Shell Assembly (Coffee)
21	C2757LO Platinum
21	C2557AO
21	C2557HO
21	Bracket, Control Mounting
21	Main Top White
21	C2557LO
21	C2557WO
21	C2557XO
21	C2757WO Coffee
21	C2757CO Avocado
21	C2757XO
21	C2757TO Chrome
21	C2757AO Golden Wheat
21	C2557PO
21	C2557TO
21	C2757HO Almond
21	C2557CO
22	Griddle Cover (White 1633W1A, W2A)
22	Griddle Cover (Coffee 1633C1A, C2A)
22	Griddle Cover (Avocado 1633A1A, A2A)
22	Toast
22	Griddle Cover (Golden Wheat 1633H1A, H2A)
22	Griddle Cover (Almond 1633L1A, L2A)
22	Griddle Cover (C27570 Models)
22	Chrome
22	Platinum
23	5 Req.
23	5 Req.
23	Knob-Gas Valve
24	Name Plate
25	Control Panel
25	Motor Fan (Alternate)
25	C2557O
26	Bracket-Control Panel (2 Req)
27	Shell Assembly (New Avocado)
27	Front Trim
27	Shell Assembly (Almond)
28	Screw 7-32×5/16“(2 Req) All 2101 Models
29	WPL 97220
30	Upper Leaf-Hinge (Lt. or Rt.)
31	Lower Leaf-Hinge (Lt. or Rt.)
32	Washer
33	Top Grate (4 Required)
34	Platinum
34	Toast
34	Chrome
34	Aeration Pan-Griddle (White)
34	WPL 325417
34	Aeration Pan-Griddle (Golden Whe
34	Aeration Pan-Griddle (Avocado)
34	Aeration Pan-Griddle (Coffee)
34	Griddle Aeration Pan
