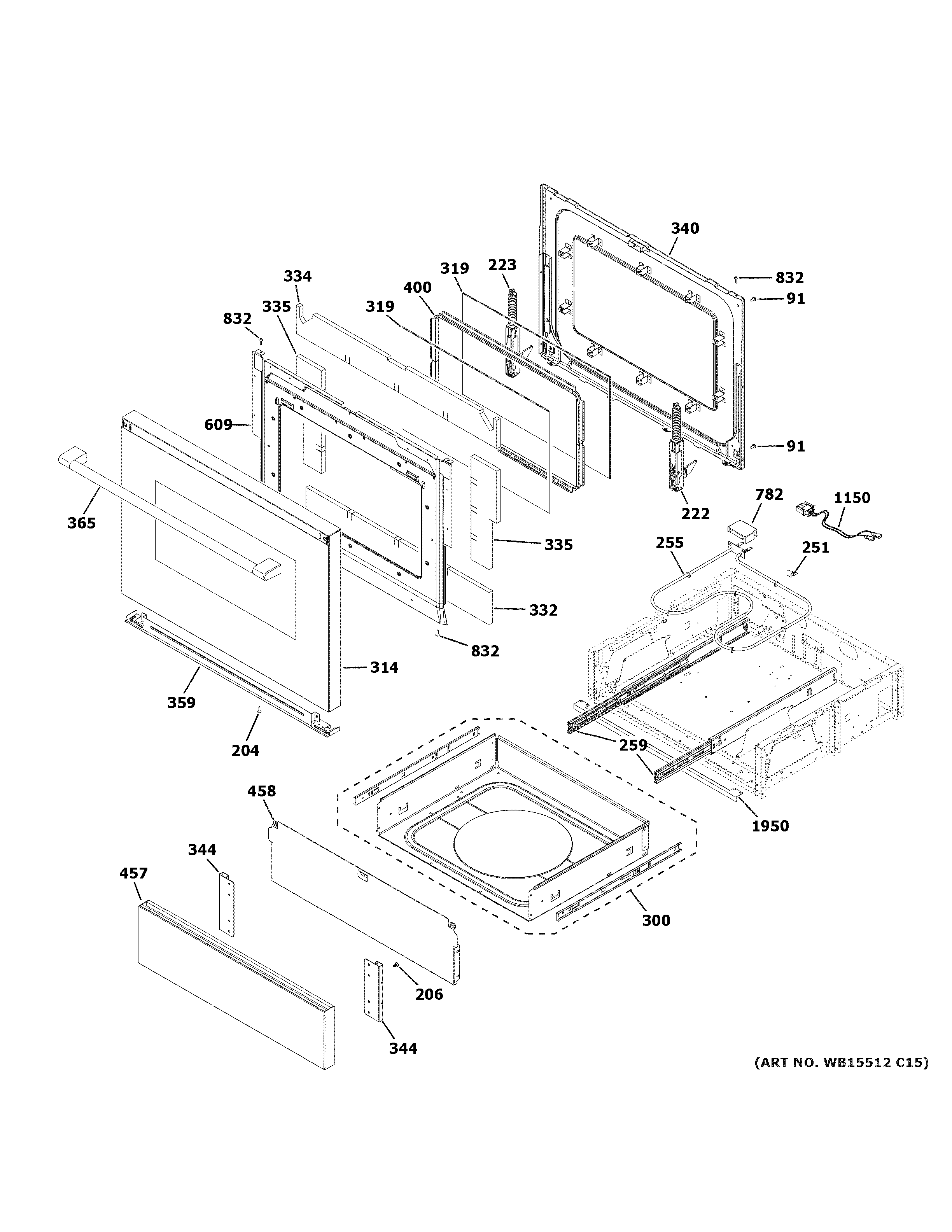

C2S900M2N1S5 DOOR & DRAWER PARTS

C2S900M2N1S5 DOOR & DRAWER PARTS

Written by

in

C2S900M2N1S5 DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222DOOR HINGE
223WB10X24776 GE Oven Door Hinge
251WB02K10023 GE Oven Heating Element Clamp
255WB44K10011 GE Oven Heating Element
259WB63X33821 GE Slide and Bearing Assembly
259SLIDE & BEARING ASSEMBLY LEFT
300DRAWER BODY AND SLIDE INTERNAL
314STAINLESS GLASS OUTER DOOR
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
334WB35X20077 GE Door Insulation
335WB35K10222 GE Oven Insulation
340WB56X24760 GE Range Door Liner
344BRACKET DRAWER
359BOTTOM DOOR
365WB18X33811 GE Stainless Steel Handle
400WB34X28742 GE Window Frame Assembly
457STAINLESS GLASS OUTER DRAWER
458LINER DRAWER
609WB34X24749 GE Door Guard
782WB34K10128 GE Heating Element Cover
832WR01X10065 GE Screw
1150HARNESS HIDDEN BAKE
1950WB01K10072 GE Oven Front Bottom Trim
