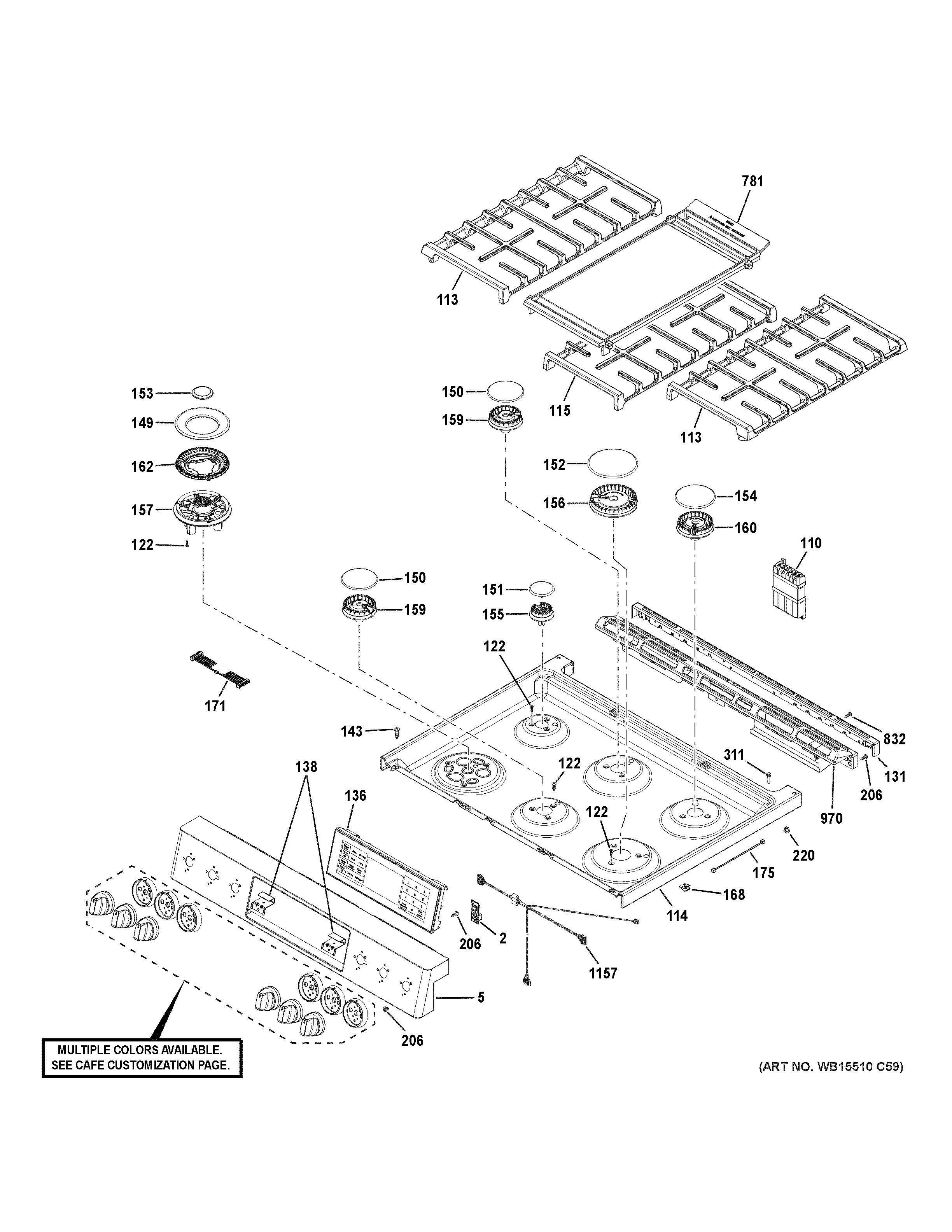

C2S900P2M3S1 CONTROL PANEL & COOKTOP

C2S900P2M3S1 CONTROL PANEL & COOKTOP

Written by

in

C2S900P2M3S1 CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
5WB36X31634 GE Oven Stainless Steel Manifold Pan
110WB27X28838 GE Oven Spark Module
113WB31X28754 GE Oven Grate Assembly
114WB62X28227 GE Range Top
115WB31X28256 GE Range Central Grate
122WB01X24735 GE Oven CKT Screw
131WB07X28824 GE Oven Trim Kit
136GLASS & TOUCH BOARD ASM
138WB34X28237 GE Bracket
143SCREW MTG END CAP
149WB29X28253 GE Oven Surface Burner Cap
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152CAP BURNER ASM (15K)
153WB16X28252 GE Oven Burner Cap Inner
154WB29K10024 GE Burner Cap Oven
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156WB16X24722 GE Oven Gas Range XL Surface Burner
157WB16X28656 GE Oven Surface Burner Base
159WB16X24724 GE Oven Medium Burner
160BURNER LARGE V2
162HEAD BURNER
168WB02X24976 GE Oven Igniter Clip V2
171HARNESS INTERFACE
175WB18X25597 GE Ground Harness
206WB01K10091 GE Oven Screw
220GEN WB02K0008
311BUMPER
781WB31X28254 GE Oven Cast Griddle
832WR01X10065 GE Screw
970WB07X28818 GE Oven Vent Trim
1157WB18X41891 GE Wire Jumper Harness
