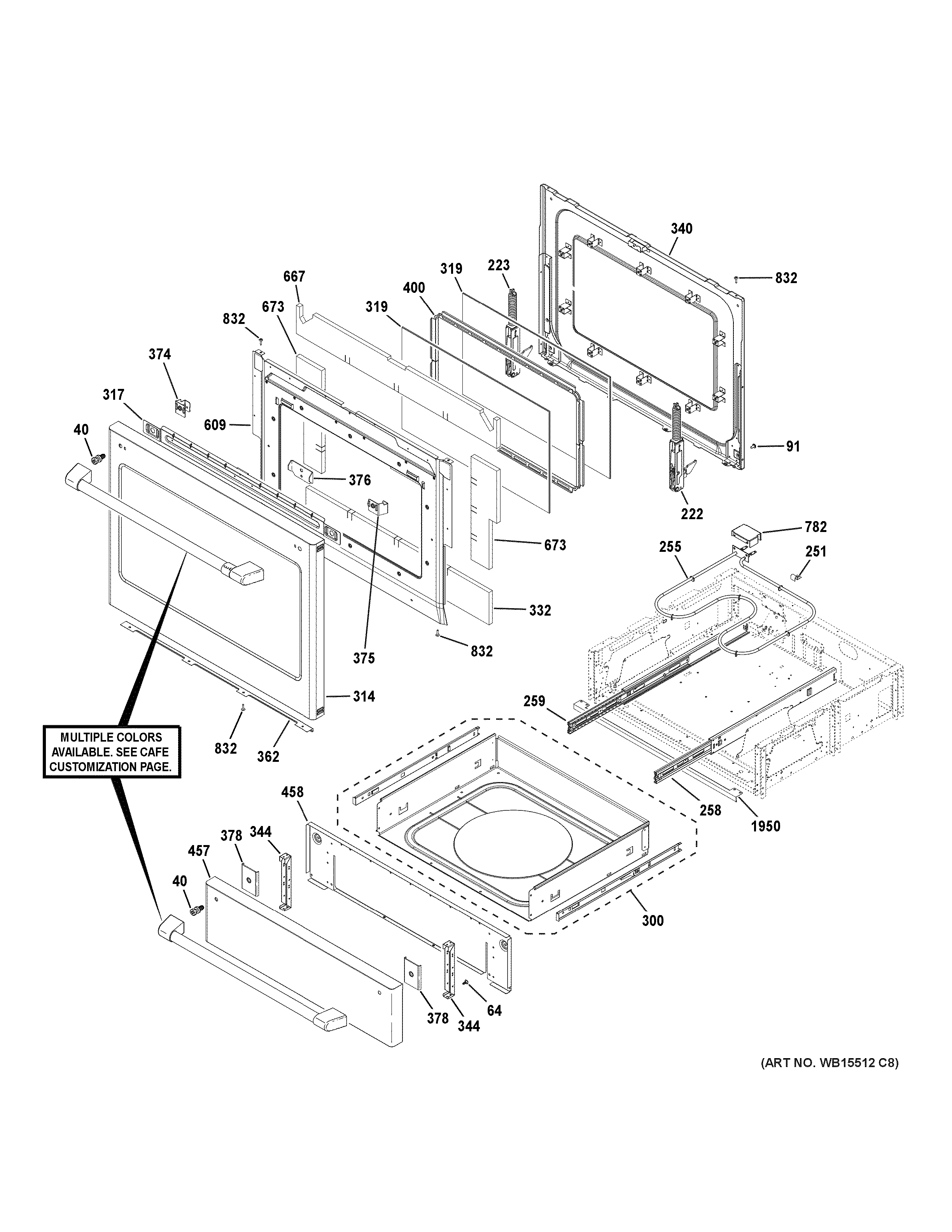

C2S900P2M3S1 DOOR & DRAWER PARTS

C2S900P2M3S1 DOOR & DRAWER PARTS

Written by

in

C2S900P2M3S1 DOOR & DRAWER PARTS

Products

PositionProduct
40WR01X11007 GE Refrigerator Fastener Door Handle
64SCREW M4X8
91WB01T10008 GE Oven Screw 10-32
222WB10X30271 GE Oven Door Hinge
223WB10X26769 GE Oven Door Hinge
251WB02K10023 GE Oven Heating Element Clamp
255WB44K10011 GE Oven Heating Element
258WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
314WB56X31647 GE Glass Pane Assembly, Stainless Steel
317WB34X31702 GE Panel Backer Vent
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
374WB34X31703 GE Bracket Fastener
375WB34X31701 GE Fastener Bracket
376WB34X31739 GE Bracket Backer
378WB01X31748 GE Anchor Nut
400WB34X28742 GE Window Frame Assembly
457WB56X31644 GE Oven Stainless Steel Drawer Panel
458WB56X29436 GE Drawer Liner Oven
609WB34X24749 GE Door Guard
667WB35X20077 GE Door Insulation
673WB35K10222 GE Oven Insulation
782WB34K10128 GE Heating Element Cover
832WR01X10065 GE Screw
1950WB01K10072 GE Oven Front Bottom Trim
