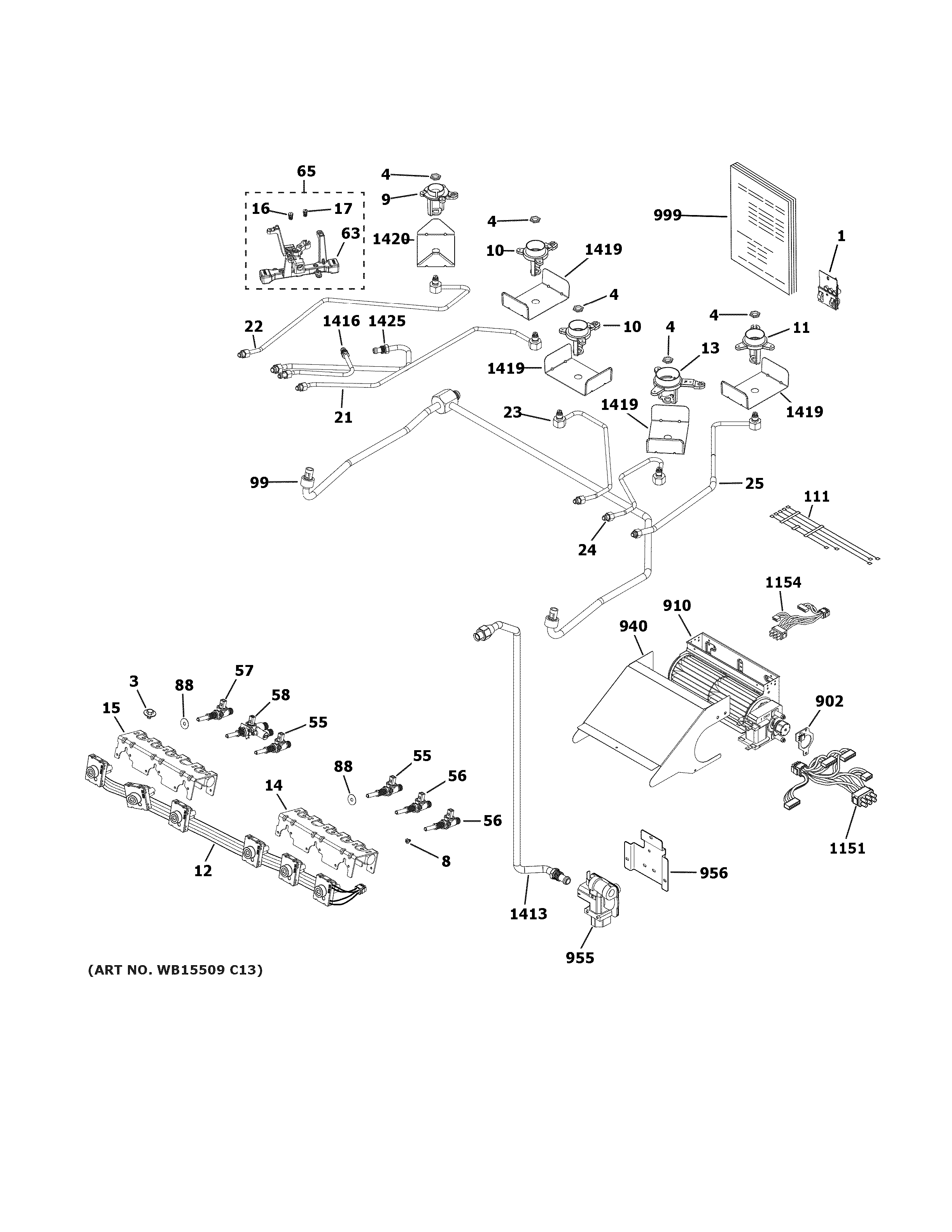

C2S900P2M3S1 GAS & BURNER PARTS

C2S900P2M3S1 GAS & BURNER PARTS

Written by

in

C2S900P2M3S1 GAS & BURNER PARTS

Products

PositionProduct
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X39139 GE LP Conversion Kit
1WB28X29255 GE Range LP High Altitude Kit
1LABEL WIRE DIAGRAM
3WB01K10067 GE Oven Screw 1/4" HD 20
4WB01K10037 GE Oven Economic Nut
8WB01K10002 GE Oven Screw 8-32
9WB02X24728 GE Range Small Injector
10WB02X24727 GE Oven Right Front Burner Jet with Electrode
11WB02X24726 GE Range Injector Large
12WB18X28761 GE Oven Switch Harnesses
13WB02X24725 GE Oven Inlet XLV2
14WB28X28202 GE Manifold Pipe Assembly
15WB28X28203 GE Manifold Pipe Assembly
16WB28X28843 GE Oven Natural Gas Orifice Spud
17WB28X29600 GE Oven Orifice Spud
21WB16X28685 GE Oven Orifice Holder
22WB28X28141 GE Oven Left Rear Orifice Holder
23WB13X28673 GE Oven Orifice Holder
24WB28X28846 GE Oven Right Front Orifice Holder
25WB28X28148 GE Oven Right Rear Orifice Holder
55VALVE BURNER 270
56VALVE BURNER 270
57WB21X25979 GE Oven Burner Valve 270
58WB21X28821 GE Range Burner Valve 3,170
63WB16X28863 GE Injector MR Hob
65WB16X28867 GE Stove Burner Injector Assembly
88WB02X28680 GE Range Valve Cover
99WB28X28157 GE Manifold Supply Tube
111WB18X28727 GE Oven Electrode and High Voltage Harness
902WB27X28659 GE Oven Sensor Board
910WB26X32571 GE Range Tangential Blower
940WB34X28735 GE Oven Fan Support
955WB19K10018 GE Oven Pressure Regulator
956WB02X22890 GE Oven Regulator Bracket
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM QUICK OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
1151WB18X28900 GE Main Harness
1154WB18X31604 GE Oven Blower Harness
1413WB28X28151 GE Range Burner Supply Tube Box
1416WB28X28161 GE Oven Dual Simmer Valve Tube
1419WB02X28653 GE Air Deviator
1420WB02X28652 GE Air Deviator
1425WB28X28155 GE Dual Valve Main Tube
