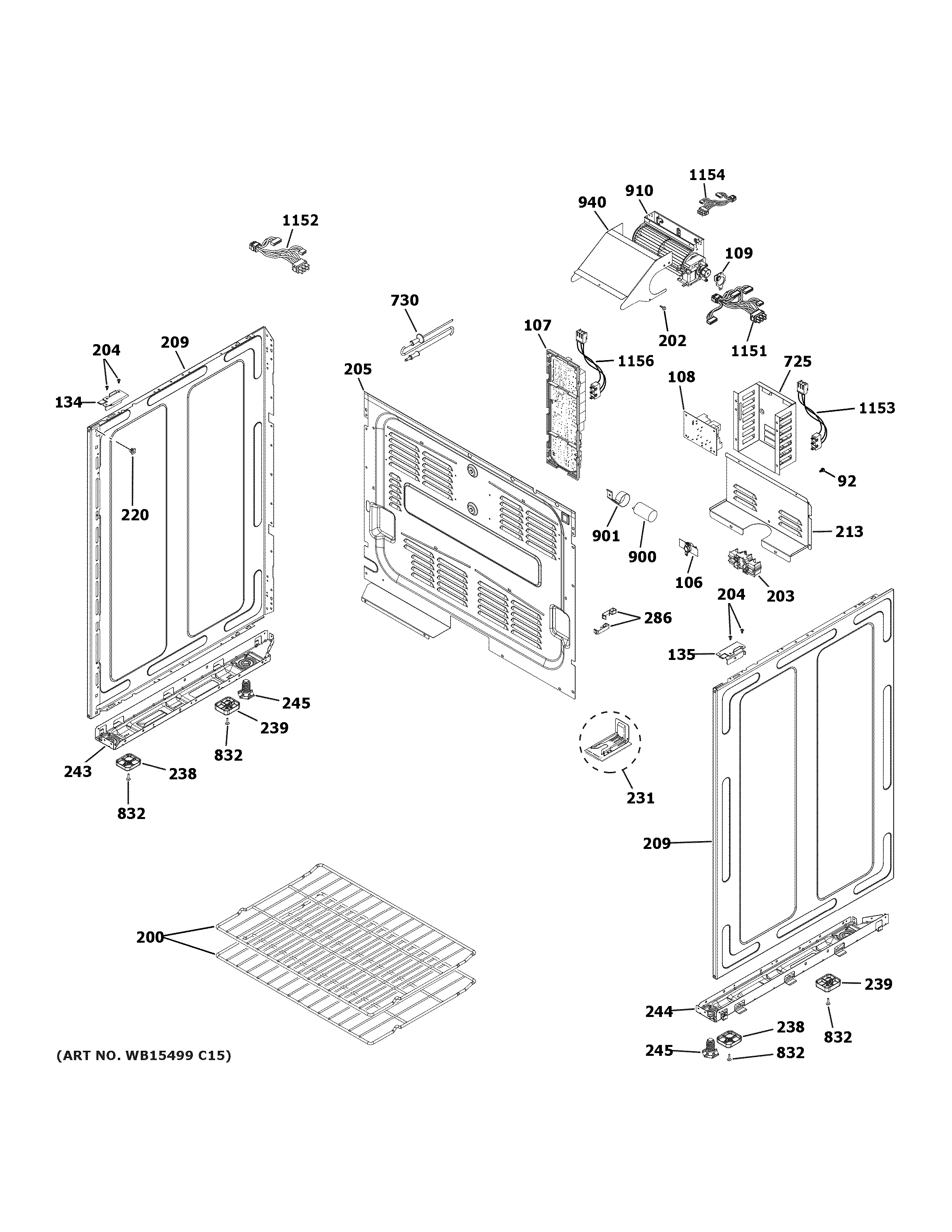

C2S950M2N1S5 BODY PARTS

C2S950M2N1S5 BODY PARTS

Written by

in

C2S950M2N1S5 BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
106WB24X29505 GE Oven High Limit Switch
107WB27X34887 GE Machine Control and Relay WI
108WB27X28658 GE Oven Daughter Relay Board
109WB27X28659 GE Oven Sensor Board
134FRONT SUPPORT LH
135FRONT SUPPORT RH
200WB48X21508 GE Oven Rack
202WB1K5062 GE Oven Screw
203WB27X31509 GE Terminal Block Assembly
204WB01K10091 GE Oven Screw
205COVER BACK
209WB56X28847 GE Oven Side Panel
213WB34X28980 GE Oven Terminal Block Cover
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
243WB63X25481 GE Oven Support Base Right
244WB63X25480 GE Oven Support Base Left
245WB02K10182 GE Oven Leveling Leg
286WB02X21679 GE Oven Wire Clip
725WB34X25587 GE Motor Cover
730WB20T10024 GE Oven Thermistor Probe
832WR01X10065 GE Screw
900WB08K10009 GE Oven Motor Capacitor
901WB02K10172 GE Oven Capacitor Holder
910WB26X35086 GE Blower Tangential
940WB34X28735 GE Oven Fan Support
1151HARNESS MAIN
1152HARNESS LATCH
1153DC HARNESS
1154WB18X31604 GE Oven Blower Harness
1156WB18X29669 GE Jumper Harness
