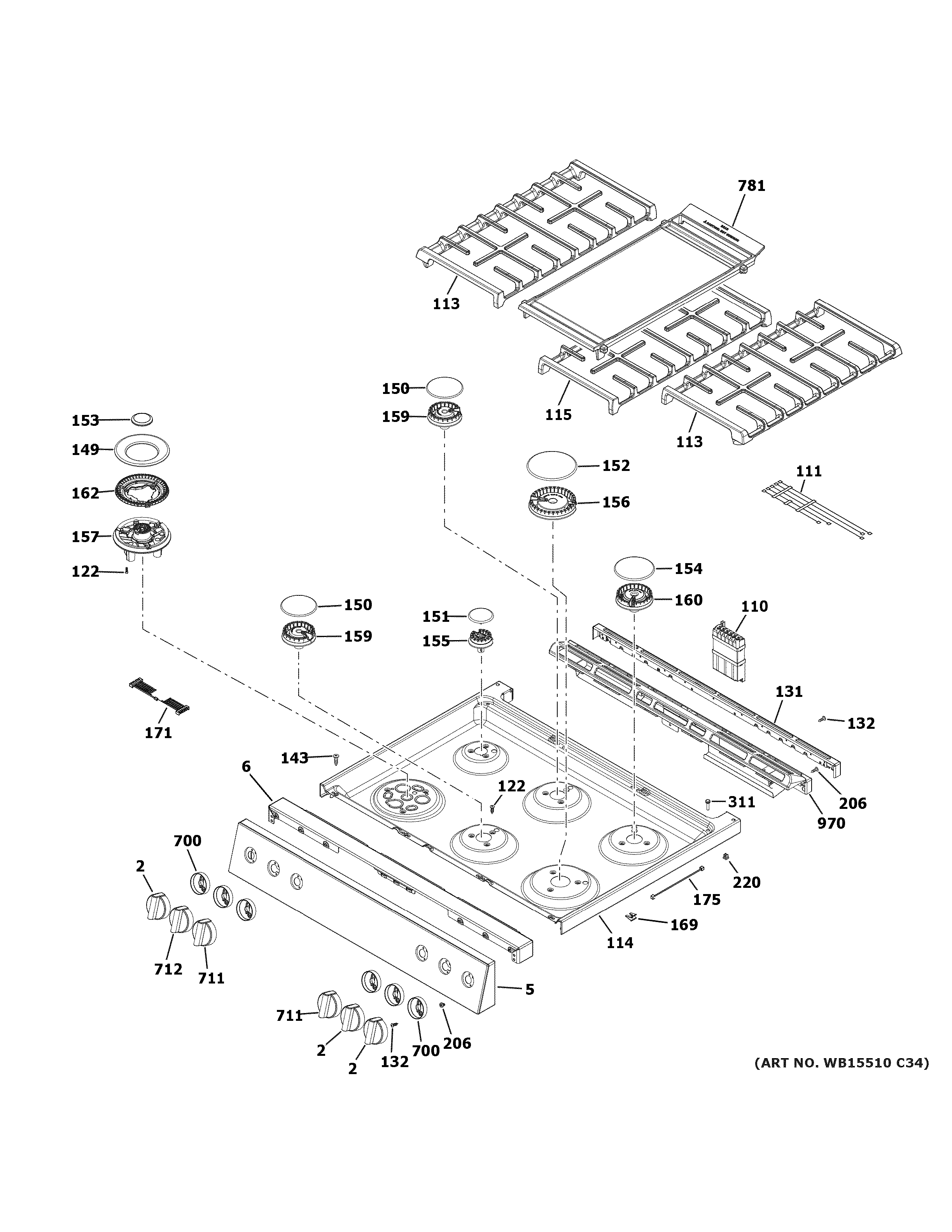

C2S950M2N1S5 CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X33803 GE Burner Knob
5	WB36X33800 GE Panel and Gasket Assembly
6	WB36X31632 GE Stainless Steel Manifold
110	WB27X28838 GE Oven Spark Module
111	WB18X28727 GE Oven Electrode and High Voltage Harness
113	WB31X28754 GE Oven Grate Assembly
114	WB62X28227 GE Range Top
115	WB31X28256 GE Range Central Grate
122	WB01X24735 GE Oven CKT Screw
131	WB07X28824 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
143	SCREW MTG END CAP
149	WB29X28253 GE Oven Surface Burner Cap
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	CAP BURNER ASM (15K)
153	WB16X28252 GE Oven Burner Cap Inner
154	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24722 GE Oven Gas Range XL Surface Burner
157	WB16X28656 GE Oven Surface Burner Base
159	WB16X24724 GE Oven Medium Burner
160	BURNER LARGE V2
162	HEAD BURNER
169	WB02X24976 GE Oven Igniter Clip V2
171	WB18X33808 GE LCD Harness
175	WB18X25597 GE Ground Harness
206	WB01X26995 GE Oven Screw 8-18 AB X 5/16
220	GEN WB02K0008
311	BUMPER
700	WB03X33805 GE Collar
711	WB03X33804 GE V2 Griddle Knob
712	WB03X33802 GE Burner Knob Multi Ring
781	WB31X28254 GE Oven Cast Griddle
970	WB07X28818 GE Oven Vent Trim
