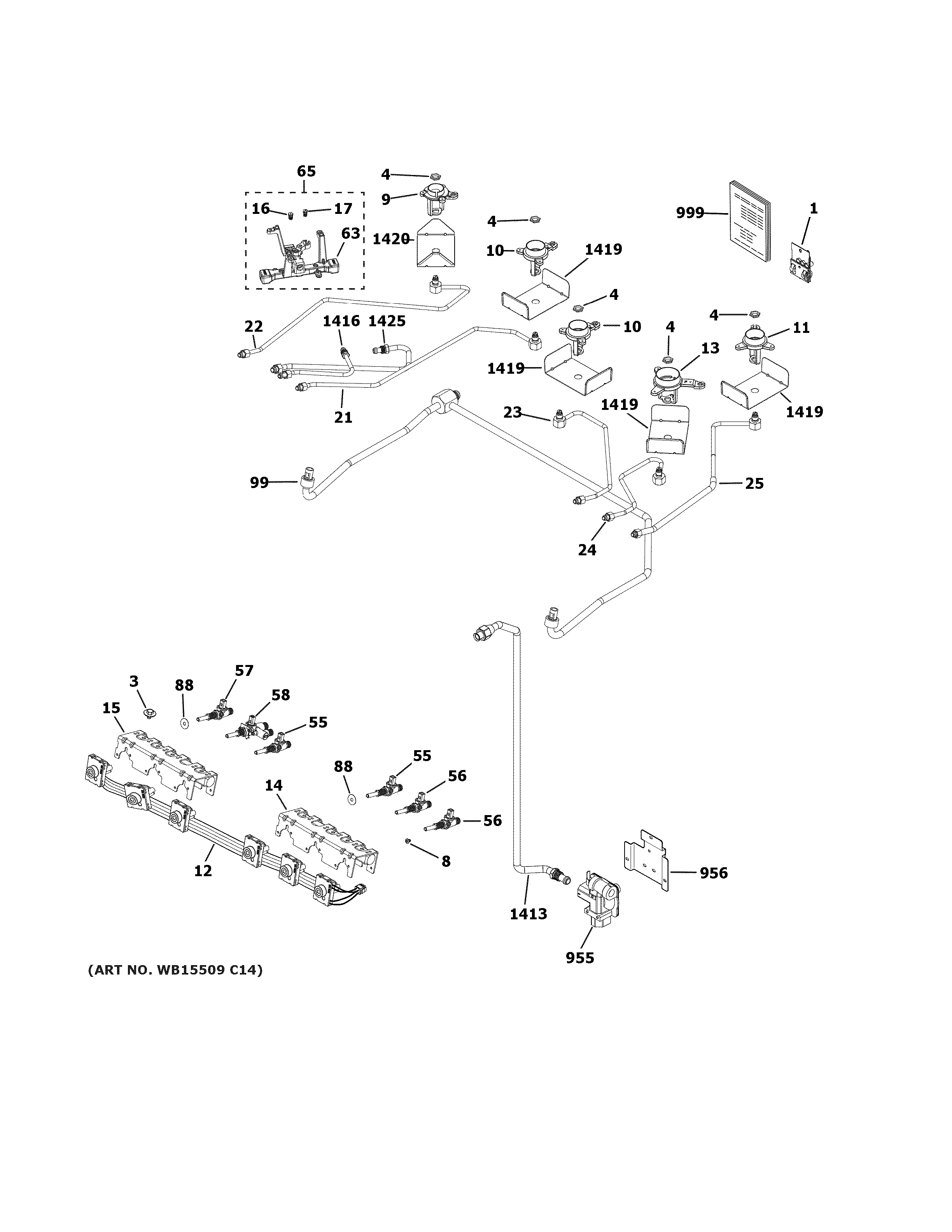

C2S950P2M1S1 GAS & BURNER PARTS

Products

Position	Product
1	WB28X29254 GE Range Natural Gas High Altitude Kit
1	WB28X29255 GE Range LP High Altitude Kit
1	WB28X39139 GE LP Conversion Kit
1	LABEL WIRE DIAGRAM
3	WB01K10067 GE Oven Screw 1/4" HD 20
4	WB01K10037 GE Oven Economic Nut
8	WB01K10002 GE Oven Screw 8-32
9	WB02X24728 GE Range Small Injector
10	WB02X24727 GE Oven Right Front Burner Jet with Electrode
11	WB02X24726 GE Range Injector Large
12	WB18X28761 GE Oven Switch Harnesses
13	WB02X24725 GE Oven Inlet XLV2
14	WB28X28202 GE Manifold Pipe Assembly
15	WB28X28203 GE Manifold Pipe Assembly
16	WB28X28843 GE Oven Natural Gas Orifice Spud
17	WB28X29600 GE Oven Orifice Spud
21	WB16X28685 GE Oven Orifice Holder
22	WB28X28141 GE Oven Left Rear Orifice Holder
23	WB13X28673 GE Oven Orifice Holder
24	WB28X28846 GE Oven Right Front Orifice Holder
25	WB28X28148 GE Oven Right Rear Orifice Holder
55	VALVE BURNER 270
56	VALVE BURNER 270
57	WB21X25979 GE Oven Burner Valve 270
58	WB21X28821 GE Range Burner Valve 3,170
63	WB16X28863 GE Injector MR Hob
65	WB16X28867 GE Stove Burner Injector Assembly
88	WB02X28680 GE Range Valve Cover
99	WB28X28157 GE Manifold Supply Tube
955	WB19K10018 GE Oven Pressure Regulator
956	SUPPORT REGULATOR
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
999	PM INSTALL INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM QUICK GUIDE
999	PM WI FI INSTRUCTIONS
1413	WB28X28150 GE Oven Burner Tube Supply Box
1416	WB28X28161 GE Oven Dual Simmer Valve Tube
1419	WB02X28653 GE Air Deviator
1420	WB02X28652 GE Air Deviator
1425	WB28X28155 GE Dual Valve Main Tube
