C2S950P2M1S1 UPPER OVEN

C2S950P2M1S1 UPPER OVEN

Written by

in

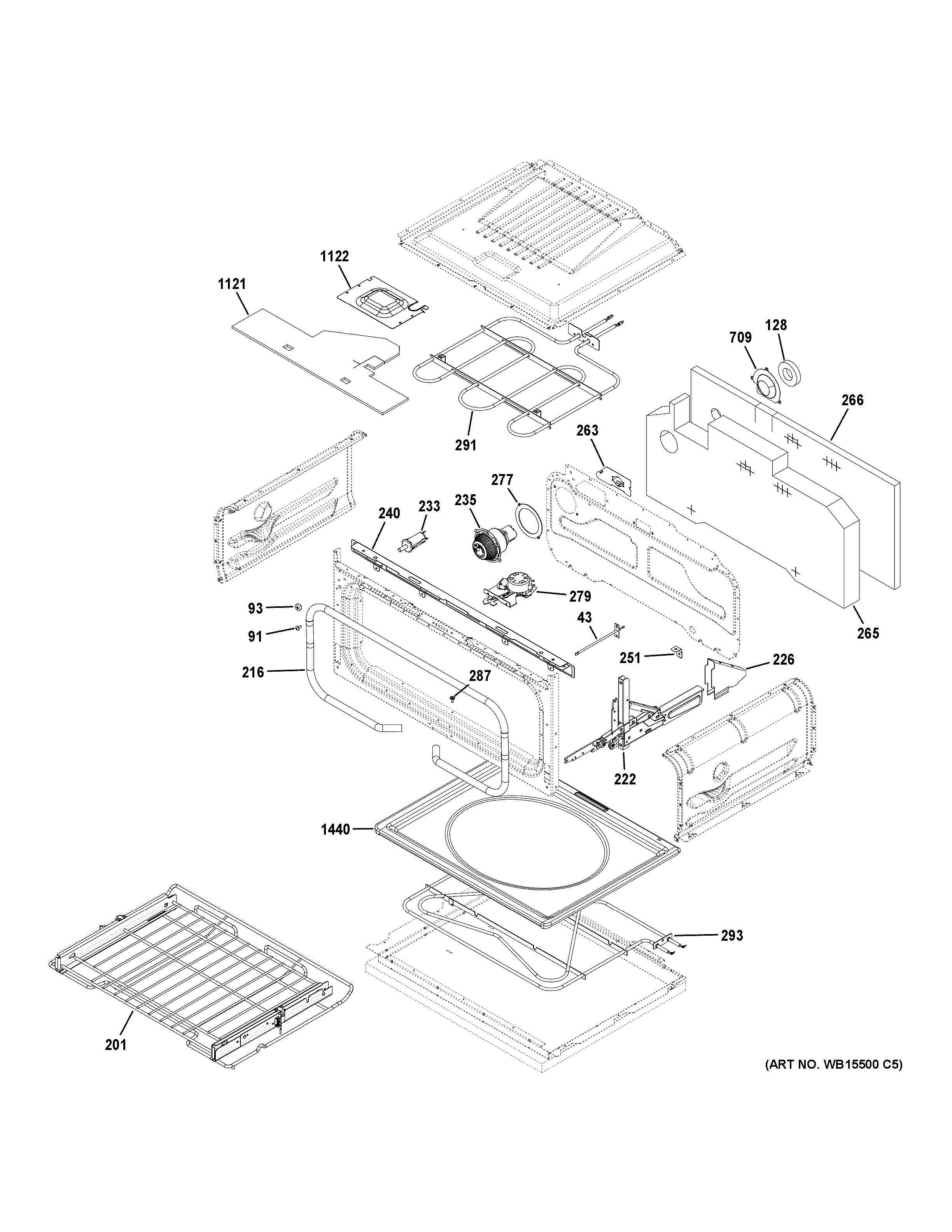

C2S950P2M1S1 UPPER OVEN

Products

PositionProduct
43SENSOR ASM
91WB01T10008 GE Oven Screw 10-32
93WB02X28737 GE Oven Front Frame Bumper
128LAMP INSULATION
201WB48X20990 GE Oven Slide Rack Assembly
216WB35X29666 GE Oven Gasket
222WB10X28782 GE Oven Right-Hand Hinge Assembly
226WB34X28832 GE Triangle Cover
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
240MESH FRAME
251WB2K3 GE Angle Support
263CATALYST BRACKET
265WB35X28788 GE Oven Back Insulation
266WB35X28790 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X28794 GE Oven Automatic Latch
287WB01T10009 GE Screw 10-16 Shoulder Type A
291WB44X28669 GE Broil Element
293WB30X28763 GE Oven Hidden Bake Element
709WB08K10018 GE Range Light Cover
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1440WB63X28660 GE Oven Bottom
