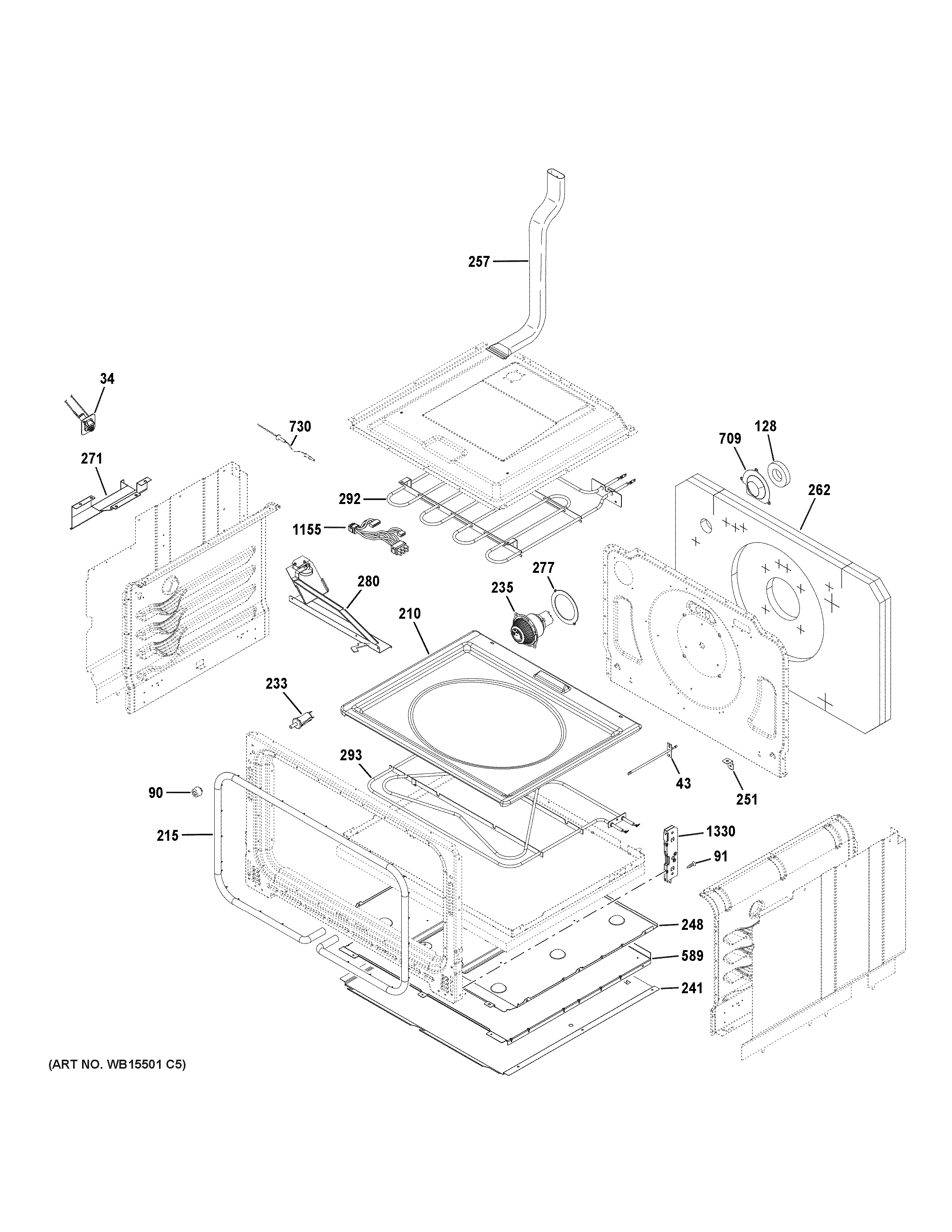

C2S950P3M1D1 LOWER OVEN

C2S950P3M1D1 LOWER OVEN

Written by

in

C2S950P3M1D1 LOWER OVEN

Products

PositionProduct
34WB34K10134 GE Oven Receptacle Assembly
43SENSOR ASM
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
128LAMP INSULATION
210WB63X28661 GE Bottom Oven
215WB32X29538 GE Oven Gasket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
241BOTTOM RANGE DEFLECTOR
248WB63X28975 GE Bottom Panel
251WB2K3 GE Angle Support
257VENT
262WB35X28789 GE Oven Back Insulation
271WB34X21619 GE Latch Cover
277WB32K10044 GE Oven Light Gasket
280WB10X28795 GE Automatic Latch
292WB44X28668 GE Broil Element
293WB30X28763 GE Oven Hidden Bake Element
589WB63X21725 GE Bottom Duct
709WB08K10018 GE Range Light Cover
730WB20T10024 GE Oven Thermistor Probe
1155HARNESS BAKE
1330WB10X28563 GE Oven Receiver Hinge
