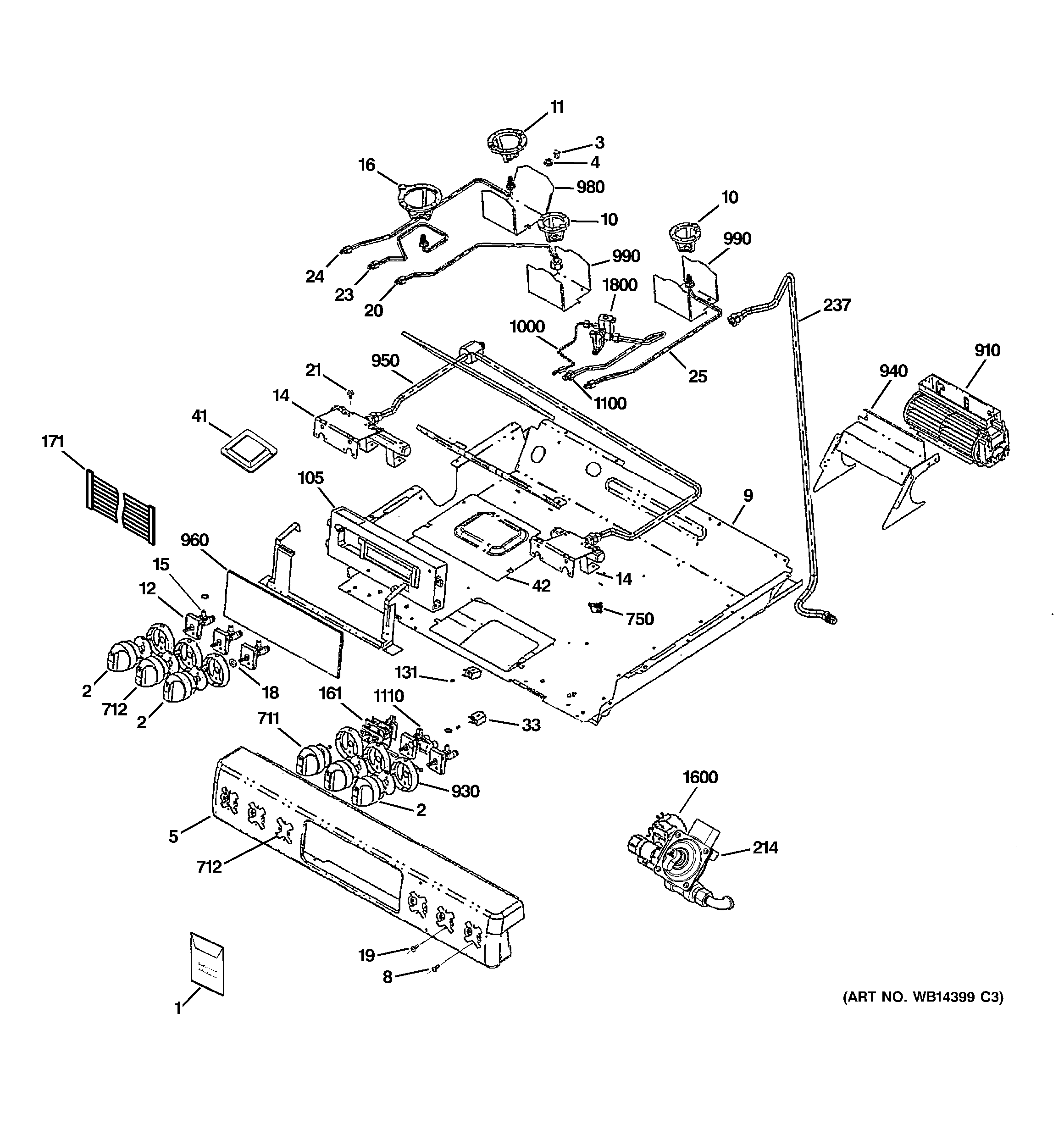

C2S980SEM2SS GAS & BURNER PARTS

C2S980SEM2SS GAS & BURNER PARTS

Written by

in

C2S980SEM2SS GAS & BURNER PARTS

Products

PositionProduct
1WB02T10111 GE Cleaner Stainless Steel
1GEN 49-85130
1GEN WB28K10466
1GEN 31-21320
2WB03K10265 GE Oven Control Knob
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28K10288 GE Oven Orifice Spud
3WB28K10215 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3GEN WB28K10216
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10752
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10136
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB18K10045
14GEN WB28K10470
14GEN WB28K10469
15WB21K10099 GE Oven Burner Valve
15WB21K10117 GE Oven Burner Valve
15WB21K10096 GE Oven Burner Valve 270
15WB21K10097 GE Oven Burner Valve
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10472
21WB01K10067 GE Oven Screw 1/4" HD 20
21WB01K10066 GE Oven Screw 8 HD 10-32
23GEN WB28K10471
24NG ORIFICE & TUBE LR
25GEN WB28K10476
33WB25K10010 GE Oven Light Indicator Pilot
41WB63K10063 GE Burner Box Cover
42WB63K10133 GE Burner Box Cover
105WB27K10377 GE Oven ERC3HP Control
131WB25K10009 GE Oven Lens
161WB20K10017 GE Oven Thermostat
171WB18T10386 GE Oven Touch Glass Wire Harness
214WB19K10018 GE Oven Pressure Regulator
237GEN WB28K10468
711WB03K10266 GE Oven Control Knob
712WB03K10267 GE Oven Knob Assembly
750WB24K10046 GE Oven Limit Switch Bimetal
910WB26K10008 GE Oven 60MM Tangential Blower
930WB04K10037 GE Oven Bezel Knob
940WB34K10096 GE Upper Half Oven Duct
950GEN WB28K10467
960WB27K10311 GE Oven Glass & Touch Board Assembly
980WB02K10167 GE Flow Deviator Assembly
990WB02K10168 GE Deflector
1000GEN WB28K10473
1100GEN WB28K10474
1110GEN WB21K10077
1600GEN WB19K10027
1800GEN WB28K10432
