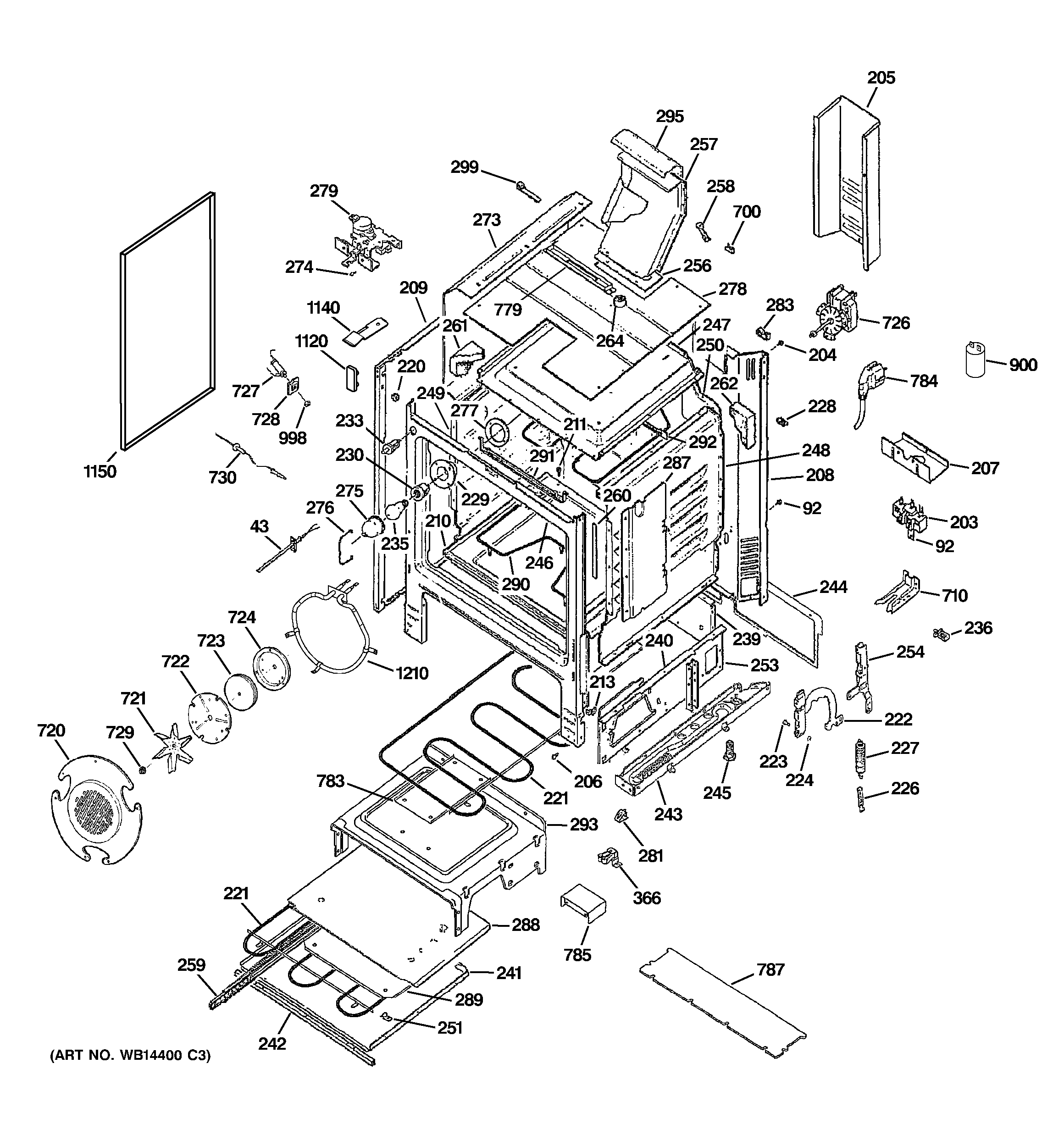

C2S980SEM3SS BODY PARTS

C2S980SEM3SS BODY PARTS

Written by

in

C2S980SEM3SS BODY PARTS

Products

PositionProduct
43SENSOR ASM
92WB1X1261 GE Oven Screw
92PLATE GROUND
203WB17T10011 GE Oven Terminal Block
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10099 GE Oven Cover Motor
206WB01K10091 GE Oven Screw
207WB02K10052 GE Oven Mounting Bracket
208WB35K10039 GE Motor Insulation
208GEN WB63K10137
209GEN WB63K10134
210WB63K10006 GE Oven Bottom Assembly
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10015 GE Oven Bottom Heating Element
221WB44K10014 GE Oven Top Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10068 GE Wire Clip
239PANEL REAR BROIL
240WB63K10055 GE Oven Broil Side Panel
240WB63K10056 GE Oven Broil Side Panel
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
244WB63K10167 GE Drawer Back
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10178
247WB53K10017 GE Top Panel
248WB63K10244 GE Oven Right Side Rack
249WB27X33086 GE Oven Induction Control Assembly
250GEN WB63K10138
251WB02K10023 GE Oven Heating Element Clamp
253WB02K10109 GE Access Cover Spring
253WB02K10108 GE Access Spring Cover
254GEN WB01K0053
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
256WB35K10019 GE Vent Gasket
257WB38K10017 GE Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10025 GE Oven Slide and Bearing Assembly
259WB39K10026 GE Oven Slide and Bearing Assembly
260GASKET OVEN SEAL
261WB35K10143 GE Oven Insulation Wrap
262WB35K10168 GE Oven Back Insulation
264WB35K10028 GE Oven Catalyst Support
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB53K10030
279GEN WB02K10166
281WB02K10073 GE Oven Clip Capillary
283WB02X21679 GE Oven Wire Clip
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288WB35K10054 GE Oven Top Insulation Drawer
289WB49K10011 GE Bottom Deflector
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
293GEN WB63K10058
295WB35K10099 GE Vent Insulation
299GEN WB02K0038
366WB02K10110 GE Oven Catch
700RETAINER-INSULATION
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
710GEN WB02K0012
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10170 GE Oven Fan Support
726GEN WB26K10007
727HARNESS-MEAT PROBE
727PROBE COVER
728GEN WB02X8309
729WB2X8454 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
779GEN WB38K10004
783GEN WB49K10012
784WB18K10036 GE Oven Line Cord
