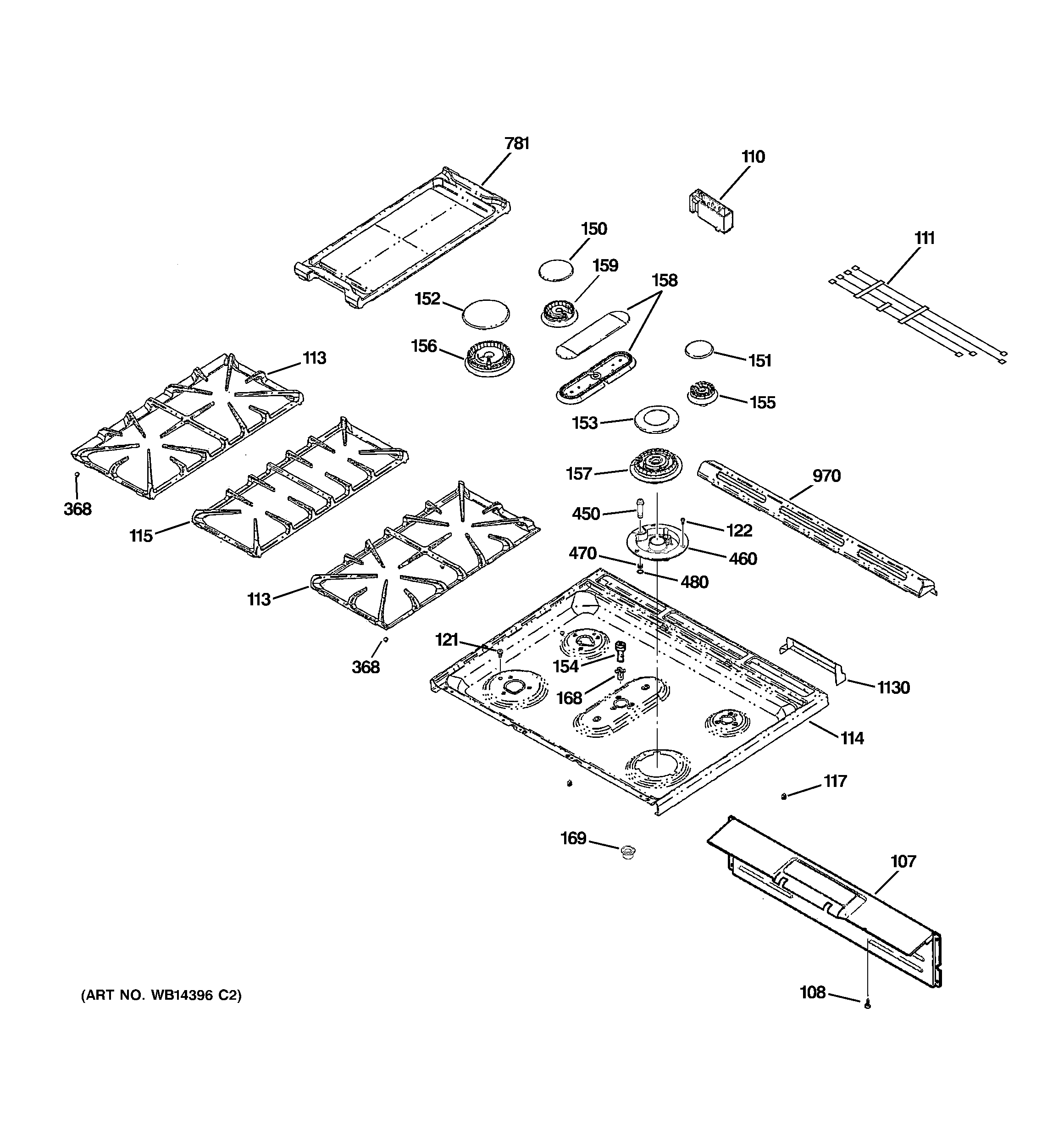

C2S980SEM3SS CONTROL PANEL & COOKTOP

C2S980SEM3SS CONTROL PANEL & COOKTOP

Written by

in

C2S980SEM3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
107GEN WB34K10098
108WB1X5364 GE Oven Mounting Screw
108WB01K10030 GE Screw Assembly
110WB18K10042 GE Oven Harness Module
110WB13X26360 GE Oven Spark Module
111GEN WB18K10046
113WB31K10219 GE Oven Cast Side Grate
114GEN WB62K10121
115WB31K10218 GE Oven Cast Center Grate
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122GEN WB01K10008
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152CAP BURNER ASM (15K)
153WB29X43469 GE Burner Cap 18K
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10062 GE Oven Surface Burner Base
157WB16T10038 GE Oven Main Head Burner
158GEN WB16K10053
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
368WB02K10112 GE Oven Bumper Blue
368WB2K15 GE Oven Grate Bumper
450ELECTRODE TOP
460WB16T10047 GE Range Burner 18K-Simmer Base
470WB09T10011 GE Oven Spring Igniter
480WB02T10323 GE Oven Igniter Washer
781WB31K10220 GE Oven Griddle
970GEN WB07K10321
1130AIR DEVIATOR
