C2S980SEM6SS CONTROL PANEL & COOKTOP

C2S980SEM6SS CONTROL PANEL & COOKTOP

Written by

in

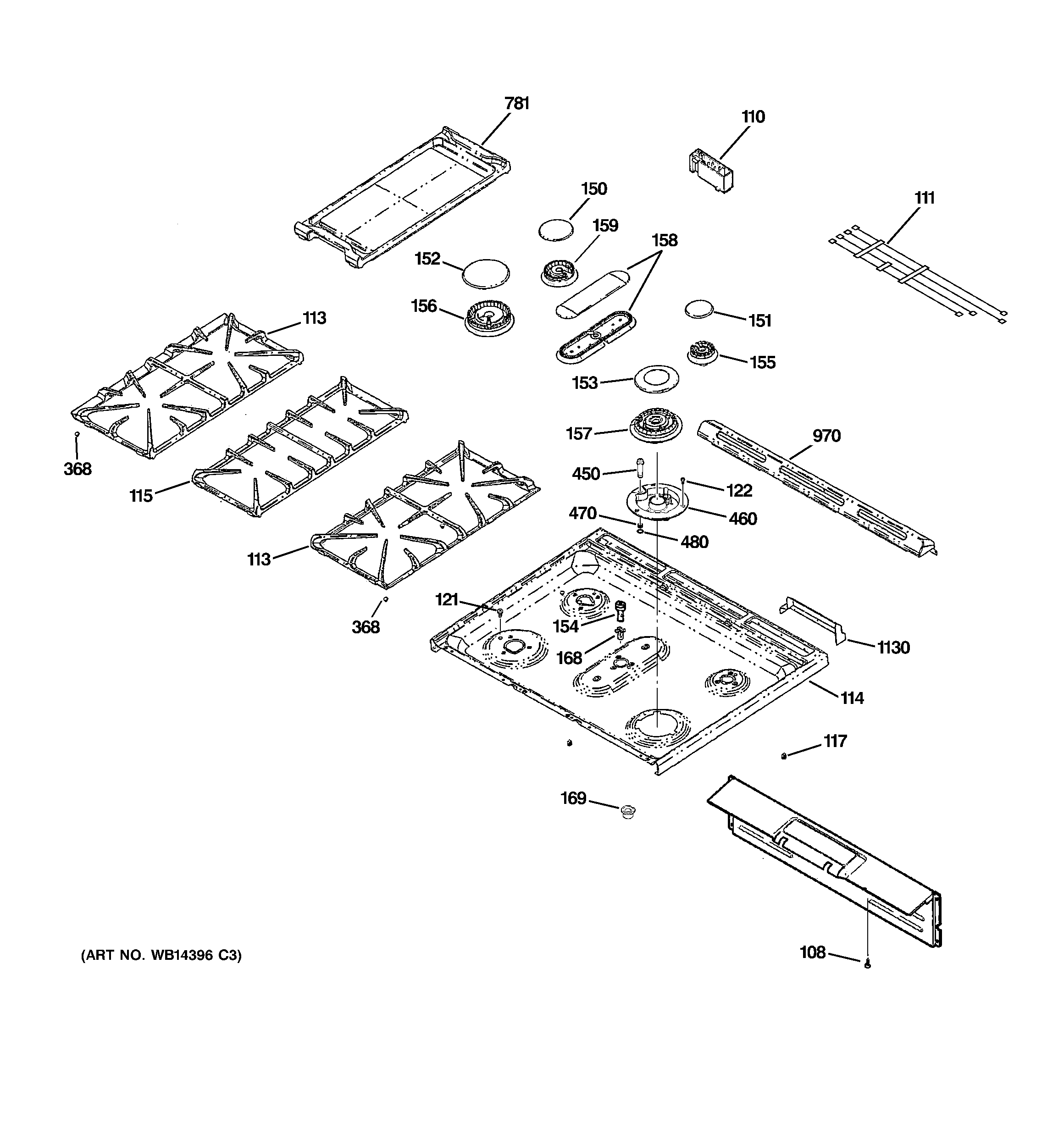

C2S980SEM6SS CONTROL PANEL & COOKTOP

Products

PositionProduct
108WB01K10030 GE Screw Assembly
110WB13X26360 GE Oven Spark Module
111GEN WB18K10046
113WB31K10219 GE Oven Cast Side Grate
114RANGETOP
115WB31K10218 GE Oven Cast Center Grate
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152CAP BURNER ASM (15K)
153WB29X43469 GE Burner Cap 18K
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10062 GE Oven Surface Burner Base
157WB16T10038 GE Oven Main Head Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10045
368WB02K10112 GE Oven Bumper Blue
368WB2K15 GE Oven Grate Bumper
450ELECTRODE TOP
460WB16T10047 GE Range Burner 18K-Simmer Base
470WB09T10011 GE Oven Spring Igniter
480WB02T10323 GE Oven Igniter Washer
781WB31K10220 GE Oven Griddle
970GEN WB07K10336
1130VENT MOTOR
