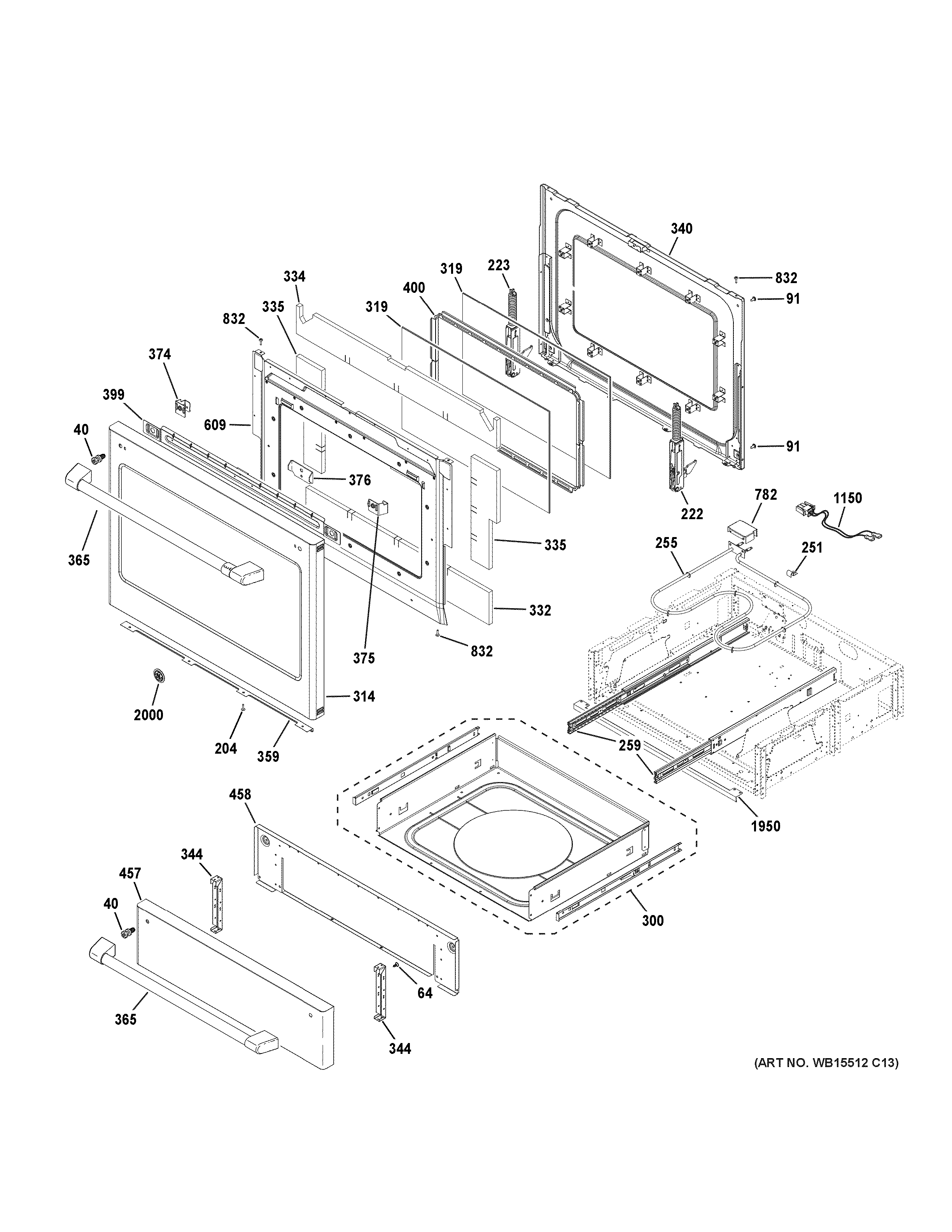

C2S986SEL2SS DOOR & DRAWER PARTS

C2S986SEL2SS DOOR & DRAWER PARTS

Written by

in

C2S986SEL2SS DOOR & DRAWER PARTS

Products

PositionProduct
40WR01X11007 GE Refrigerator Fastener Door Handle
64SCREW M4X8
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
222WB10X30271 GE Oven Door Hinge
223WB10X26769 GE Oven Door Hinge
251WB02K10023 GE Oven Heating Element Clamp
255WB44K10011 GE Oven Heating Element
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
314STAINLESS STEEL GLASS & PANEL DOOR
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
334WB35X20077 GE Door Insulation
335WB35K10222 GE Oven Insulation
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
359WB07X28885 GE Range Barrier Door
365WB15X31680 GE Range Stainless Steel Handle
374WB34X31703 GE Bracket Fastener
375WB34X31701 GE Fastener Bracket
376WB34X31739 GE Bracket Backer
399WB34X31702 GE Panel Backer Vent
400WB34X28742 GE Window Frame Assembly
457WB56X31644 GE Oven Stainless Steel Drawer Panel
458WB56X29436 GE Drawer Liner Oven
609WB34X24749 GE Door Guard
782WB34K10128 GE Heating Element Cover
832WR01X10065 GE Screw
1150HARNESS HIDDEN BAKE
1950WB01K10072 GE Oven Front Bottom Trim
2000WB02X29479 GE Oven Badge Assembly
