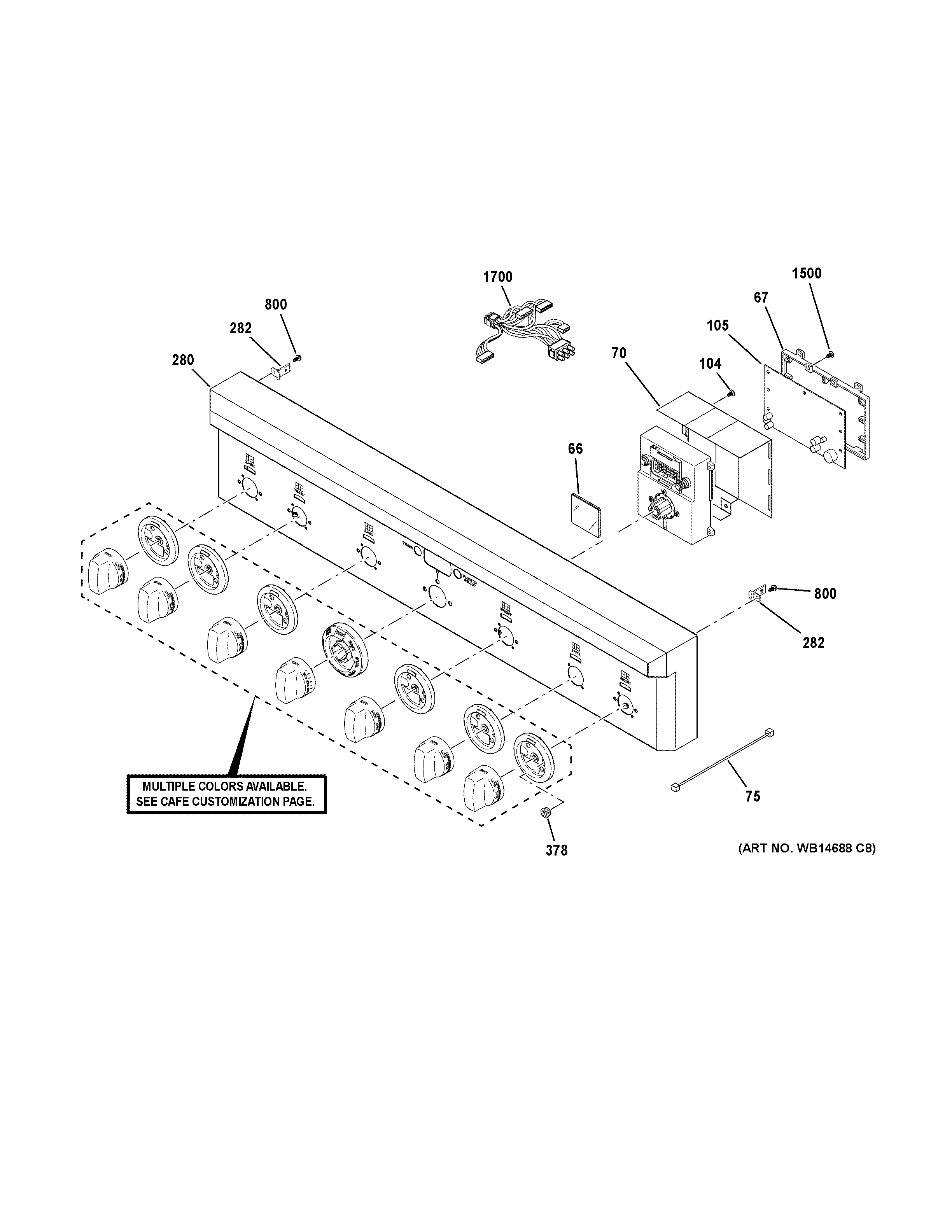

C2Y366P2M1S1 CONTROL PANEL

C2Y366P2M1S1 CONTROL PANEL

Written by

in

C2Y366P2M1S1 CONTROL PANEL

Products

PositionProduct
66WB57K10134 GE Glass Display
67WB02K10213 GE Control Bracket
70WB24K10048 GE Oven Encoder Assembly
75WB18K10085 GE Harness
104WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
105WB27K10458 GE Oven Control Display Module
280WB36X31796 GE Stainless Steel Control Panel
282WB02K10211 GE Range Bracket Control Panel
378WB02K10217 GE Bushing Bezel
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1500WB01T10016 GE Oven Screw 8-18 AB Hex
1700WB24K10063 GE Oven Dual Serial Harness
