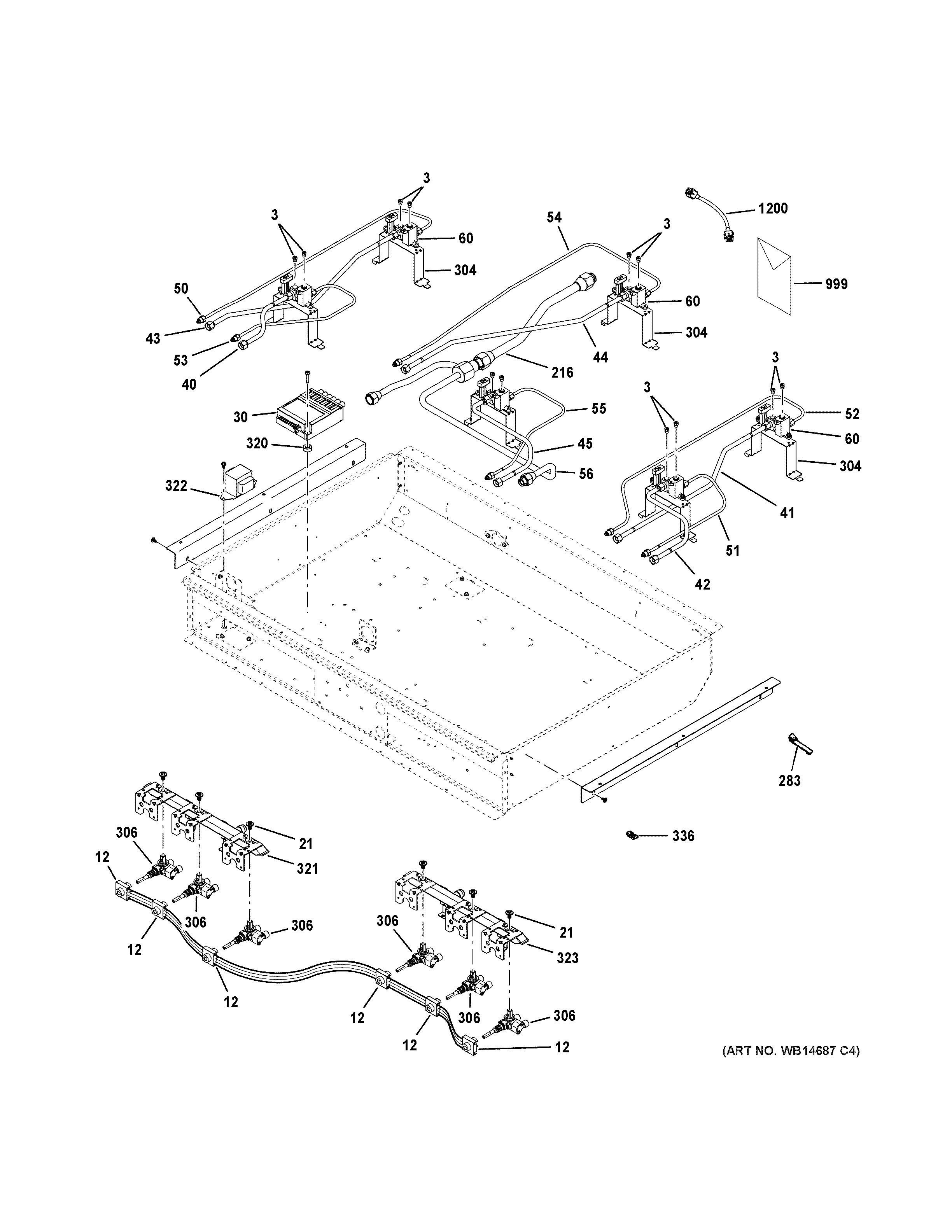

C2Y366P2M1S1 GAS & BURNER PARTS

Products

Position	Product
3	WB28T10159 GE Oven NG Simmer Orifice Spud
3	WB28T10155 GE Oven NG Main Orifice Spud
3	WB28T10117 GE Oven LP Main Orifice Spud
3	WB28T10118 GE Oven LP Main Orifice Spud
12	WB18X31492 GE Burner Box Harness
21	WB01K10067 GE Oven Screw 1/4" HD 20
30	MODULE SPARK
40	WB28K10492 GE Tube and Nut Assembly
41	WB28K10493 GE Oven Tube and Nut Assembly
42	WB28K10494 GE Oven Tube and Nut Assembly
43	TUBE AND NUT ASM
44	TUBE AND NUT ASM
45	TUBE AND NUT ASM
50	WB28K10496 GE Tube and Nut Assembly
51	WB28K10497 GE Oven Tube and Nut Assembly
52	WB28K10498 GE Oven Tube & Nut Assembly
53	WB28K10499 GE Tube and Nut Assembly
54	WB28K10545 GE Assembly Tube and Nut
55	TUBE AND NUT ASM
56	WB28K10547 GE Tee Swad Assembly
60	WB28T10114 GE Oven Injector Burner 18K
216	WB28K10537 GE Tube Regulator Assembly
283	GEN WB02K0038
304	WB02K10192 GE Range Injection Bracket
306	VALVE DUAL
320	WB1K10 GE Oven Grommet Handle
321	WB28K10503 GE Oven Pipe Manifold Assembly
322	WB27K10298 GE Oven Transformer
323	WB28K10527 GE Oven Pipe Manifold Assembly RT
336	GEN WB02X7066
999	WB02T10111 GE Cleaner Stainless Steel
999	PM INSTALL INSTRUCTIONS
999	WB02T10303 GE Cleaner Lubricant
999	PM INSTALL ANTI-TIP BRKT
999	PM ATTENTION INSTALLER
999	WB02K10359 GE Oven Mastic Tape 4 in x 2 in
999	PM OWNERS MANUAL
1200	WB18K10050 GE Oven Harness
