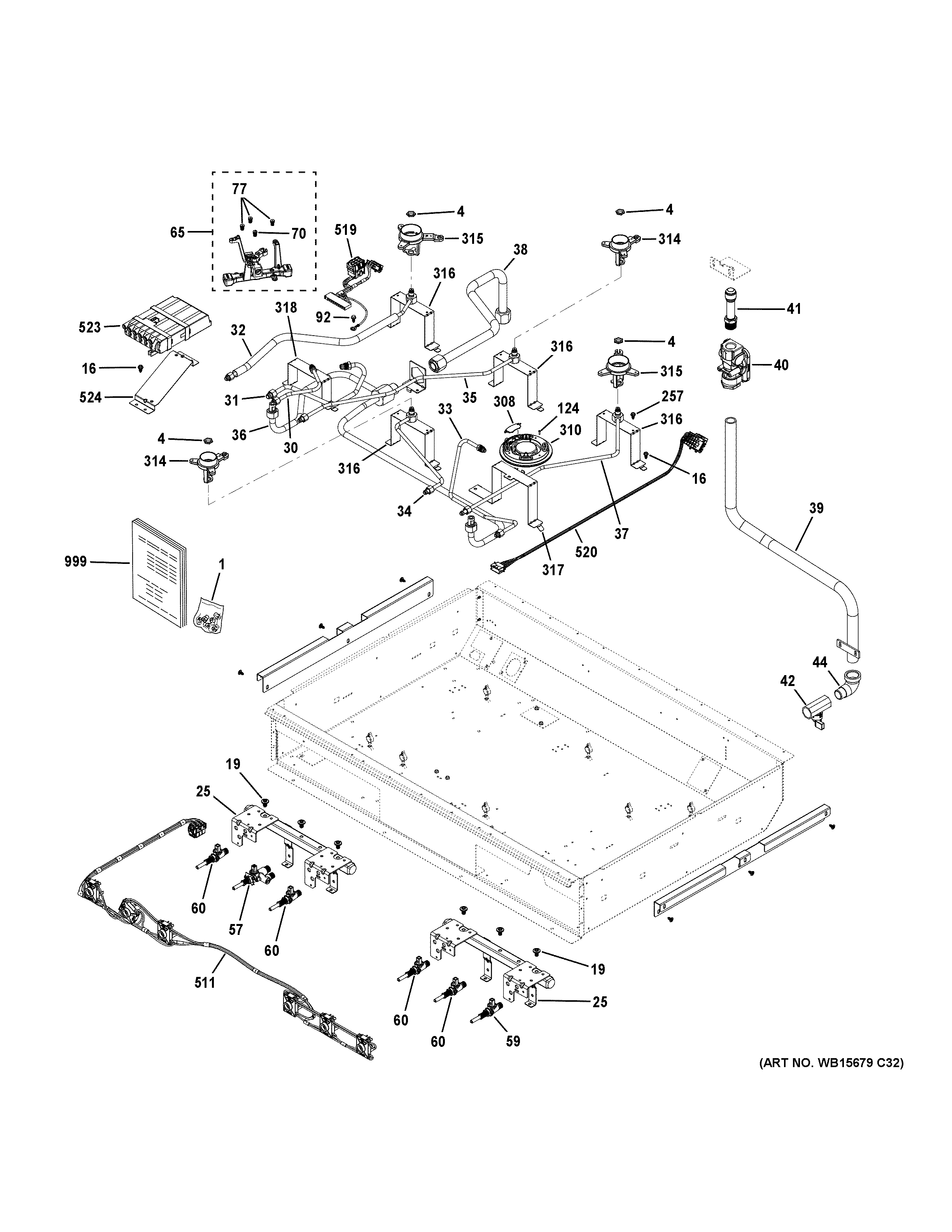

C2Y366P2T2S1 GAS & BURNER PARTS

C2Y366P2T2S1 GAS & BURNER PARTS

Written by

in

C2Y366P2T2S1 GAS & BURNER PARTS

Products

PositionProduct
1WB28X39728 GE High Altitude Natural Gas Conversion Kit
1WB28X39729 GE High Altitude Propane Burner
1WB28X40688 GE LP Conversion Kit
4WB01K10037 GE Oven Economic Nut
16SCREW
19WB01K10067 GE Oven Screw 1/4" HD 20
25PIPE MANIFOLD
30TUBE AND NUT SIMMER SUPPLY INJET MULTI R
31TUBE AND NUT MAIN SUPPLY INJET MULTI RIN
32WB28X39387 GE Burner Supply Tube
33WB28X39408 GE Simmer Supply Tube and Nut
34WB28X39416 GE Burner Front Supply Tube
35WB28X39371 GE Burner Rear Supply Tube
36DUAL PIPE MANIFOLD
37WB28X39401 GE Rear Burner Supply Tube
38TUBE MANIFOLD SUPPLY DUAL FUEL 36"
39PIPE SUPPLY
40WB21X39665 GE Gas Pressure Regulator
41MULTITUBE SUPPLY 30" & 36"
42WB19K10038 GE Oven Shut Off Valve
44WB02K10226 GE Elbow Street
57WB21X43803 GE Burner Valve 3R 310
59WB21X39510 GE Vortex Single Valve
60VALVE BURNER 270
65WB16X28867 GE Stove Burner Injector Assembly
70WB28X29600 GE Oven Orifice Spud
77WB28X28843 GE Oven Natural Gas Orifice Spud
92WB1X1261 GE Oven Screw
124WB01K10043 GE Oven Screw
257SCR 8-18 AB IHW 3/8 SN
308COVER INJET VORTEX
310WB16X39954 GE Vortex Injector Assembly
310LP INJET VORTEX ASM
314WB02X24726 GE Range Injector Large
315WB02X24725 GE Oven Inlet XLV2
316BRACKET INJET
317BRACKET INJET
318WB34X39746 GE Injector Bracket
511WB18X39311 GE Burner Box Harness
519WB18X40520 GE Spark Module Harness
520WB18X39330 GE Serial Harness
523WB27X28838 GE Oven Spark Module
524WB34X28667 GE Ignition Module Bracket
999WB02T10303 GE Cleaner Lubricant
999PM INSTALL ANTI-TIP BRKT
999PM ATTENTION INSTALLER
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PRINTED ONLYMINI MANUAL AND WIRING
