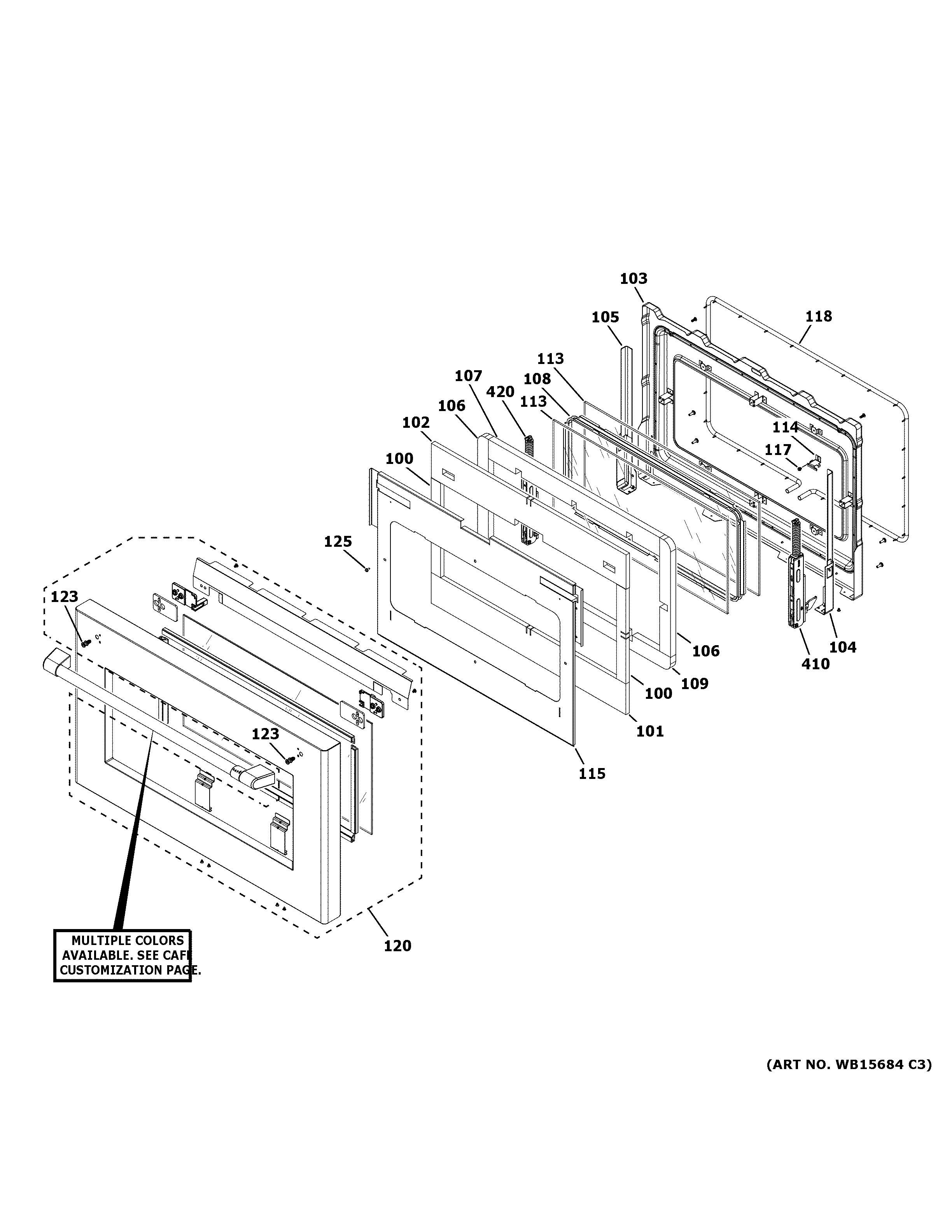

C2Y366P3T2D1 DOOR ASSEMBLY

Products

Position	Product
100	FT INSUL DOOR SIDE
101	FT INSUL DOOR BTM 27"
102	FT INSUL DOOR TOP 27"
103	LINER OVEN DOOR
104	GUSSET DOOR RIGHT
105	GUSSET DOOR LEFT
106	RR INSUL DOOR SIDE
107	RR INSUL DOOR TOP 27"
108	WB34K10109 GE Window Spacer
109	RR INSUL DOOR BTM 27"
113	WB57K10138 GE Oven Door Glass
114	CLIP WINDOW
115	GUARD INSULATION
117	SCR 10-32 TR T 1/2 S
118	WB35X39591 GE Door Gasket
120	WB56X39846 GE Outer Door 36" Black
123	WR01X11007 GE Refrigerator Fastener Door Handle
125	WB01K10100 GE Screw 10-32 TRP 1/2"
410	WB10X39275 GE Right Door Hinge
420	WB10X39273 GE Left Door Hinge
