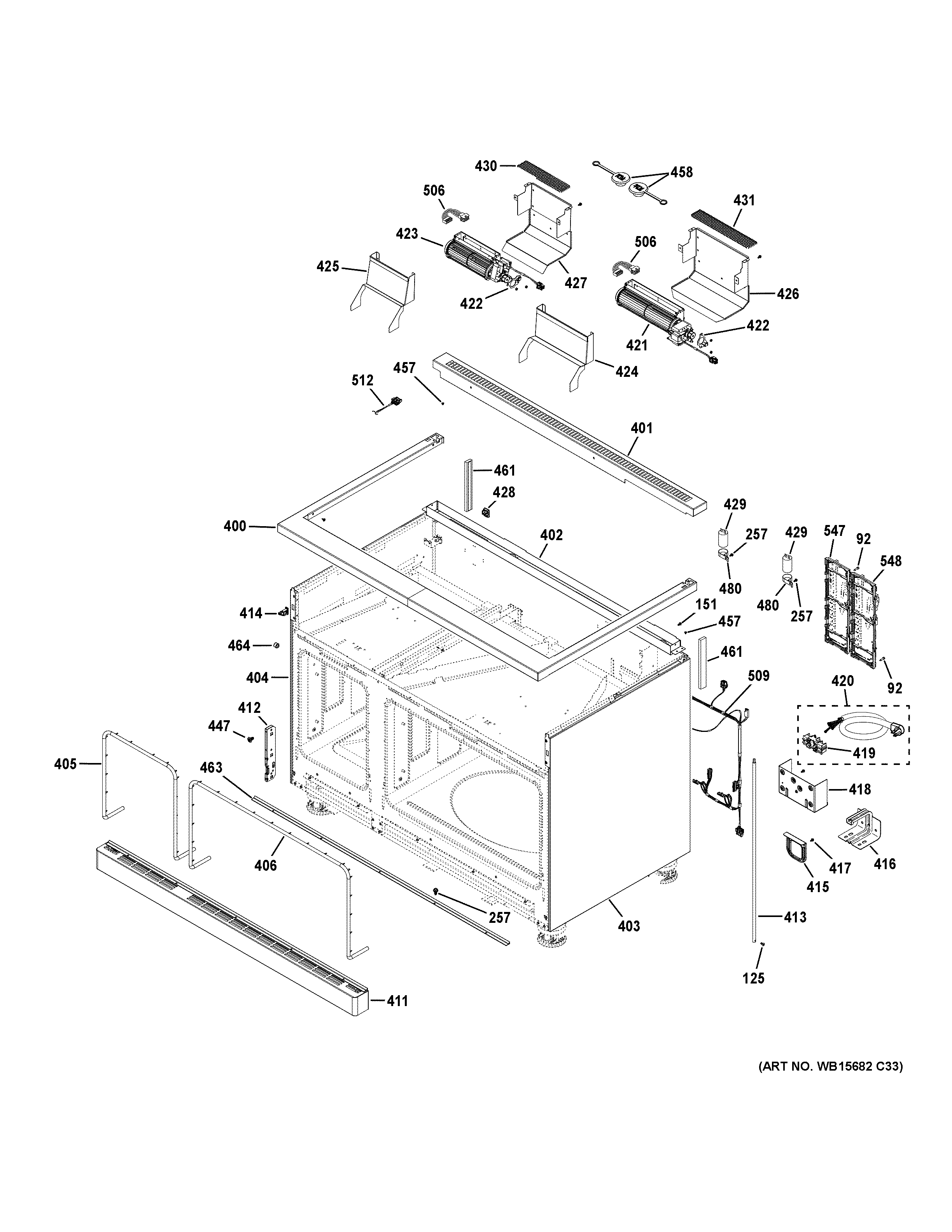

C2Y486P3T1D1 BODY PARTS

C2Y486P3T1D1 BODY PARTS

Written by

in

C2Y486P3T1D1 BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
125WB01K10100 GE Screw 10-32 TRP 1/2"
151WB01T10009 GE Screw 10-16 Shoulder Type A
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
400WB07X39467 GE Stainless Steel Bullnose
401WB07X39517 GE Stainless Steel Vent Trim 48
402DEFLECTOR SPILL
403STAINLESS STEEL PANEL SIDE RIG
404WB56X39521 GE Stainless Steel Side Panel
405WB35X39596 GE Front Frame Gasket
406WB35X39589 GE Front Gasket Frame
411DARK SLATE PANEL ACCES 48""
412WB10X39282 GE Receiver Hinge
413WB02X39924 GE Rod Extension
414PIN PILOT
415WB02K10224 GE Oven Anti-Tip Brace
416WB02K10237 GE Oven Anti-Tip Bracket
417WB1X536 GE Oven Screw
418BRACKET KNOCKOUT
419WB27X32415 GE Block Terminal Assembly
420WB18K10049 GE Assembly Terminal Block
421WB26X39878 GE Gas Blower Tangential
422WB27X28659 GE Oven Sensor Board
423WB26X39879 GE Blower Tangential
424SHROUND FAN
425SHROUND FAN
426SHROUD FAN BACK
427SHROUD FAN BACK
428BRACKET RJ45
429WB27T10662 GE Oven Capacitor
430SCREEN FAN
431SCREEN FAN
447WB1X500D GE Oven Screw Package
457WB01X26995 GE Oven Screw 8-18 AB X 5/16
458PLUG SPILL GUARD
461SPACER
463STAINLESS STEEL BARRIER DOOR 48"
464WB02X28738 GE Oven Front Frame Bumper
480CLAMP CAPACITOR
506WB18X39341 GE Board Sensing Harness
509HARNESS SERIAL RELAY
512HARNESS EXTENSION RJ45
547CONTROL RC17 COMPANION ASM
548CONTROL RC17 MAIN ASM
