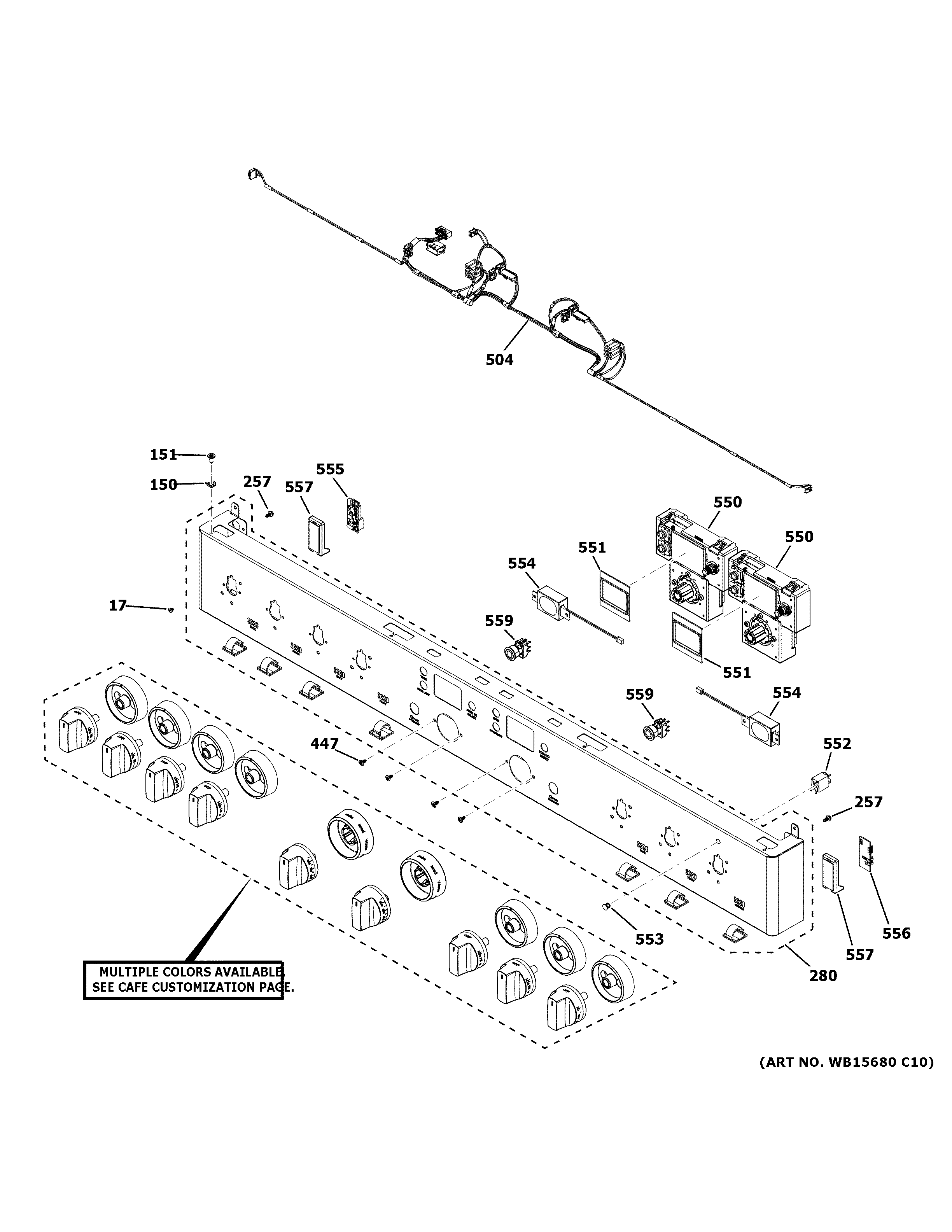

C2Y486P3T1D1 CONTROL PANEL

C2Y486P3T1D1 CONTROL PANEL

Written by

in

C2Y486P3T1D1 CONTROL PANEL

Products

PositionProduct
17WB01K10002 GE Oven Screw 8-32
150SPRING WASHER
151WB01T10009 GE Screw 10-16 Shoulder Type A
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
280BLACK SLATE PANEL MANIFOLD 48"
447WB1X500D GE Oven Screw Package
504HARNESS SERIAL UI 48"
550WB27X39638 GE Cafe Encoder
551TRIM DISPLAY
552WB25K10002 GE Stove Oven Cooktop Pilot Lamp
553LENS
554WB27X33354 GE Speaker 70C 3W
555WH22X29461 GE A3 WiFi Board
556WB27X40327 GE Bluetooth Cat Module Assembly
557WB02X20265 GE Transceiver Housing
559WB24X39913 GE Oven Start Switch
