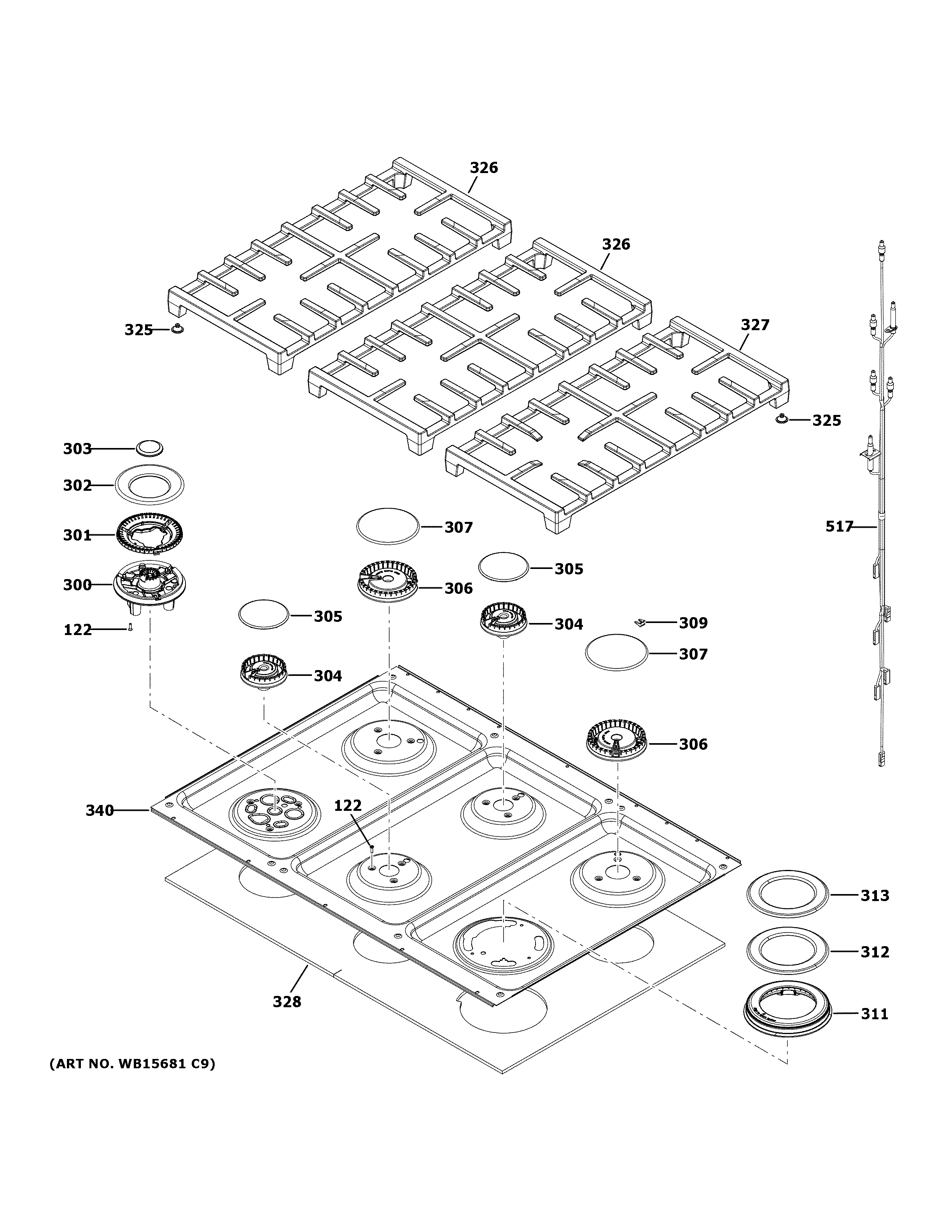

C2Y486P3T1D1 COOKTOP

Products

Position	Product
122	WB01X24735 GE Oven CKT Screw
300	WB16X28656 GE Oven Surface Burner Base
301	HEAD BURNER
302	WB29X28253 GE Oven Surface Burner Cap
303	WB16X28252 GE Oven Burner Cap Inner
304	BURNER LARGE V2
305	CAP BURNER ASM (15K)
306	WB16X24722 GE Oven Gas Range XL Surface Burner
307	WB29K10024 GE Burner Cap Oven
309	WB02X24976 GE Oven Igniter Clip V2
311	WB16X39892 GE Burner Head Assembly Vortex
312	WB29X39437 GE Burner Cap Vortex Black
313	WB29X39443 GE CP Vortex Burner Cap
325	WB02K10364 GE Oven Foot Grate
326	WB31X39269 GE Cafe Grate and Foot
327	WB31X39268 GE Grate and Foot Assembly
328	INSULATION TOP
340	WB32X39853 GE Maintop Dark Dorian
517	WB18X39352 GE Harness HV
