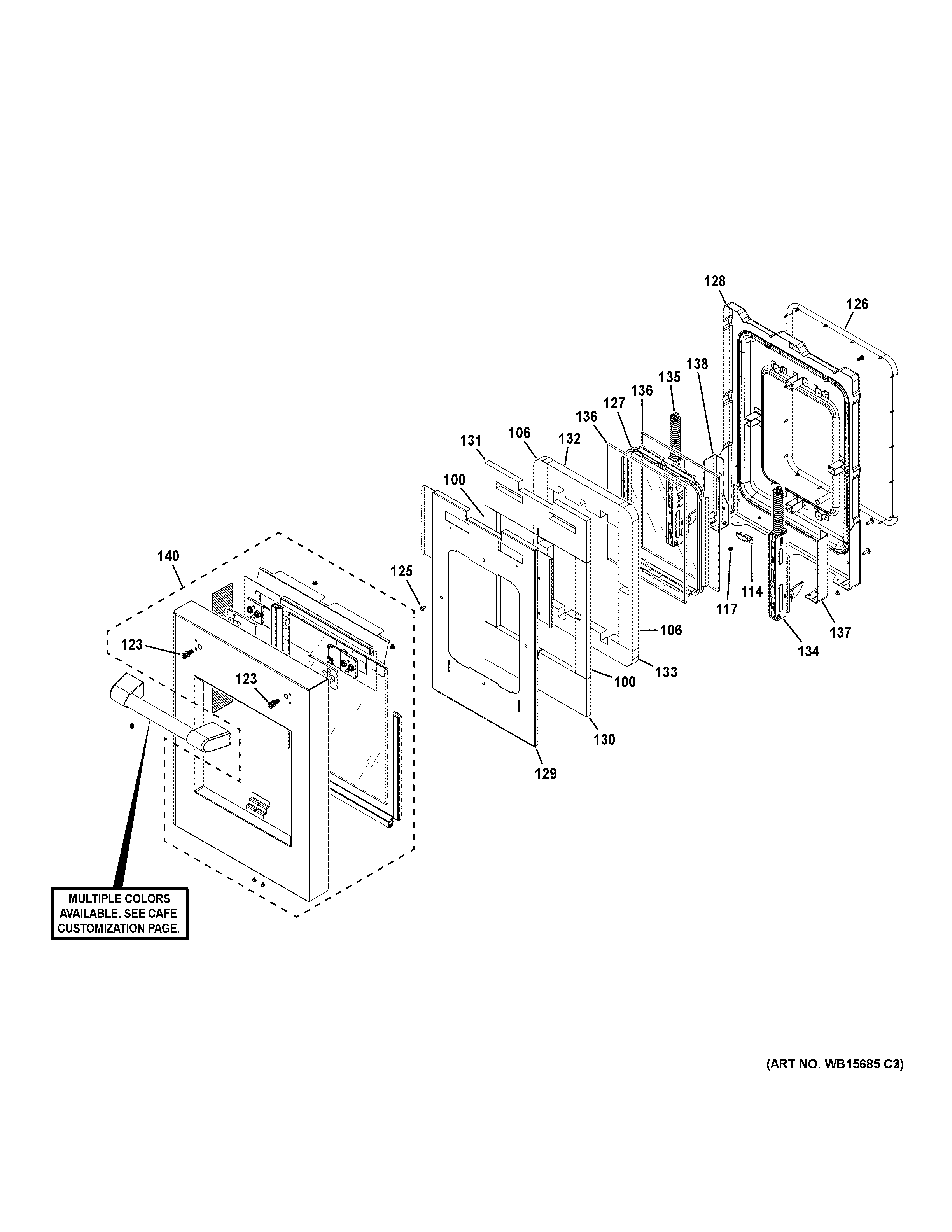

C2Y486P3T2D1 SMALL DOOR ASSEMBLY

Products

Position	Product
100	FT INSUL DOOR SIDE
106	RR INSUL DOOR SIDE
114	CLIP WINDOW
117	SCR 10-32 TR T 1/2 S
123	WR01X11007 GE Refrigerator Fastener Door Handle
125	WB01K10100 GE Screw 10-32 TRP 1/2"
126	GASKET DOOR
127	SPACER WINDOW
128	LINER OVEN DOOR
129	GUARD INSULATION
130	FT INSUL DOOR BTM 12"
131	FT INSUL DOOR TOP 12"
132	RR INSUL DOOR TOP 12"
133	RR INSUL DOOR BTM 12"
134	HINGE DOOR RIGHT
135	HINGE DOOR LEFT
136	WB57K10137 GE Glass Door Assembly
137	GUSSET DOOR RIGHT
138	GUSSET DOOR LEFT
140	BLACK SLATE OUTER DOOR SMALL
