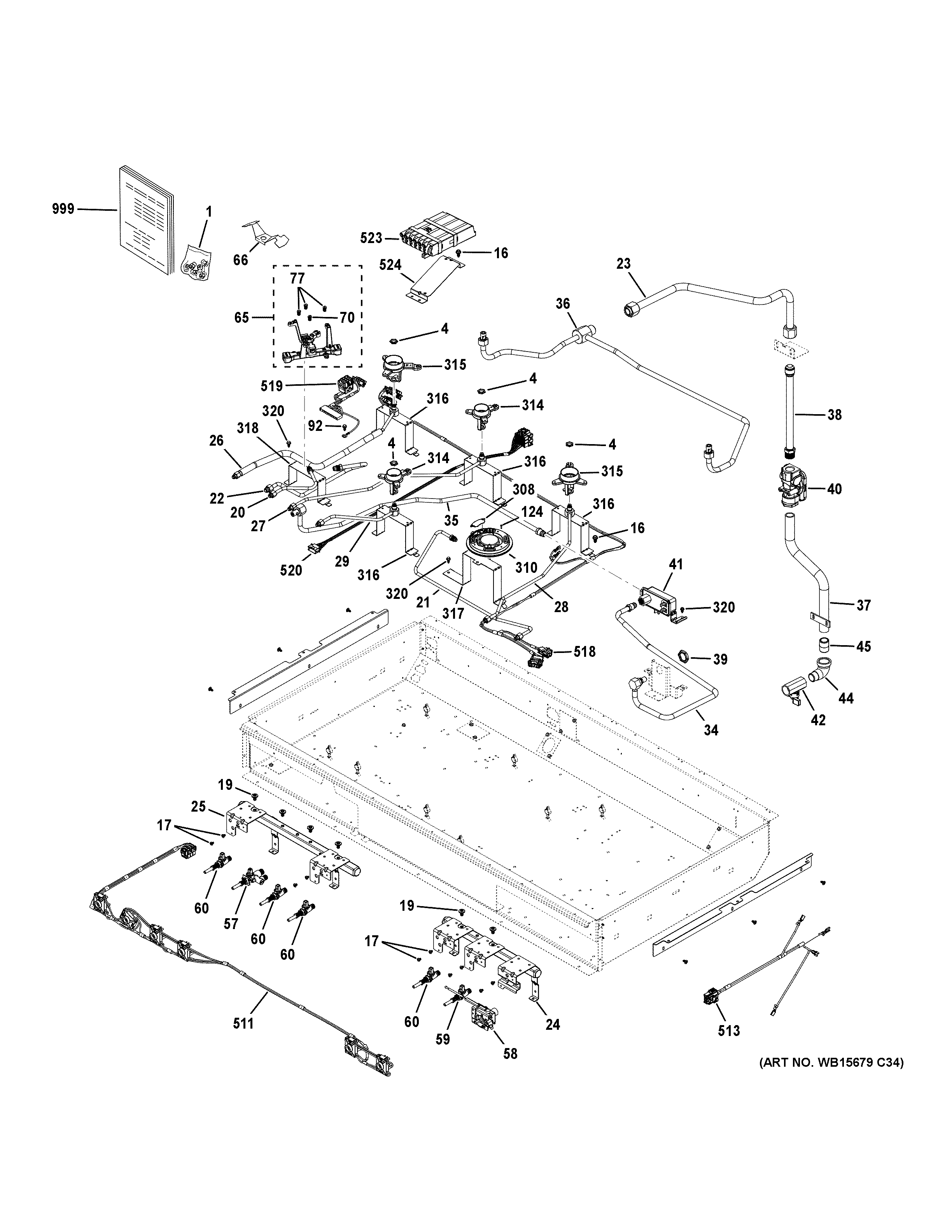

C2Y486P4T2W2 GAS & BURNER PARTS

C2Y486P4T2W2 GAS & BURNER PARTS

Written by

in

C2Y486P4T2W2 GAS & BURNER PARTS

Products

PositionProduct
1WB28X39728 GE High Altitude Natural Gas Conversion Kit
1WB28X39729 GE High Altitude Propane Burner
1WB28X40688 GE LP Conversion Kit
4WB01K10037 GE Oven Economic Nut
16SCREW
17WB01K10002 GE Oven Screw 8-32
19WB01K10067 GE Oven Screw 1/4" HD 20
20WB28X39412 GE Tube And Nut Simmer Supply Inj
21WB28X39425 GE Simmer Supply Tube and Nut
22WB28X39404 GE Tube And Nut Main Supply Injet
23TUBE MANIFOLD SUPPLY DUAL FUEL 48"
24PIPE MANIFOLD
25PIPE MANIFOLD
26WB28X39378 GE Rear Burner Supply Tube
27WB28X39391 GE Burner Rear Supply Tube
28WB28X39426 GE Rear Burner Supply Tube
29WB28X39393 GE Burner Supply Tube Front
34WB28X39402 GE Griddle Supply Tube and Nut
35TUBE AND NUT SUPPLY GRIDDLE SAFETY VA
36DUAL PIPE MANIFOLD
37PIPE SUPPLY
38MULTITUBE SUPPLY DUAL FUEL 48"
39NUT LOCK
40WB21X39665 GE Gas Pressure Regulator
41WB21X39606 GE Single Safety Valve
42WB19K10038 GE Oven Shut Off Valve
44WB02K10226 GE Elbow Street
45WB02K10228 GE Flare Fitting Adapter
57WB21X43803 GE Burner Valve 3R 310
58WB24X39677 GE Thermostat
59WB21X39510 GE Vortex Single Valve
60VALVE BURNER 270
65WB16X28867 GE Stove Burner Injector Assembly
66WB02X41668 GE Ground Strap
70WB28X29600 GE Oven Orifice Spud
77WB28X28843 GE Oven Natural Gas Orifice Spud
92WB1X1261 GE Oven Screw
124WB01K10043 GE Oven Screw
308COVER INJET VORTEX
310WB16X39954 GE Vortex Injector Assembly
310LP INJET VORTEX ASM
314WB02X24726 GE Range Injector Large
315WB02X24725 GE Oven Inlet XLV2
316BRACKET INJET
317BRACKET INJET
318WB34X39746 GE Injector Bracket
320WB01X39875 GE Screw M4 x 0.7 T10 TREATED
511WB18X40146 GE Burner Box Harness
513HARNESS THERMOSTAT EXT
518HARNESS THERMOSTAT
519WB18X40520 GE Spark Module Harness
520WB18X39330 GE Serial Harness
523WB27X28838 GE Oven Spark Module
524WB34X28667 GE Ignition Module Bracket
999PM INSTALL ANTI-TIP BRKT
999PM ATTENTION INSTALLER
999WB02T10303 GE Cleaner Lubricant
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PRINTED ONLYMINI MANUAL AND WIRING
