C2Y486P4T2W2 GRIDDLE ASSEMBLY

C2Y486P4T2W2 GRIDDLE ASSEMBLY

Written by

in

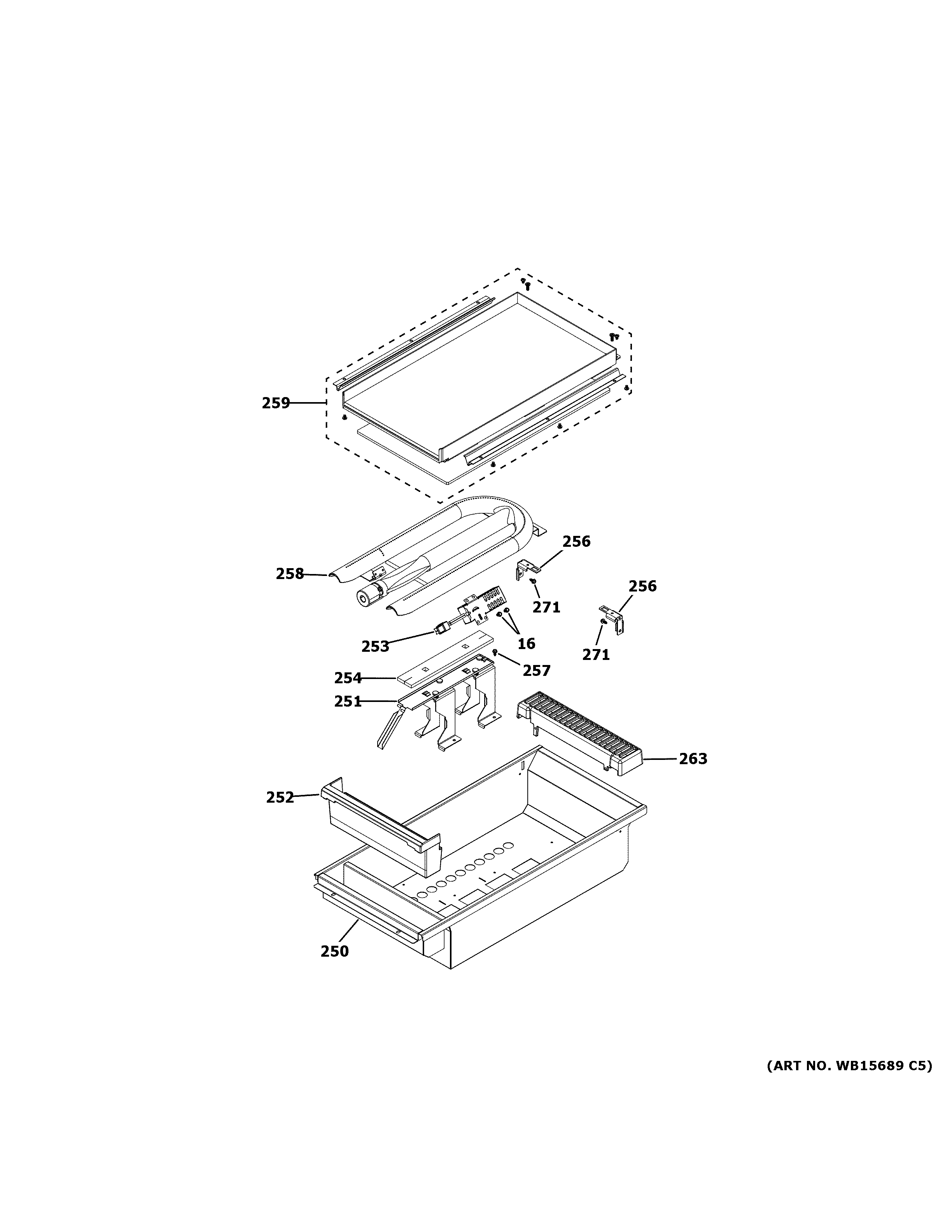

C2Y486P4T2W2 GRIDDLE ASSEMBLY

Products

PositionProduct
16SCREW
250GRIDDLE BODY WELD
251GRIDDLE TOWER ASSEMBLY
252WB49K10038 GE Oven Grease Trough Assembly
253WB18X39636 GE Igniter Glow Bar
254INSULATION BULB
256WB02K10208 GE Griddle Bracket
257WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
258BURNER GRIDDLE
259WB31X45066 GE Griddle Plate Assembly
263WB07K10418 GE Oven Griddle Vent
271WB1X1293 GE Oven Screw
