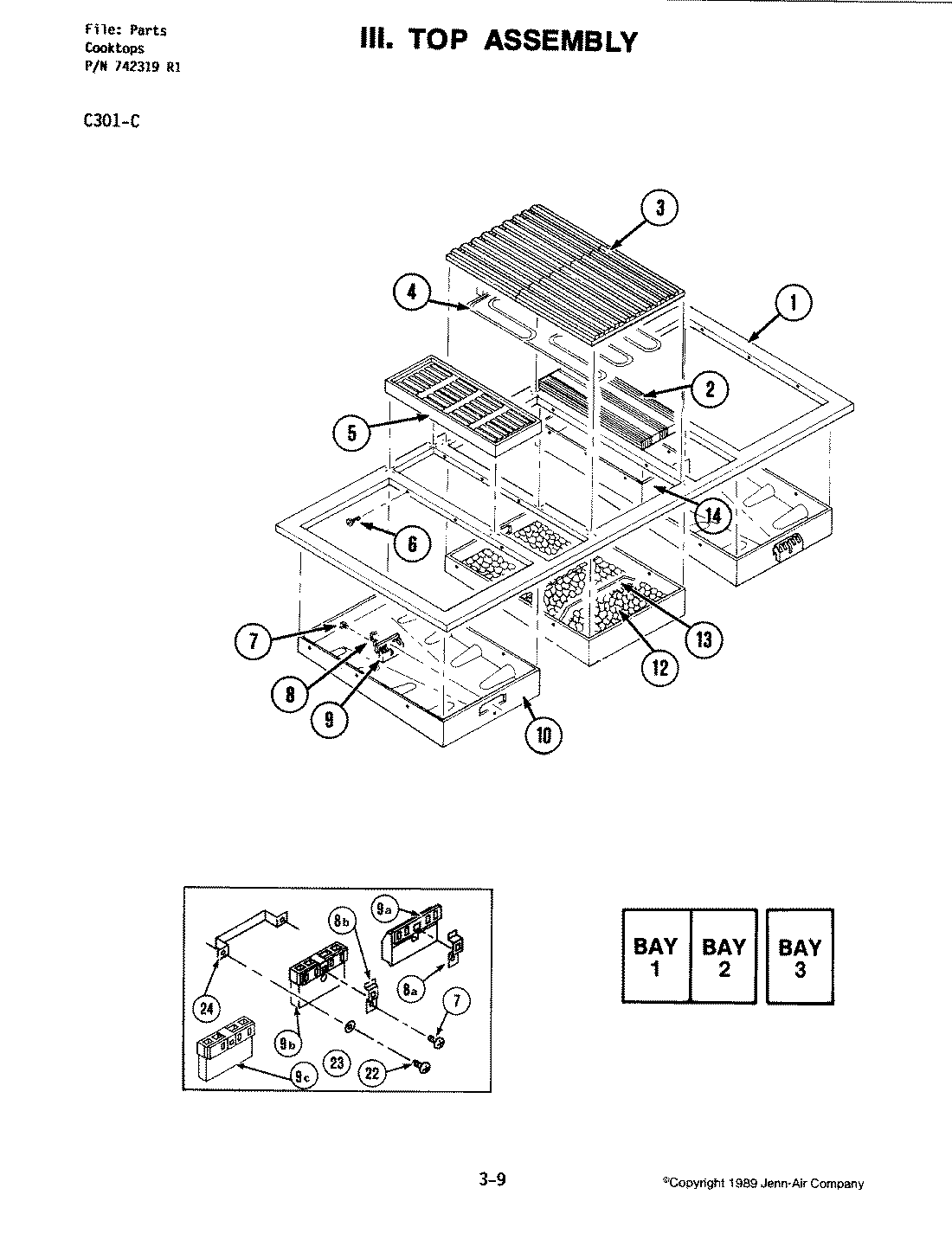

C301-C 04 – TOP ASSEMBLY (C301-C)
Written by
in
C301-C 04 – TOP ASSEMBLY (C301-C)
Products
Position
Product
1
MAY 701852
2
MAY 700729
3
MAY 707886
4
MAY 700714
5
MAY 700667
6
MAY Y707347
7
MAY Y707341
8
MAY Y702699
8
MAY 715121
9
WPY702434 Whirlpool Receptacle
9
MAY Y715120
10
MAY Y701490
10
MAY Y700850
10
MAY Y700849
10
MAY Y700848
10
MAY Y701491
10
MAY Y701492
10
MAY Y712019
10
MAY Y712017
10
MAY Y712015
10
MAY Y712014
10
MAY Y702042
10
MAY Y701953
10
MAY Y701899
10
MAY Y712020
10
MAY 712033
10
MAY 701954
10
MAY Y712030
10
MAY Y702043
10
MAY 701955
10
MAY Y712029
10
MAY Y712035
10
WP5708M005-60 Whirlpool Wire Harness
10
MAY 701937
10
MAY Y712034
10
WP5708M081-60 Whirlpool Wire Harness
12
MAY 708929
13
700819 Whirlpool Oven Element Support
14
BOX, UTENSIL
22
MAY Y707172
23
MAY Y707664
24
MAY Y702698
←
