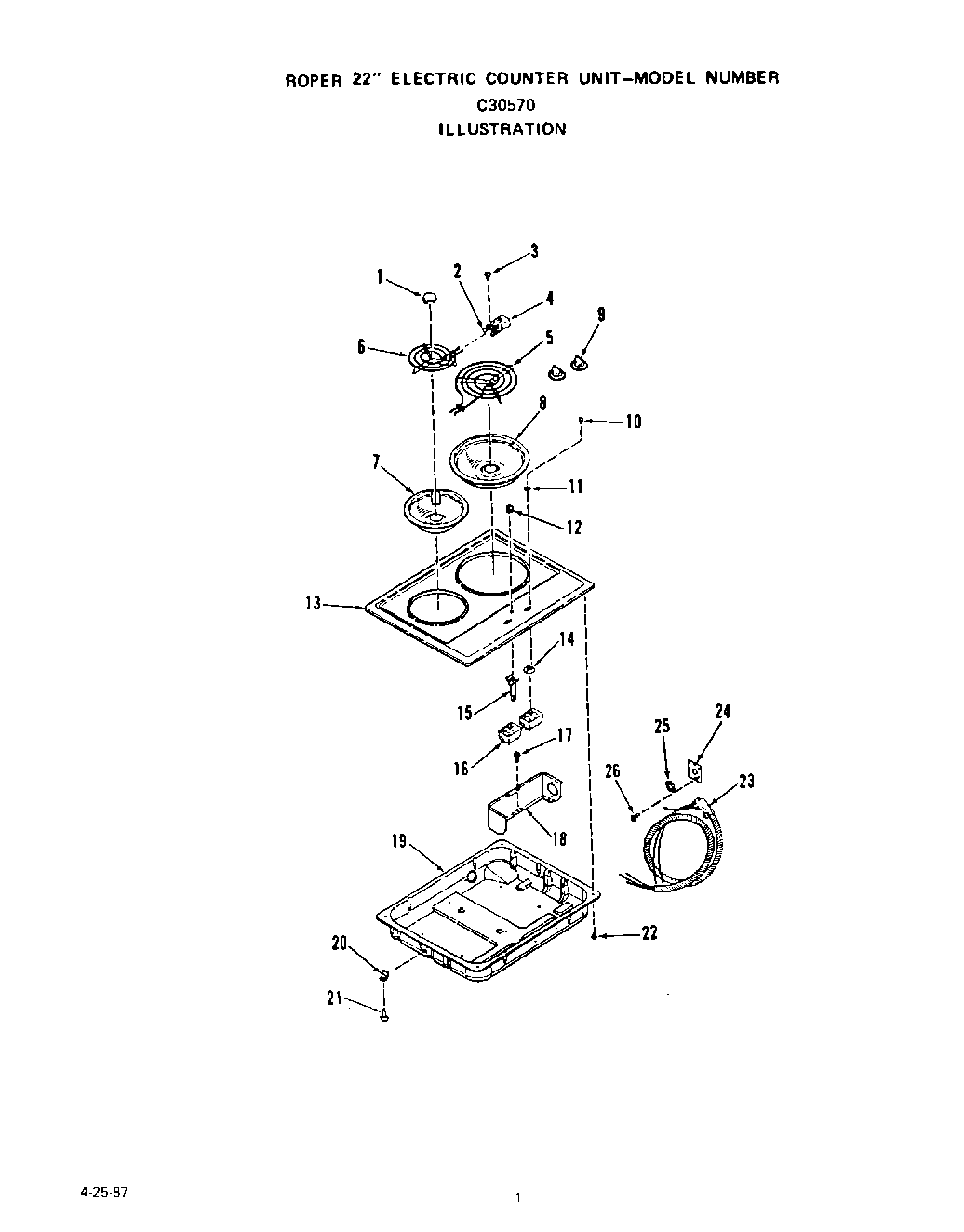

C3057X0 02 – ELEC COUNTER UNIT
Written by
in
C3057X0 02 – ELEC COUNTER UNIT
Products
Position
Product
1
Medallion (2 Req) All 2101 Models
2
Bracket-Term. Block (2 Req) All 2101 Mod.
3
Screw 7-32×5/16“(2 Req) All 2101 Models
4
Terminal Blcok w/Wires
5
8“ Surface Element
6
6“ Surface Element
7
Burner Bowl 8“
8
8“ Burner Bowl
9
Infinite Knob
10
Screw 8-32×1/4“
11
Washer
12
Lens-Indicator Light (2 Req)
13
Main Top (Chrome)
13
Main Top (Almond)
14
WPL 280157
15
Indicator Light
16
Infinite Control (Left)
16
Infinite Control (Right)
17
WPL 295850
18
Barrier
19
Burner Box
20
Retainer Clip
21
Screw 10-32×1“
22
Screw 10ABx1/2“
23
Harness Conduit Asm.
24
Plate (For Key 45)
25
Nut (For Key 45)
26
Screw 10-32×7/16“
←
