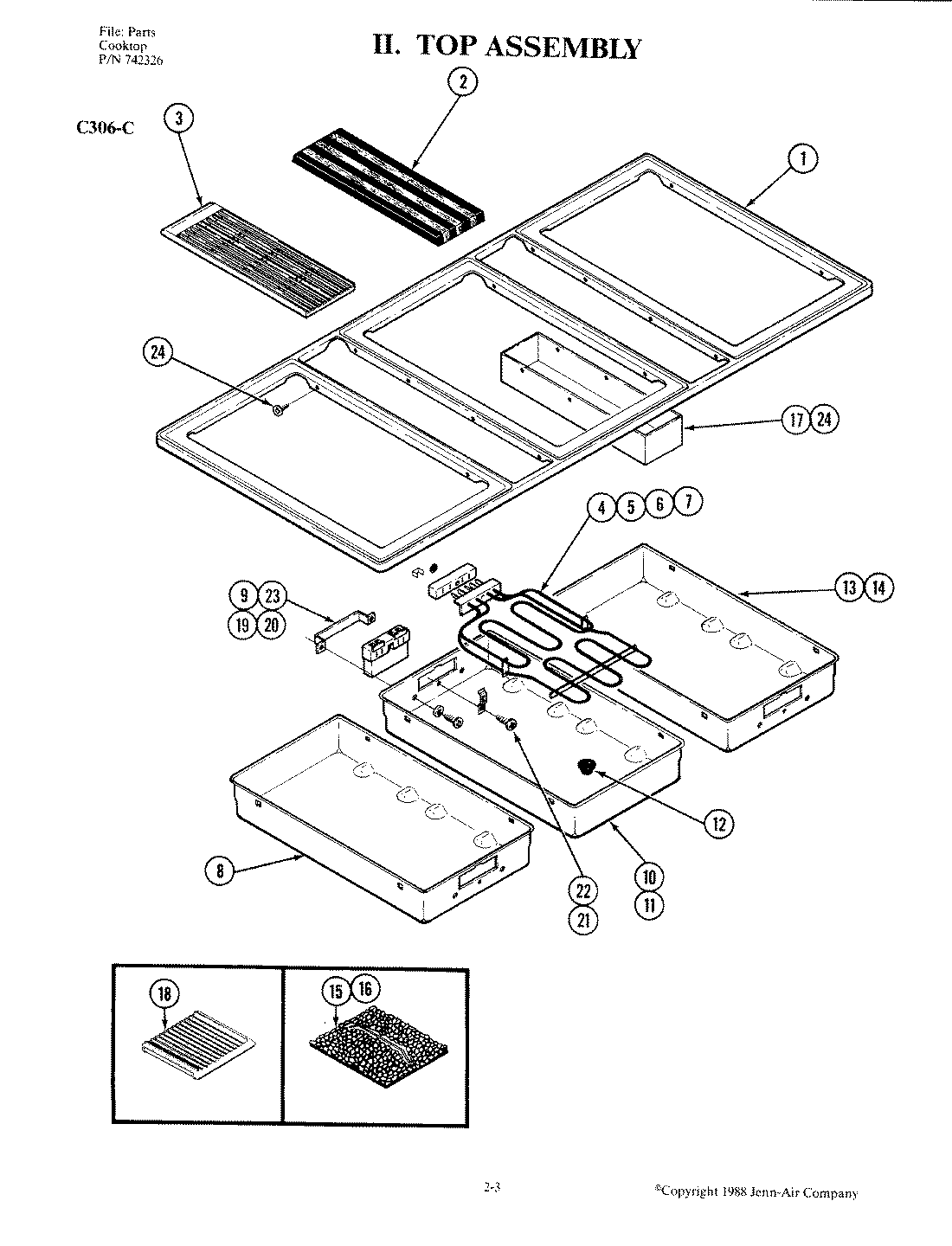

C306-C 04 – TOP ASSEMBLY (C306-C)

C306-C 04 – TOP ASSEMBLY (C306-C)

Written by

in

C306-C 04 – TOP ASSEMBLY (C306-C)

Products

PositionProduct
1MAY 701852
2MAY 704421
3MAY 703926
4MAY 703944
5MAY Y700450
6WPY708730 Whirlpool Terminal Block
7Y708862 Whirlpool Speed Nut
8MAY Y712197
8MAY Y712431
8MAY Y712030
10MAY Y712202
10MAY Y712199
10MAY Y712029
10MAY Y701956
10WP5708M007-60 Whirlpool Wire Harness
12MAY Y702825
13MAY Y712439
13MAY Y712437
13MAY Y712203
13MAY Y712200
13MAY 701955
14WPY702434 Whirlpool Receptacle
15MAY 708929
16700819 Whirlpool Oven Element Support
17BOX, UTENSIL
18MAY 703905
19MAY Y702699
20MAY Y707341
21MAY Y707664
22MAY Y707172
23MAY Y702698
24MAY Y707347
