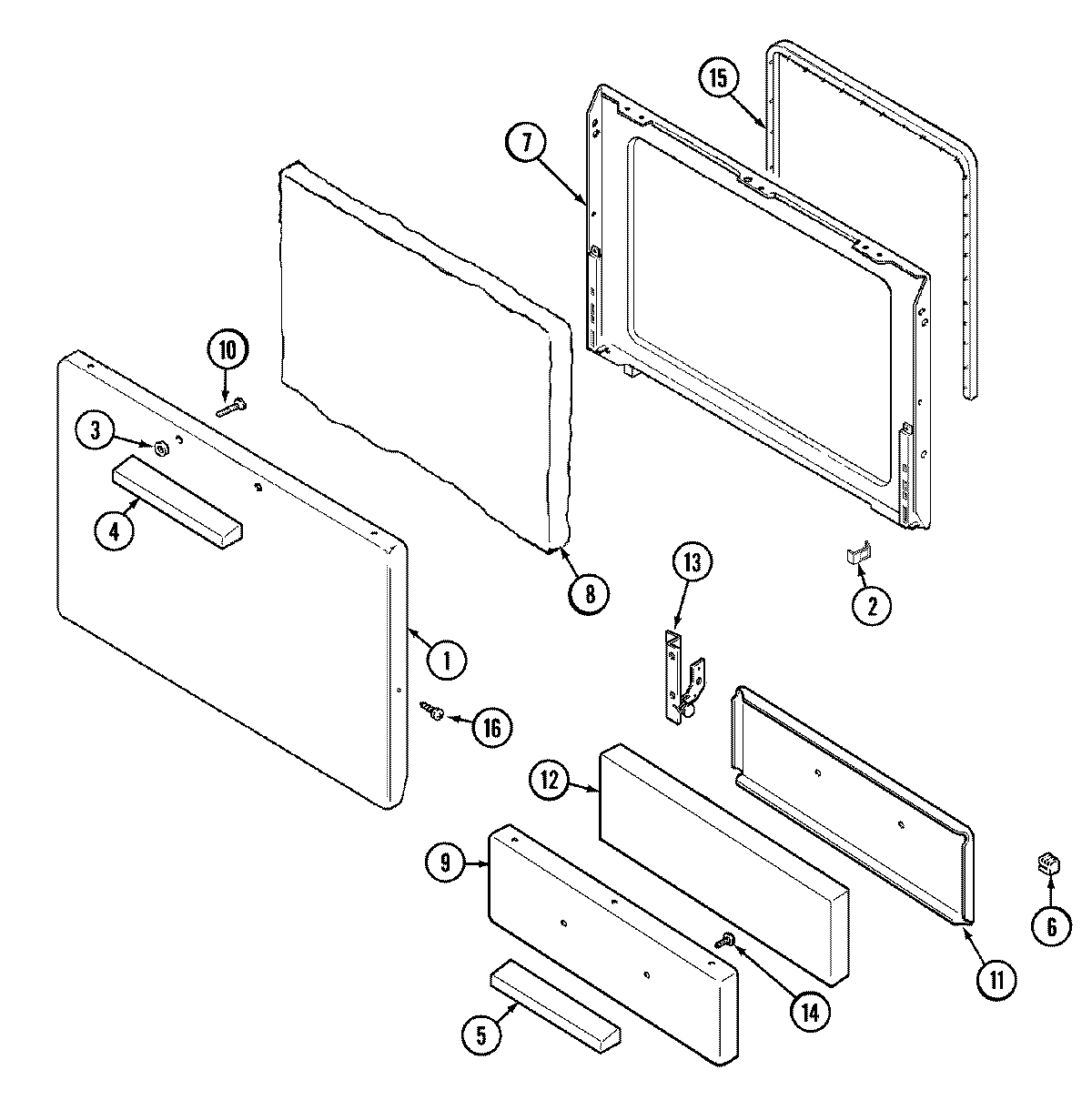

C31000PAT 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74005048
2	CLIP, DOOR
3	MAY 8010P084-60
5	MAY 74001820
6	MAY 8016P015-60
7	MAY 74003240
7	NUT, SNAP (ROUND-WHT)
8	MAY 4804F050-60
9	MAY 74005046
10	WP3387230 Whirlpool Screw
11	MAY 74002397
11	MAY 74007553
12	MAY 74001814
13	MAY 74002398
13	SCREW
14	74002481 Whirlpool Screw
15	WP7212P043-60 Whirlpool Oven Door Seal Gasket
