C31000PAW 05 – TOP ASSEMBLY – Aparts

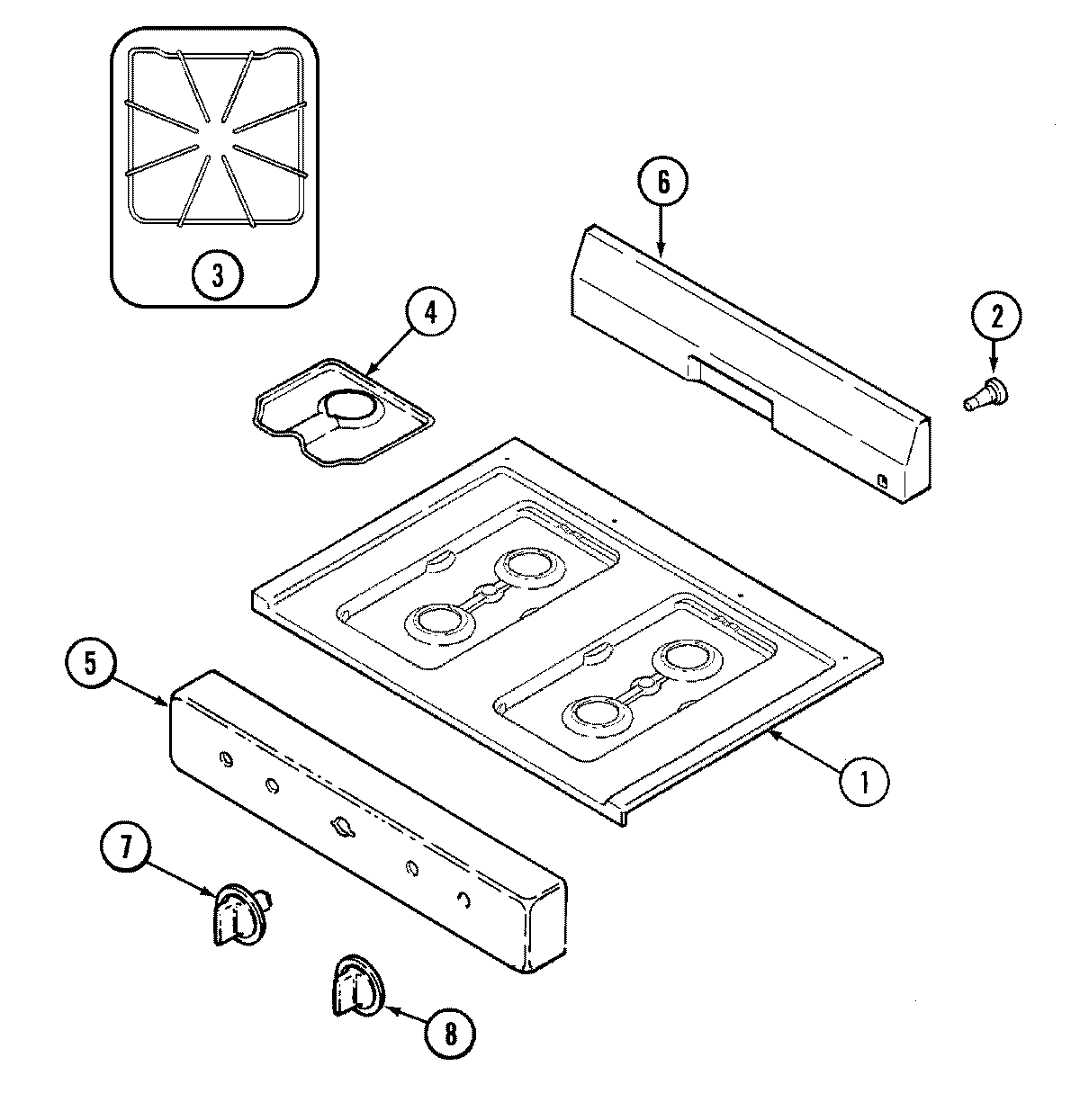

C31000PAW 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 16008701
NI	MAY 8113P434-60
NI	MAY 16010161
NI	MAY 74002355
1	MAY 2001F098-81
2	SPACER, HINGE (MAIN TOP)
3	WP7518P464-60 Whirlpool Burner Grate
3	MAY 2003W026-00
4	MAY 5401A433-60
5	MAY 74002494
5	MAY 7101P311-60
6	SCREW
6	MAY 74002354
7	MAY 74010131
7	WP74002419 Whirlpool Thermal Knob
8	WP74002353 Whirlpool Control Knob
