C31000PAWP 01 – BODY

C31000PAWP 01 – BODY

Written by

in

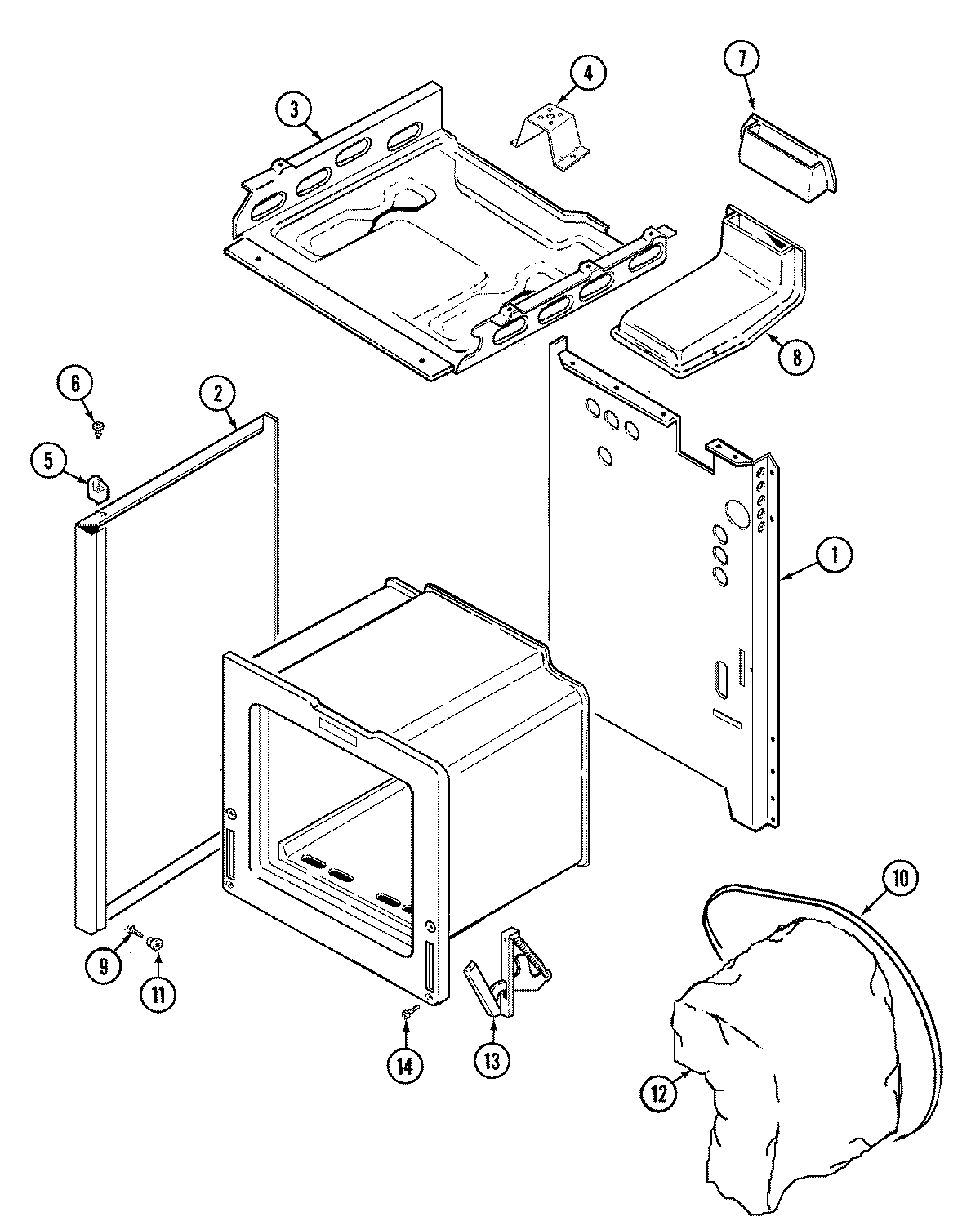

C31000PAWP 01 – BODY

Products

PositionProduct
1WP3400074 Whirlpool Dishwasher Screw
1MAY 74005216
1MAY 74006548
1GROMMET
1MAY 8008P021-60
2MAY 74003236
3MAY 74002357
4MAY 74002427
4MAY 74010150
4SCREW
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74002366
8MAY 74002367
8WP74003976 Whirlpool Screw
9MAY 74001449
9W11693756 Whirlpool Screw Assembly
10MAY 74002369
11MAY 8004P024-60
12MAY 74002634
12MAY 74002370
13W10876639 Whirlpool Door Hinge Assembly
14SCREW (10-24X5/16-NI)
