C31100SAAP 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

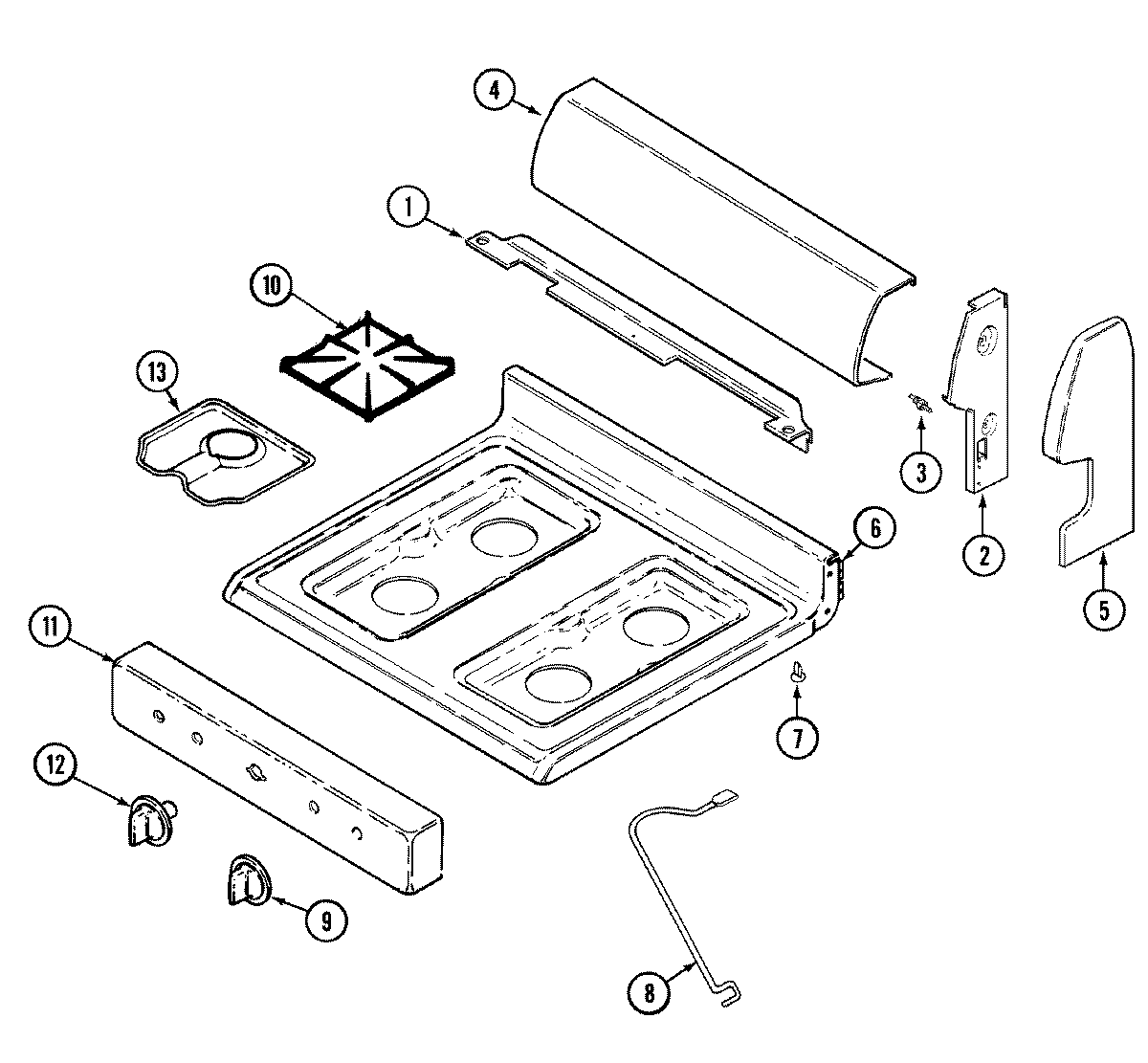

C31100SAAP 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 74002355
NI	MAY 16010161
NI	MAY 16008701
1	MAY 74002409
1	MAY 74002401
2	W10828565 Whirlpool Screw
2	MAY 74002403
2	MAY 74002402
3	MAY 74002404
4	WP98008545 Whirlpool Screw
4	MAY 74002430
4	SCREW
5	SCREW (8ABX1/2``-BLK)
5	MAY 74002406
5	MAY 74002407
5	MAY 74002432
6	MAY 74002422
7	MAY 8016P015-60
8	MAY 74001170
9	WP74002353 Whirlpool Control Knob
10	MAY 2003W026-00
11	MAY 74002411
12	WP74002419 Whirlpool Thermal Knob
13	MAY 5401A433-60
