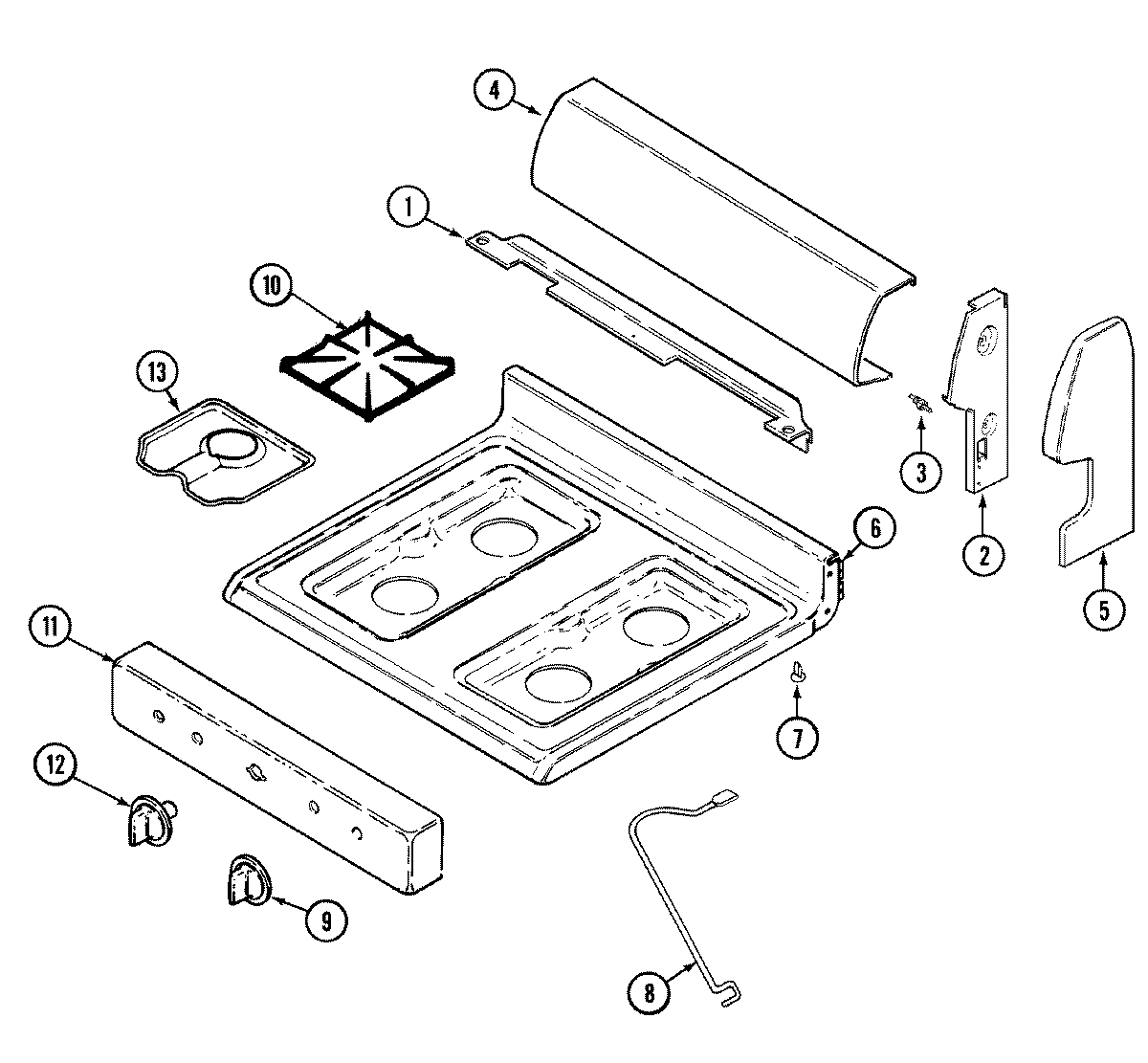

C31100SAT 01 – CONTROL PANEL/TOP ASSEMBLY

C31100SAT 01 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

C31100SAT 01 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 8113P434-60
NI	MAY 16008701
NI	MAY 16010161
NI	MAY 74004367
1	MAY 74005047
2	MAY 74002402
2	MAY 74002403
2	W10828565 Whirlpool Screw
3	MAY 74002404
4	MAY 74002430
4	WP98008545 Whirlpool Screw
4	SCREW
5	MAY 74002432
5	SCREW (8ABX1/2“-BLK)
5	MAY 74002406
5	MAY 74002407
6	MAY 74005049
7	MAY 8016P015-60
8	MAY 74004084
9	WP74002353 Whirlpool Control Knob
10	WP2003X030-00 Whirlpool Burner Grate
11	MAY 74002411
11	MAY 7109P015-60
11	MAY 7101P074-60
12	WP74002419 Whirlpool Thermal Knob
13	MAY 5401A433-60
