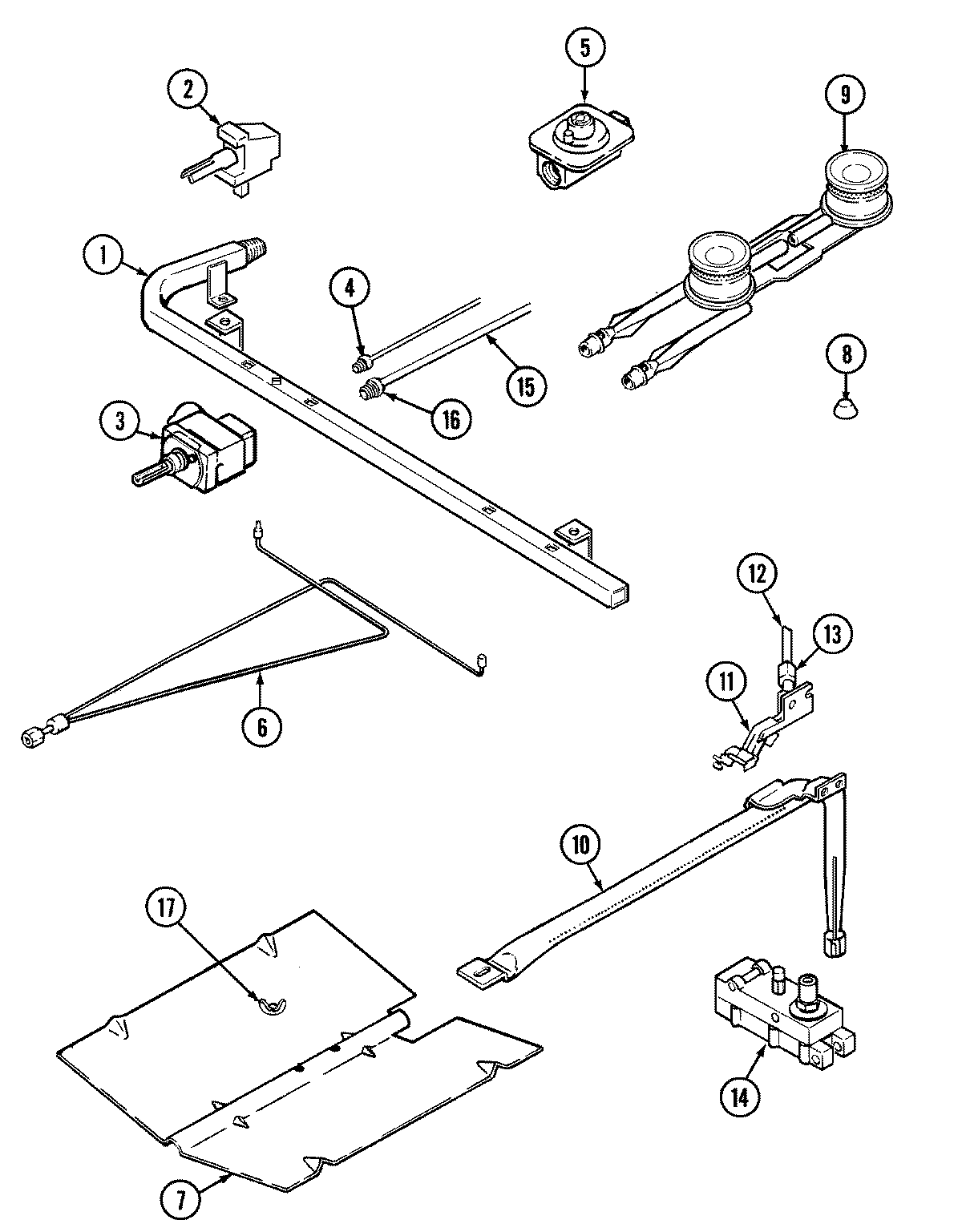

C31100SAT 03 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 74002424
2	MAY 74002383
2	WP8273096 Whirlpool Screw
3	MAY 74002425
3	MAY 7101P010-60
4	MAY 1555222
5	MAY 7510P002-60
6	MAY 7103P128-60
6	MAY 74002426
7	MAY 74002393
8	MAY 74002435
9	MAY 74003332
9	SCREW (8BX3/8-NI)
10	MAY 74002434
10	SCREW
11	MAY 7432P068-60
11	SCREW (10-24X5/16-NI)
12	MAY 3414F108-44
13	MAY 1555261K
14	W11693756 Whirlpool Screw Assembly
14	MAY 74002428
15	MAY 12001100
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
