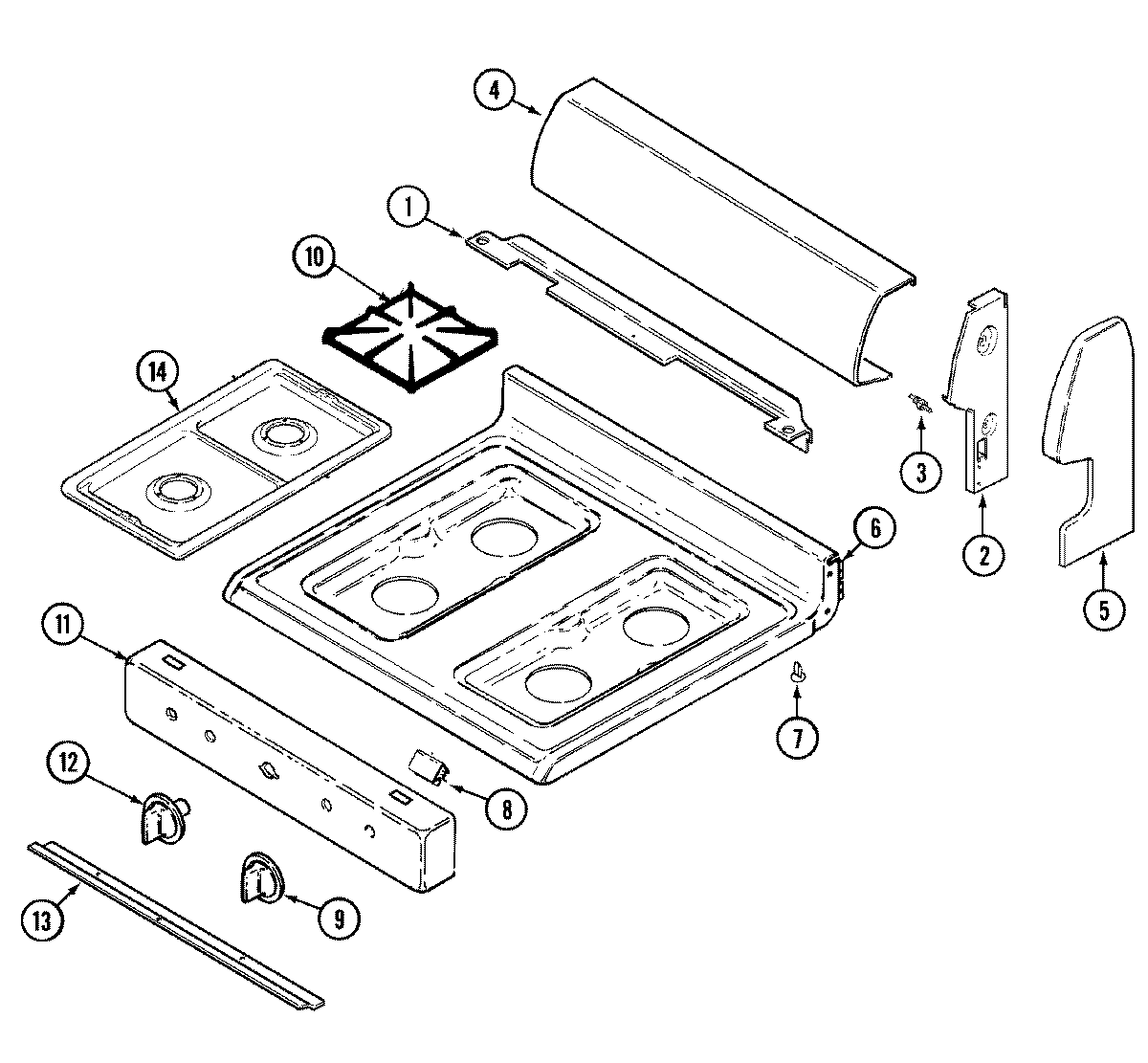

C31103SAA 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 16010161
NI	MAY 74002355
NI	MAY 16008701
1	MAY 74002401
1	MAY 7101P209-60
1	MAY 74002409
2	MAY 74002402
2	MAY 74002403
3	MAY 74002404
4	MAY 74002430
4	WP98008545 Whirlpool Screw
5	MAY 74002407
5	SCREW (8ABX1/2“-BLK)
5	MAY 74002432
5	MAY 74002406
6	MAY 74002441
7	MAY 8016P015-60
8	MAY 7112P087-60
9	WP74002353 Whirlpool Control Knob
10	MAY 2003W026-00
11	MAY 74002411
11	MAY 7101P074-60
11	SCREW (8BX3/8-NI)
11	MAY 7109P015-60
12	WP74002352 Whirlpool Thermostat Knob
13	SCREW
13	MAY 74002447
14	MAY 5401A452-60
