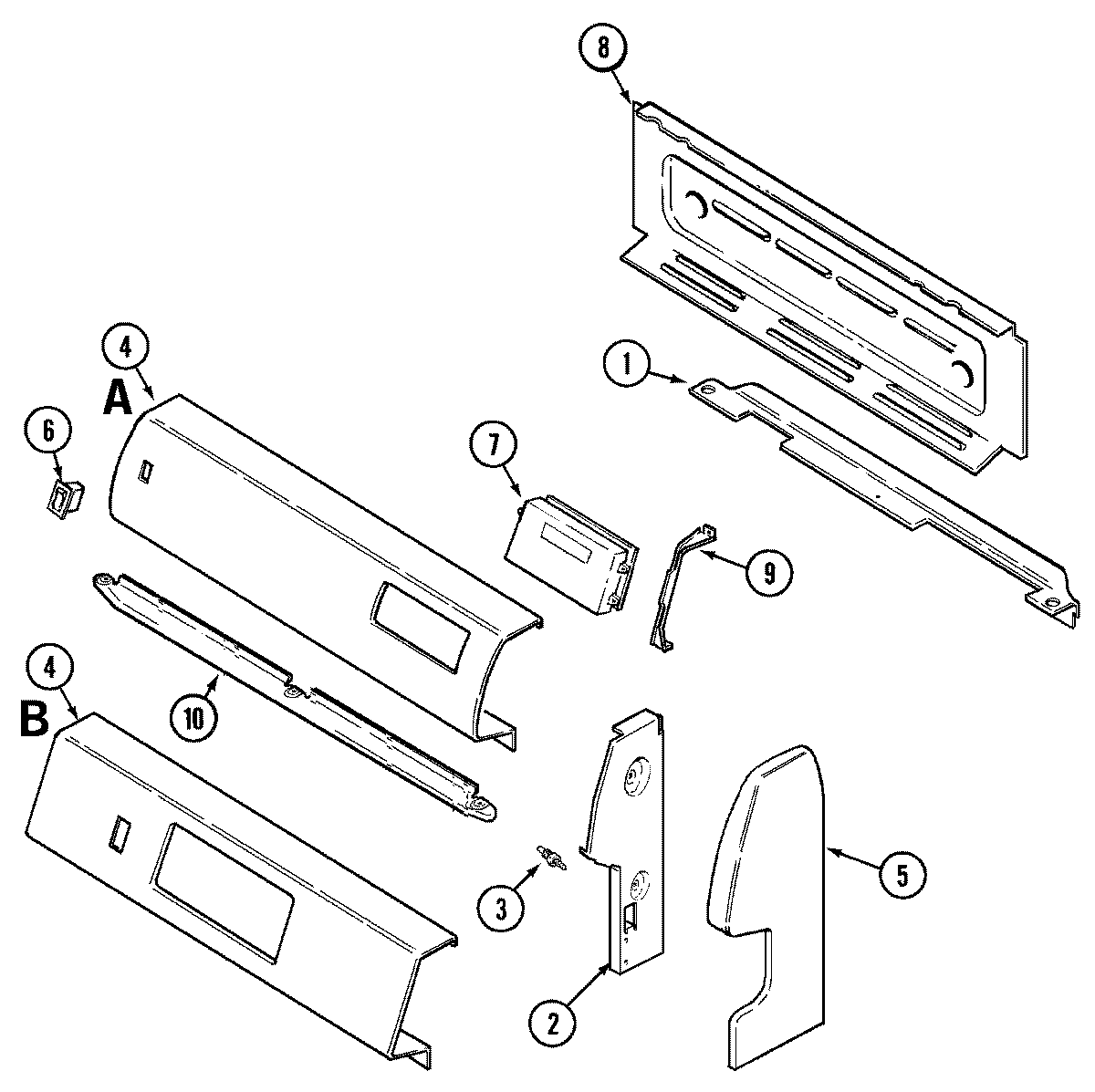

C31113WAA 02 – CONTROL PANEL (WAA, WAV)

C31113WAA 02 – CONTROL PANEL (WAA, WAV)

Written by

in

C31113WAA 02 – CONTROL PANEL (WAA, WAV)

Products

PositionProduct
NIMAY 16010161
NIMAY 74002477
NIMAY 74002355
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4MAY 74002436
4WP98008545 Whirlpool Screw
5MAY 74002432
5MAY 74002407
5MAY 74002406
6MAY 7403P102-60
7MAY 7602P118-60
7WPY706189 Whirlpool Stove Screw
7W10799767 Whirlpool Clock Timer
8SCREW
8MAY 74002450
9WP59002061 Whirlpool Microwave Screw
9MAY 74002449
