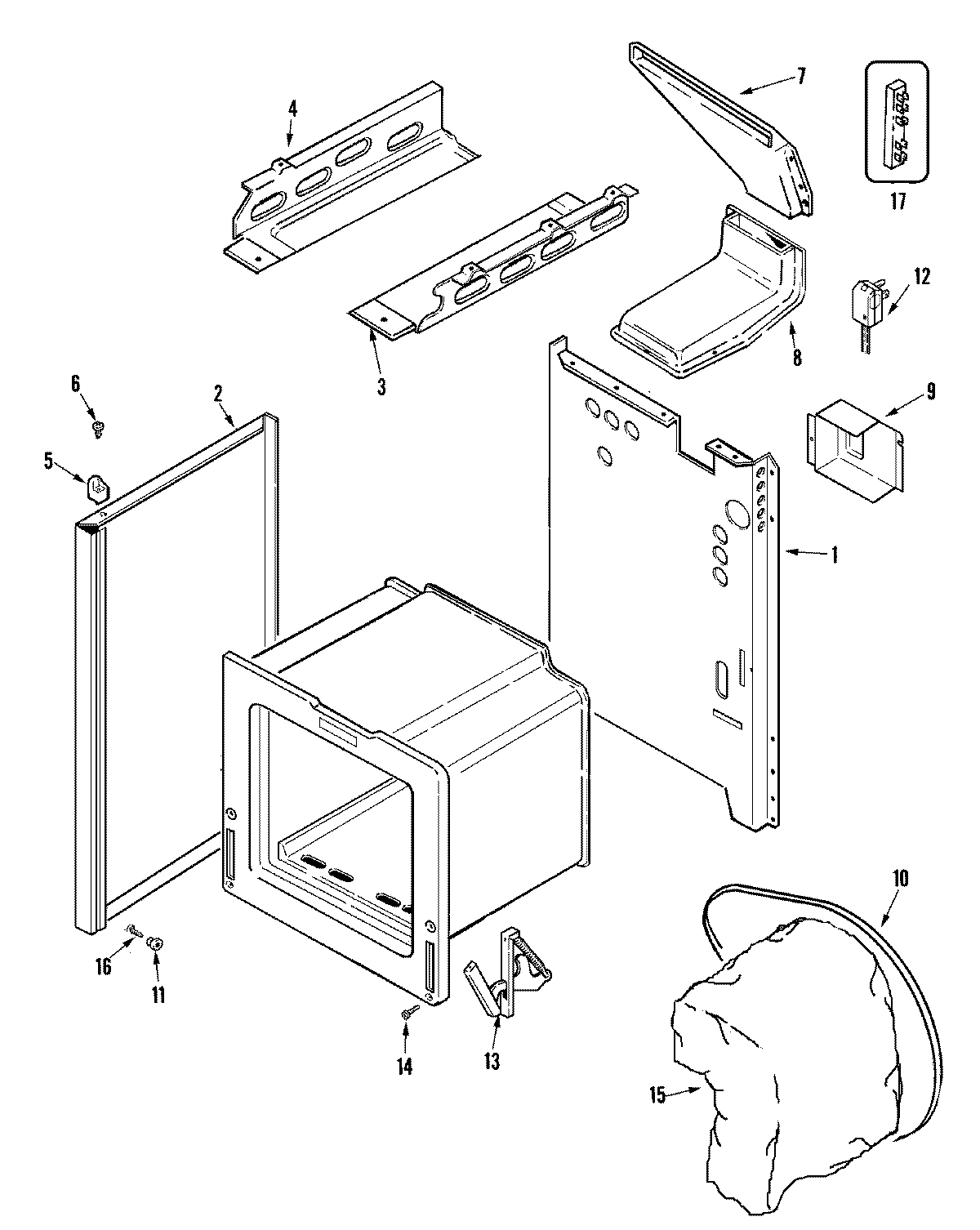

C31113WAB 01 – BODY

C31113WAB 01 – BODY

Written by

in

C31113WAB 01 – BODY

Products

PositionProduct
1MAY 74005216
1MAY 74006548
1GROMMET
1MAY 8008P021-60
2MAY 74003283
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 74002412
8MAY 74006420
8WP74003976 Whirlpool Screw
9MAY 74004591
9SCREW
10MAY 74002369
11MAY 8004P024-60
12MAY 7402P043-60
13W10876639 Whirlpool Door Hinge Assembly
14SCREW (10-24X5/16-NI)
15MAY 74002634
15MAY 74002370
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
17MAY 7401P037-60
17SCREW (8BX3/8-NI)
