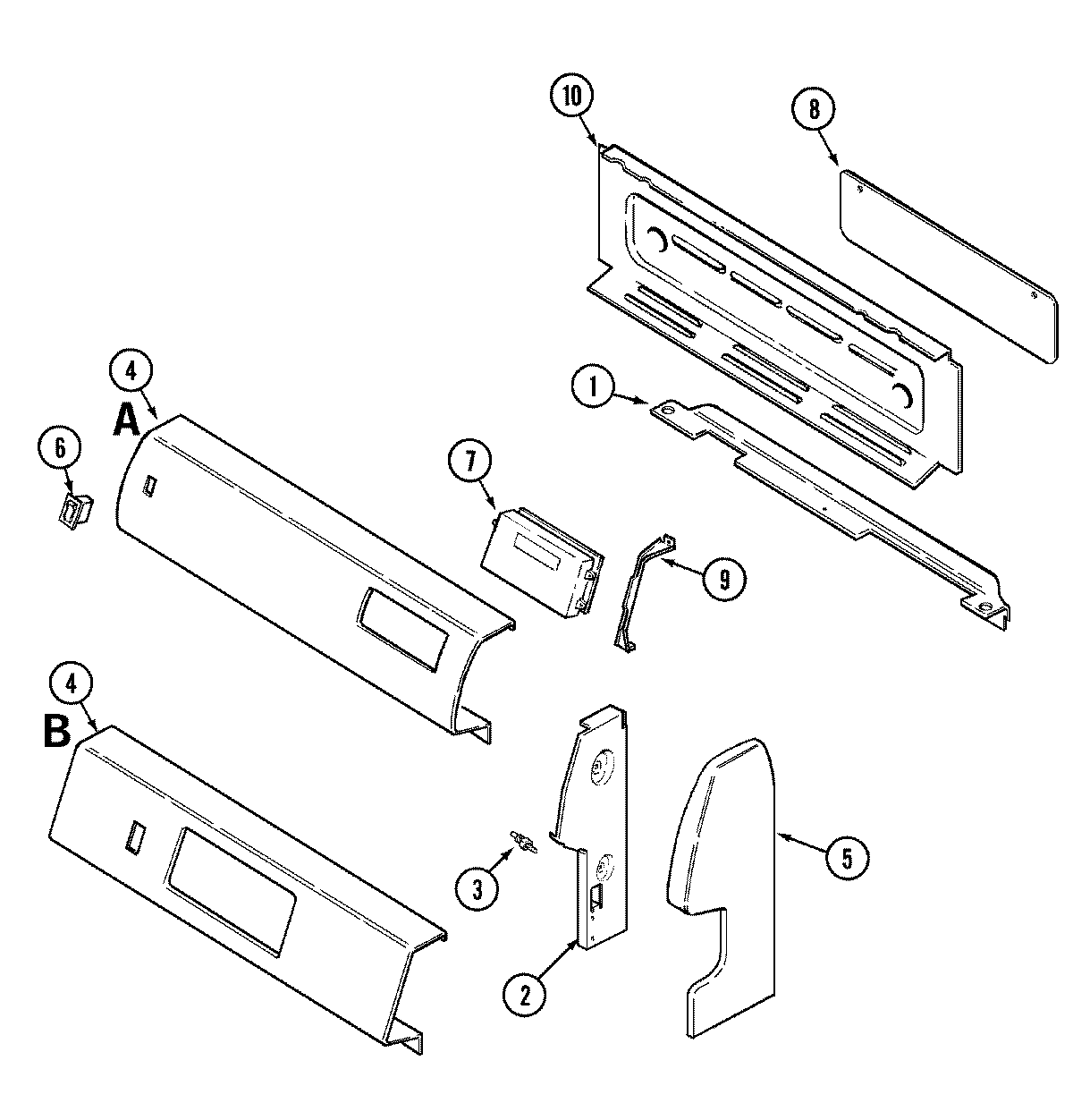

C31113WAVP 02 – CONTROL PANEL

C31113WAVP 02 – CONTROL PANEL

Written by

in

C31113WAVP 02 – CONTROL PANEL

Products

PositionProduct
NIMAY 74003828
NIMAY 74005147
NIMAY 74002477
NIMAY 74002355
NIMAY 16010161
NISCREW (8ABX1/2“-BLK)
1MAY 74005047
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4MAY 74002437
4MAY 74005277
5WP98008544 Whirlpool Screw Assembly
5MAY 74002451
5MAY 74002439
5MAY 74002438
6MAY 7403P200-60
7W10799767 Whirlpool Clock Timer
7MAY 7101P348-60
8MAY 74002448
9MAY 74002449
9WP59002061 Whirlpool Microwave Screw
10MAY 74005146
10MAY 74002450
10SCREW
