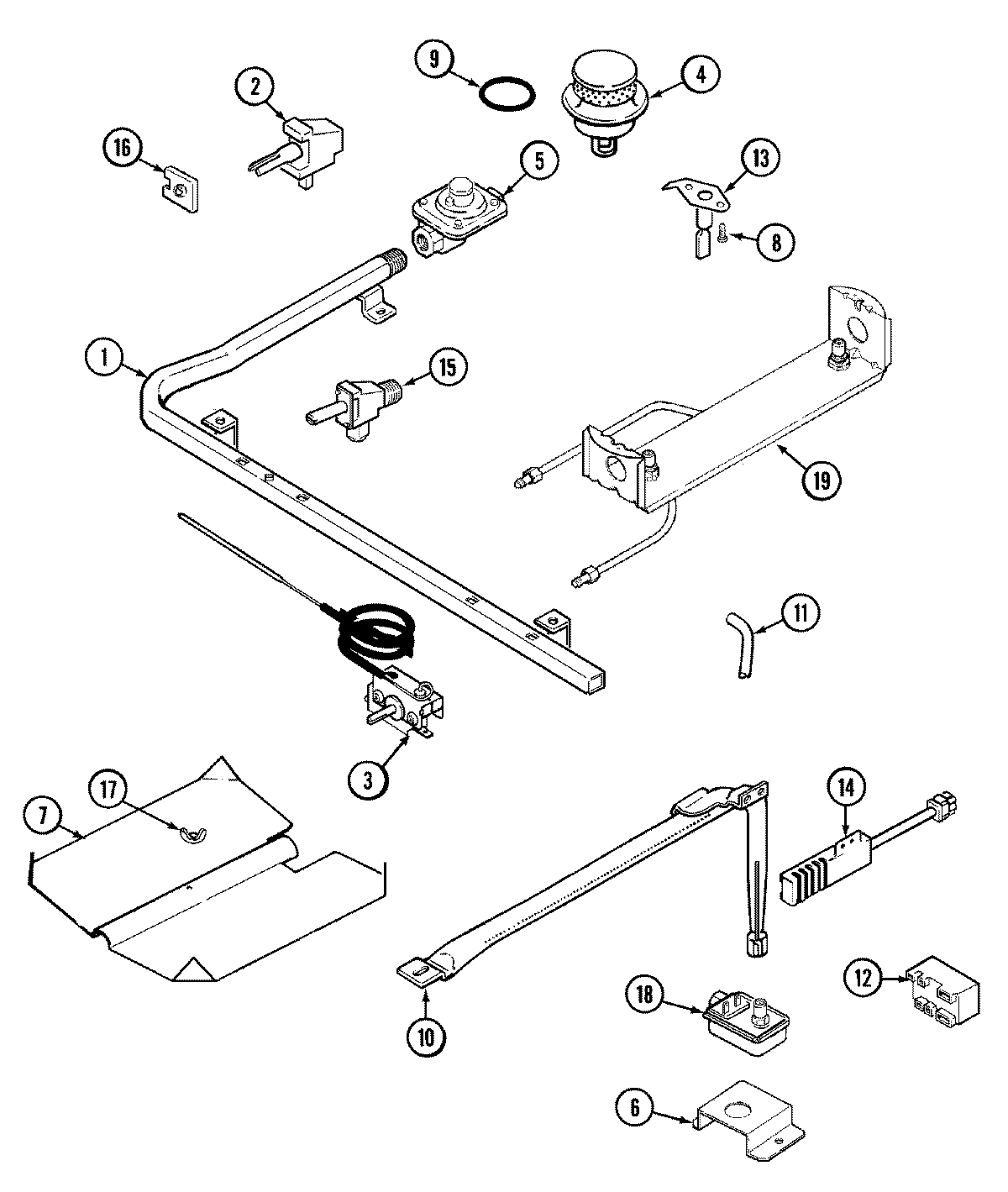

C31113WAVP 04 – GAS CONTROLS
Written by
in
C31113WAVP 04 – GAS CONTROLS
Products
Position
Product
NI
MAY 74002457
NI
MAY 74002362
NI
MAY 74002363
1
MAY 74002454
2
WP8273096 Whirlpool Screw
2
MAY 74002455
3
MAY 7101P280-60
3
WP74002390 Whirlpool Oven Thermostat
4
MAY 3412D018-26
5
MAY 7510P052-60
6
MAY 74002394
7
MAY 74002393
8
MAY Y707113
9
MAY 74002745
10
SCREW
10
MAY 74002434
11
MAY 1555251
11
MAY 74002456
12
MAY 74003288
12
MAY 7431P027-60
13
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14
MAY 7432P076-60
14
WP3351614 Whirlpool Screw
15
12002280 Whirlpool Oven Valve Kit and Screw
15
MAY 7101P044-60
16
MAY 74002384
17
NUT, WING
18
MAY 74002585
18
MAY 74005330
18
MAY 74006352
19
MAY 74002586
←
