C31113WAVP 05 – OVEN/BASE – Aparts

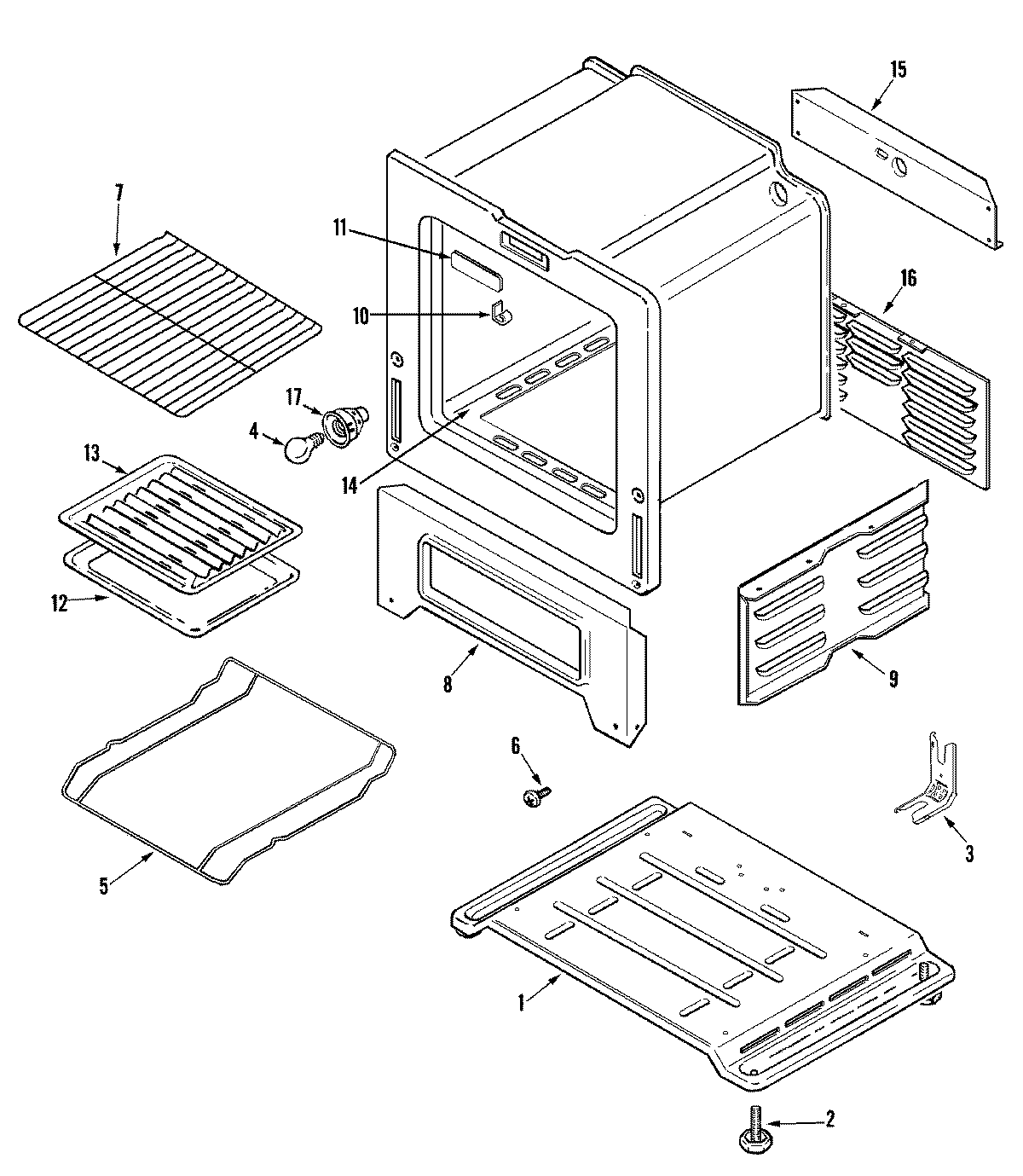

C31113WAVP 05 – OVEN/BASE

Products

Position	Product
1	MAY 74002372
2	W11665456 Whirlpool Range Level Foot
3	MAY 74002311
3	MAY 7101P344-60
4	RANGE ONLY 40W 120V APPL BULB
5	MAY 74002381
6	WP74003976 Whirlpool Screw
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 7718P013-60
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74002377
14	MAY 74002376
15	MAY 74002378
16	MAY 74002379
16	SCREW
17	MAY 74003387
17	MAY 7408P037-60
