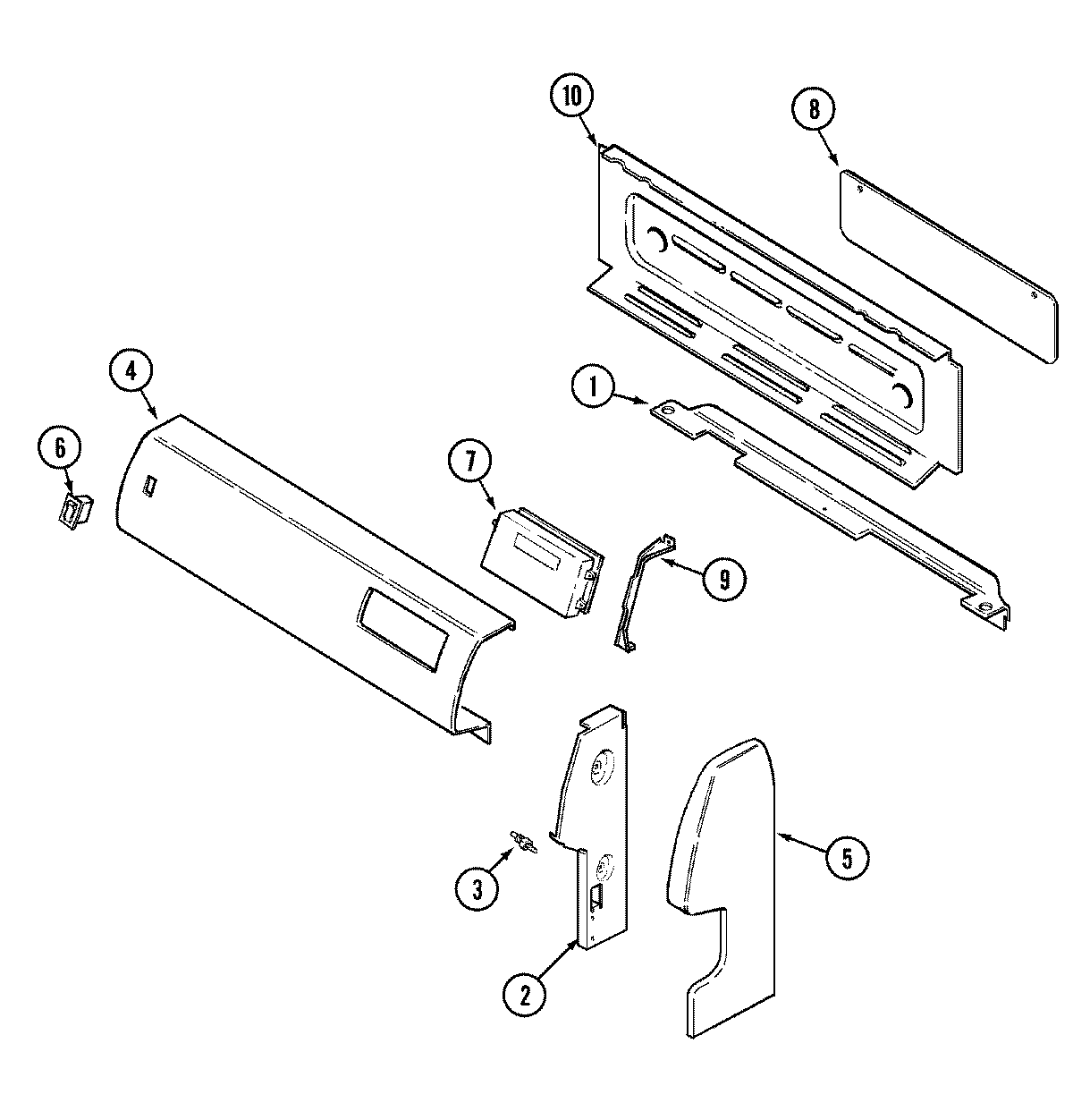

C31315VAV 02 – CONTROL PANEL

C31315VAV 02 – CONTROL PANEL

Written by

in

C31315VAV 02 – CONTROL PANEL

Products

PositionProduct
NIMAY 74002477
NIMAY 74002355
NIMAY 16002080
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4WP98008544 Whirlpool Screw Assembly
4MAY 74002526
5MAY 74002451
5MAY 74002439
5MAY 74002438
6MAY 7403P200-60
7W10799767 Whirlpool Clock Timer
7MAY 7101P348-60
8MAY 74002448
9WP59002061 Whirlpool Microwave Screw
9MAY 74002449
10MAY 74002450
10SCREW
