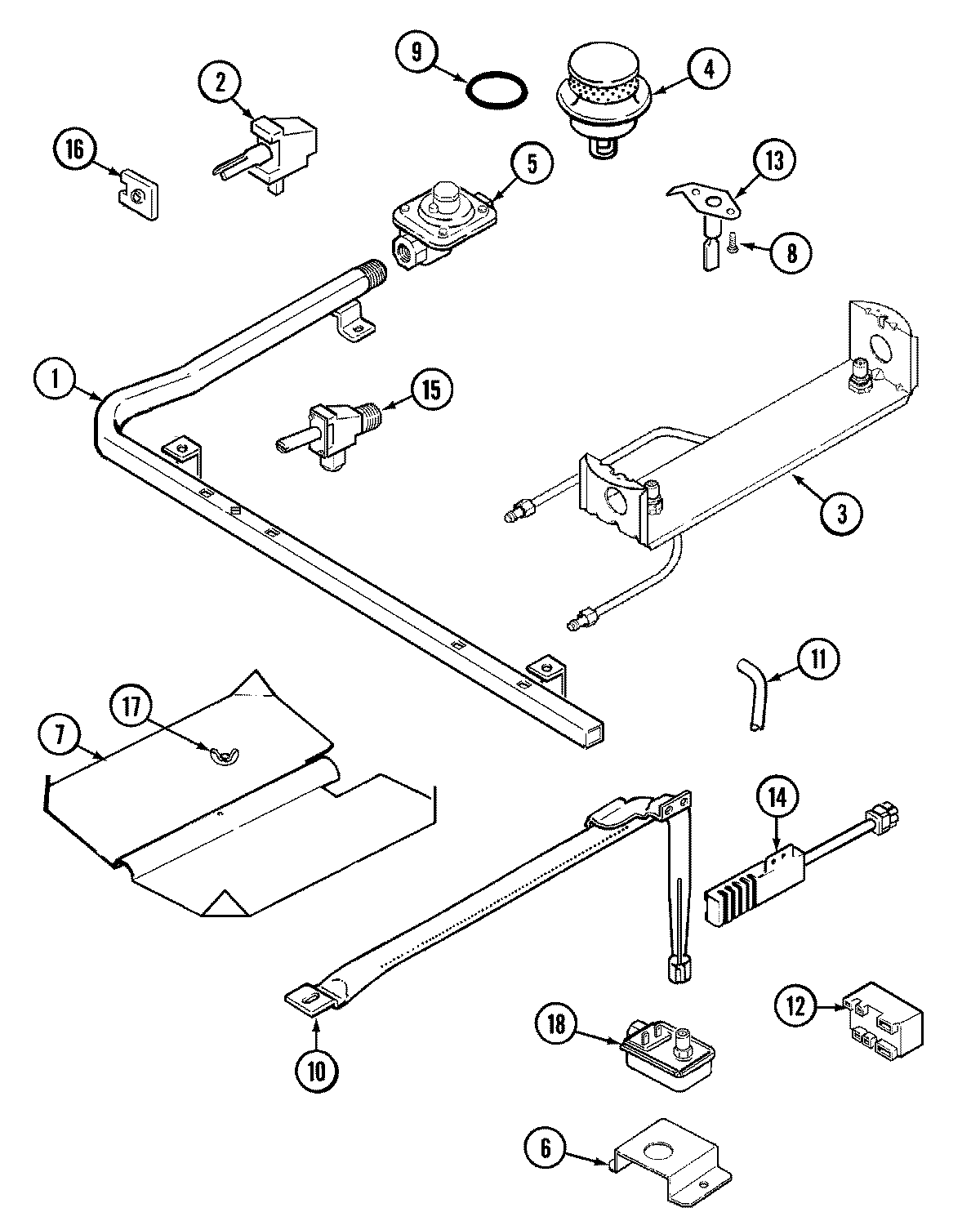

C31315VBM 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74002363
NI	MAY 74002457
NI	MAY 74002362
1	MAY 74002531
2	WP8273096 Whirlpool Screw
2	MAY 7502P252-60
2	MAY 74002532
3	MAY 74002535
3	MAY 74002534
4	MAY 74003966
4	MAY 3412D018-08
4	MAY 74003521
5	MAY 7510P049-60
6	MAY 74002394
7	MAY 74002393
8	MAY Y707113
10	SCREW
10	MAY 74002434
11	MAY 74002456
11	MAY 1555251
12	MAY 74003288
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14	MAY 7432P076-60
14	WP3351614 Whirlpool Screw
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 7101P044-60
16	WP7403P287-60 Whirlpool Igniter Switch
16	MAY 74002533
17	NUT, WING
18	MAY 74005329
18	MAY 74002387
