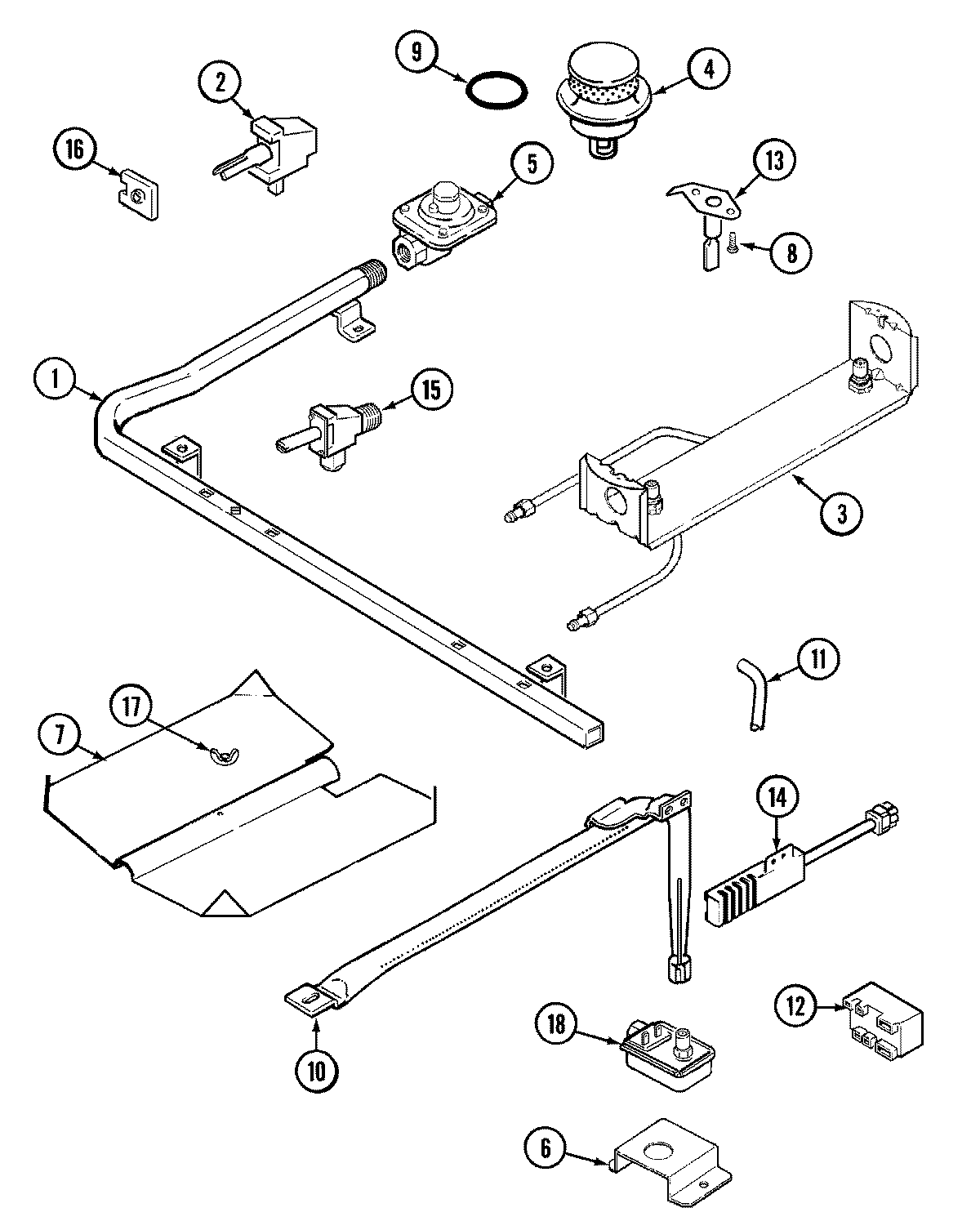

C31315VBQ 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74002457
NI	MAY 74002363
NI	MAY 74004231
1	MAY 74002531
1	MAY 74006416
1	MAY 74009463
2	MAY 74003925
2	MAY 74002532
2	MAY 12002281
2	WP8273096 Whirlpool Screw
3	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
3	MAY 74002534
3	MAY 74002535
4	MAY 74003966
5	MAY 7510P049-60
6	MAY 74005051
7	MAY 74002393
8	MAY Y707113
9	MAY 74002745
10	MAY 74002434
10	SCREW
11	MAY 74002456
11	MAY 1555251
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14	SCREW (10-24X5/16-NI)
14	MAY 7432P075-60
15	MAY 71003231
15	12002280 Whirlpool Oven Valve Kit and Screw
15	12002277 Whirlpool Oven Valve Kit & Screw
16	WP7403P287-60 Whirlpool Igniter Switch
16	MAY 74002533
16	MAY 74009464
17	NUT, WING
18	MAY 74005329
18	MAY 74006281
