C31315VBV 05 – OVEN/BASE

C31315VBV 05 – OVEN/BASE

Written by

in

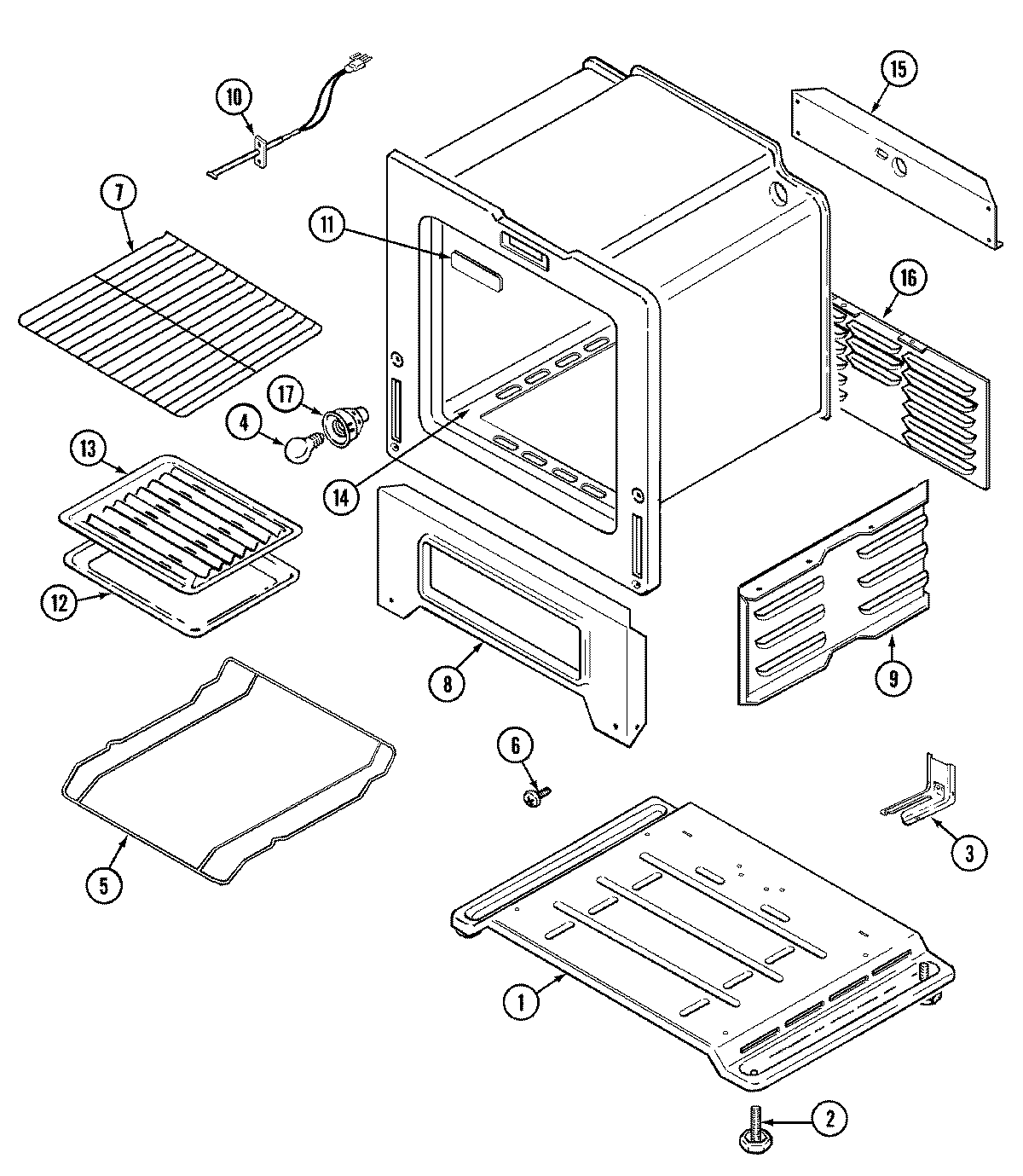

C31315VBV 05 – OVEN/BASE

Products

PositionProduct
1MAY 74002372
2W11665456 Whirlpool Range Level Foot
3WP7101P485-60 Whirlpool Anchor Tip
3MAY 74002311
4RANGE ONLY 40W 120V APPL BULB
5MAY 74002381
6WP74003976 Whirlpool Screw
7WPW10282492 Whirlpool Oven Rack
8MAY 74002327
9MAY 74002374
9MAY 74002375
1012001655 Whirlpool Oven Sensor
10MAY 74003413
11MAY 7718P013-60
12MAY Y3401F02019
13MAY Y3413F01619
14MAY 74002377
14MAY 74002376
15MAY 74002378
16SCREW
16MAY 74002379
17MAY 7408P037-60
17MAY 74003387
