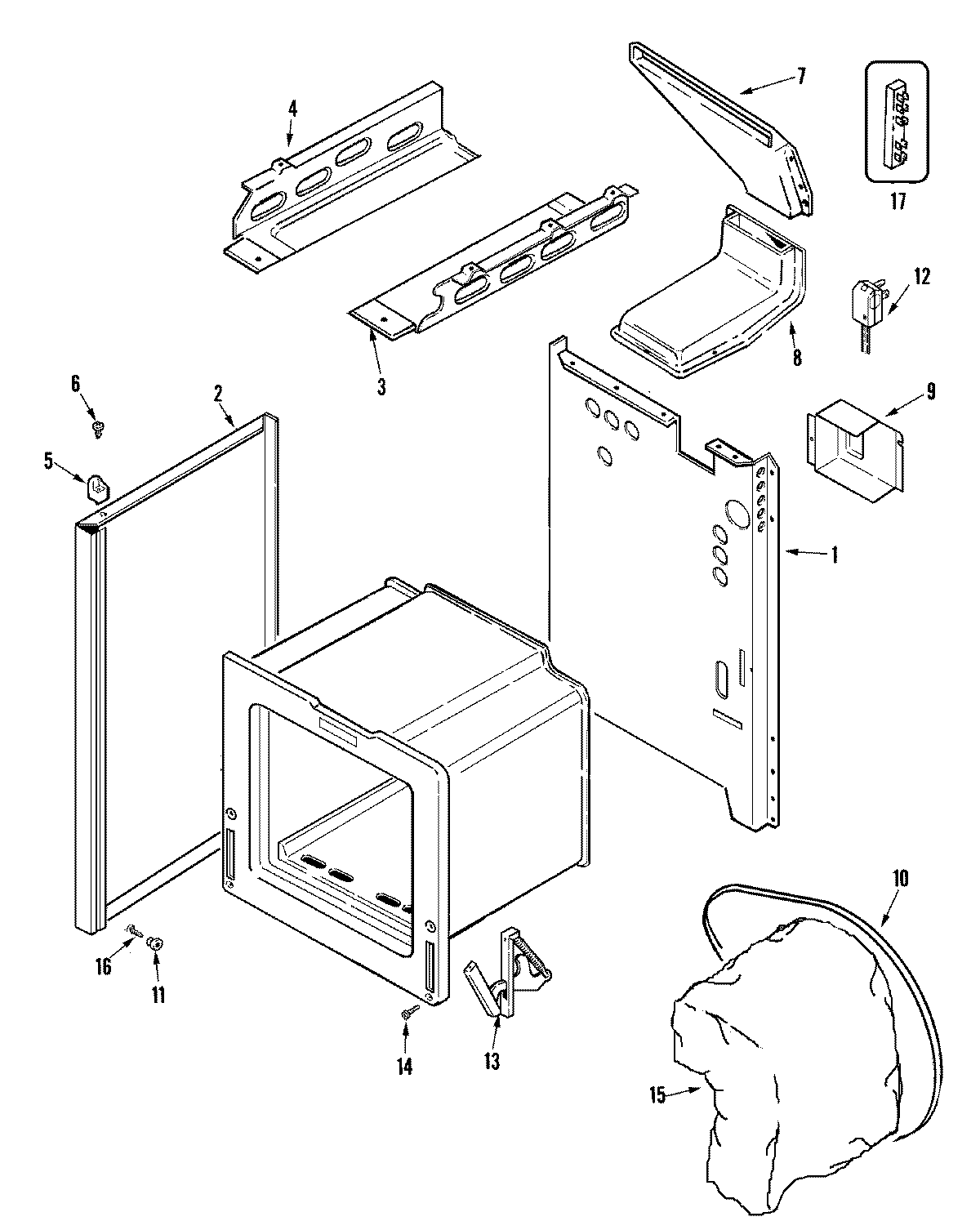

C31315XBT 01 – BODY

Products

PositionProduct
1MAY 74005216
1MAY 8008P021-60
1GROMMET
1MAY 74006548
2MAY 74004965
3MAY 74002632
4MAY 74002633
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74002412
8MAY 74006420
8WP74003976 Whirlpool Screw
9SCREW
9MAY 74004591
10MAY 74002369
11MAY 8004P024-60
12MAY 7402P043-60
14SCREW (10-24X5/16-NI)
15MAY 74002634
15MAY 74002370
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
17SCREW (8BX3/8-NI)
17MAY 7401P037-60
