C31315XBT 03 – DOOR/DRAWER

C31315XBT 03 – DOOR/DRAWER

Written by

in

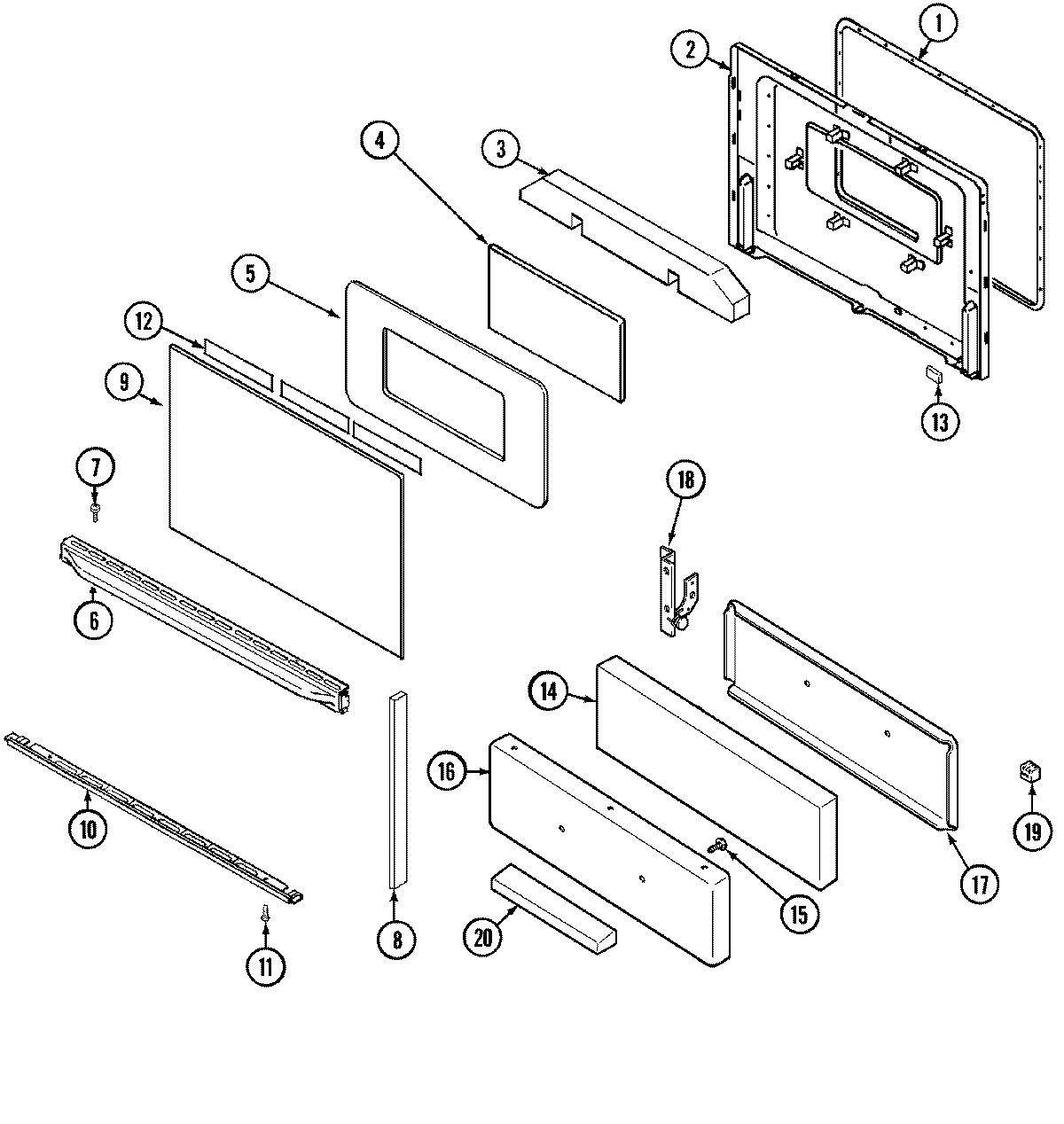

C31315XBT 03 – DOOR/DRAWER

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2MAY 74005097
3MAY 74002458
4MAY 74002459
5MAY 74002461
5MAY 7101P209-60
6MAY 74003429
7SCREW (8ABX1/2“-BLK)
8MAY 74003430
9MAY 74003431
10MAY 74003432
12MAY 8270P095-60
13WP74005546 Whirlpool RU Spacer
14MAY 74001814
1574002481 Whirlpool Screw
16MAY 74005046
17MAY 74007553
17MAY 74002397
18SCREW
18MAY 74002398
19MAY 8016P015-60
20MAY 74001820
