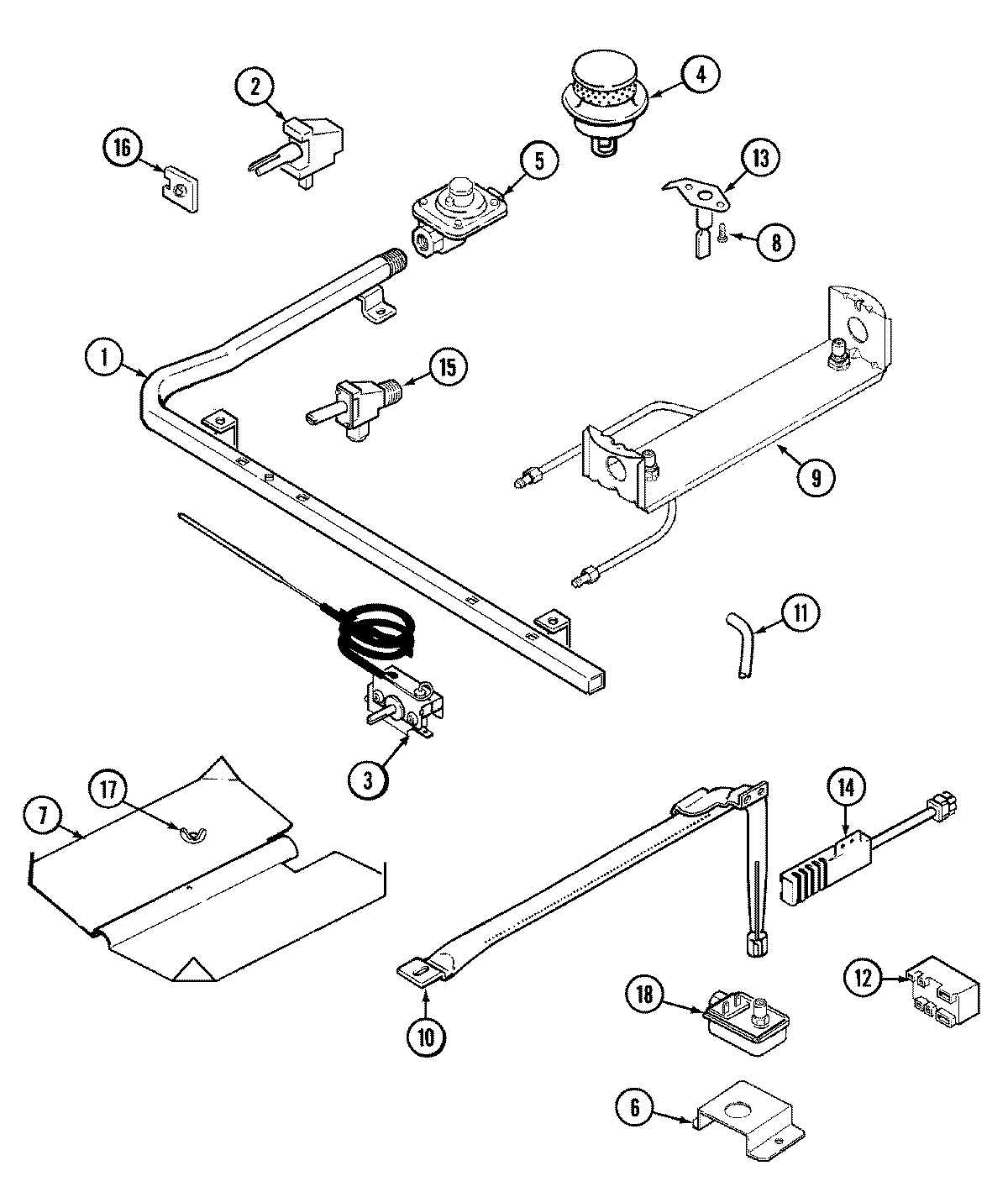

C31315XBW 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74002457
NI	MAY 74002363
1	MAY 74009463
1	MAY 74006416
2	MAY 74003925
2	MAY 74002532
2	MAY 12002281
3	MAY 7101P280-60
3	12001655 Whirlpool Oven Sensor
4	WP3412D024-09 Whirlpool Oven Burner Head
5	MAY 74006282
6	MAY 74005051
7	MAY 74002393
8	MAY Y707113
9	WP5187M026-60 Whirlpool Surface Burner Orifice Holder
10	SCREW
10	MAY 74002434
11	MAY 74006417
11	MAY 1555251
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
14	SCREW (10-24X5/16-NI)
14	MAY 7432P075-60
15	MAY 7101P044-60
15	MAY 74009460
15	12002280 Whirlpool Oven Valve Kit and Screw
16	MAY 74002533
16	12002277 Whirlpool Oven Valve Kit & Screw
16	WP7403P287-60 Whirlpool Igniter Switch
17	NUT, WING
18	MAY 74006281
