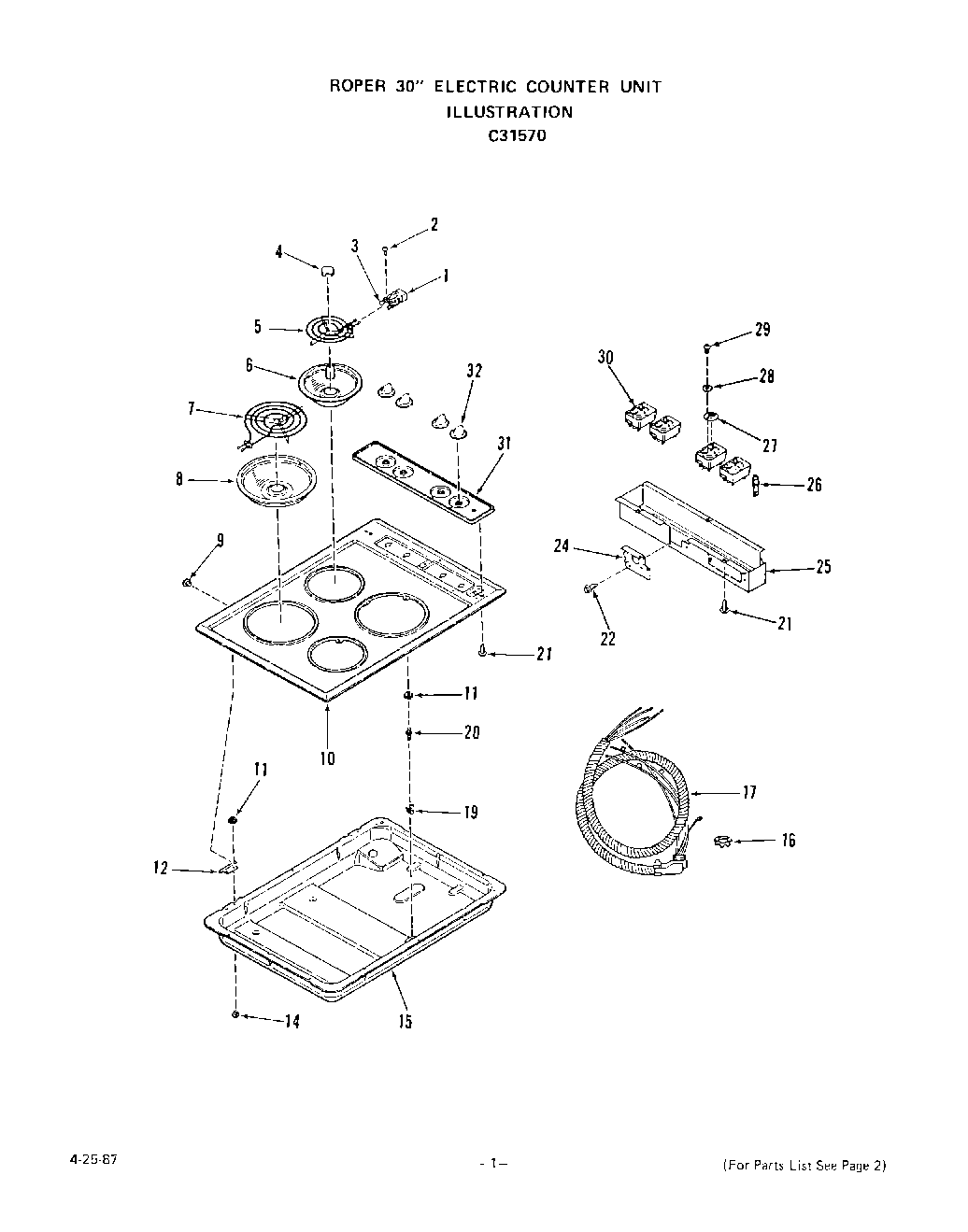

C3157^0 02 – ELEC COUNTER UNIT

Products

Position	Product
1	Term. Block w/Leads-All 2101 Models
2	Screw 7-32×5/16“(2 Req) All 2101 Models
3	Bracket-Term. Block (2 Req) All 2101 Mod.
4	Medallion (2 Req) All 2101 Models
5	6“ Surface Element (1 Req) All 2101 Models
6	6“ Burner Bowl (1 Req) All 2101 Models
7	8“ Surface Element (1 Req) All 2101 Mod.
8	8“ Burner Bowl (1 Req) All 2101 Models
9	Screw 6-32×1/4“
10	Door, Inner
10	Coffee
10	Platinum
10	Wheat
10	Almond
10	Chrome
10	Avocado
10	White
11	Keps Nut 8-32
12	Hinge-Main Top
14	Screw 8-32×1/4“
15	Burner Box
16	Nut (For Key 45)
17	Conduit Harness Asm.
19	Catch-Strike
20	Strike-Broiler Door
21	Screw 6-32×5/16“
22	Screw 10 – 32 x 7/16“
24	Conduit Mounting Plate
25	Wire Cover
26	Indicator Light
27	WPL 280157
28	Washer
29	Screw 8-32×1/4“
30	Left Front & Right Rear
30	Right Front & Left Rear
31	Control Panel
32	Infinite Knob
