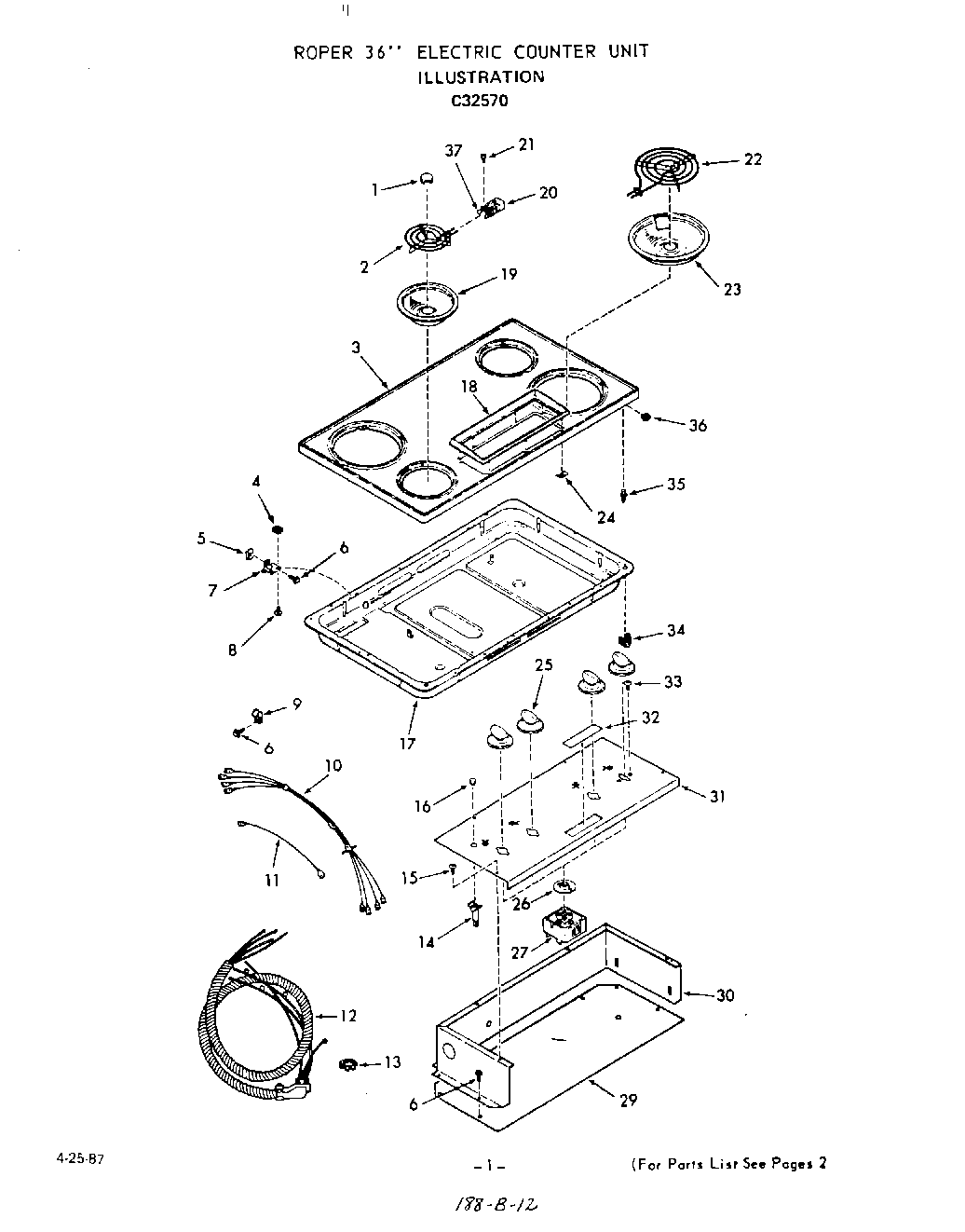

C3257^0 02 – ELEC COUNTER UNIT

Products

Position	Product
	WPL ARI21153A7
1	Medallion (4 Required)
2	2454X3A Models
3	Main Top (Golden Wheat)
3	Main Top (Toast)
3	Main Top (Avocado)
3	Main Top (Chrome)
3	Main Top (Almond)
3	Main Top (White)
3	Main Top (Platinum)
3	Main Top (Coffee)
5	Speed Nut
6	Screw 10 – 32 x 7/16“
7	Hinge
8	Screw 8-32×1/4“
9	WPL 97047
10	WPL 318906
10	El
11	Fixture Wire Lead (Ind. Light to Lt. Rear Inf. Heat Control (Red))
11	Fixture Wire Lead (Ground Wire (Green))
11	Wire Lead (Indicator Light to All Infinite Controls)
12	Conduit & Harness
13	Nut (For Key 45)
14	Indicator Light
15	Screw 6-32×5/16“
16	Lens-Indicator Light (2 Req)
17	WPL 316339
18	WPL 278503
19	6“ Burner Bowl (1 Req) All 2101 Models
20	Term. Block w/Leads-All 2101 Models
21	Screw 7-32×5/16“(2 Req) All 2101 Models
22	2454X3A Models
23	8“ Burner Bowl (1 Req) All 2101 Models
24	WPL 24710
25	Infinite Knob
26	WPL 280157
27	Infinite Control (Right)
27	Infinite Control (Left)
29	WPL 305982
30	Air Deflector
31	Controls Mounting Plate
32	Name Plate
33	Screw 8-32×1/4“
34	Catch-Strike
35	Strike-Main Top (2 Required)
36	Keps Nut 8-32
37	Bracket-Term. Block (2 Req) All 2101 Mod.
37	WPL 337383
37	WPL 309885
37	WPL 308104
