C3357^0 02 – ELECTRIC COUNTER UNIT

C3357^0 02 – ELECTRIC COUNTER UNIT

Written by

in

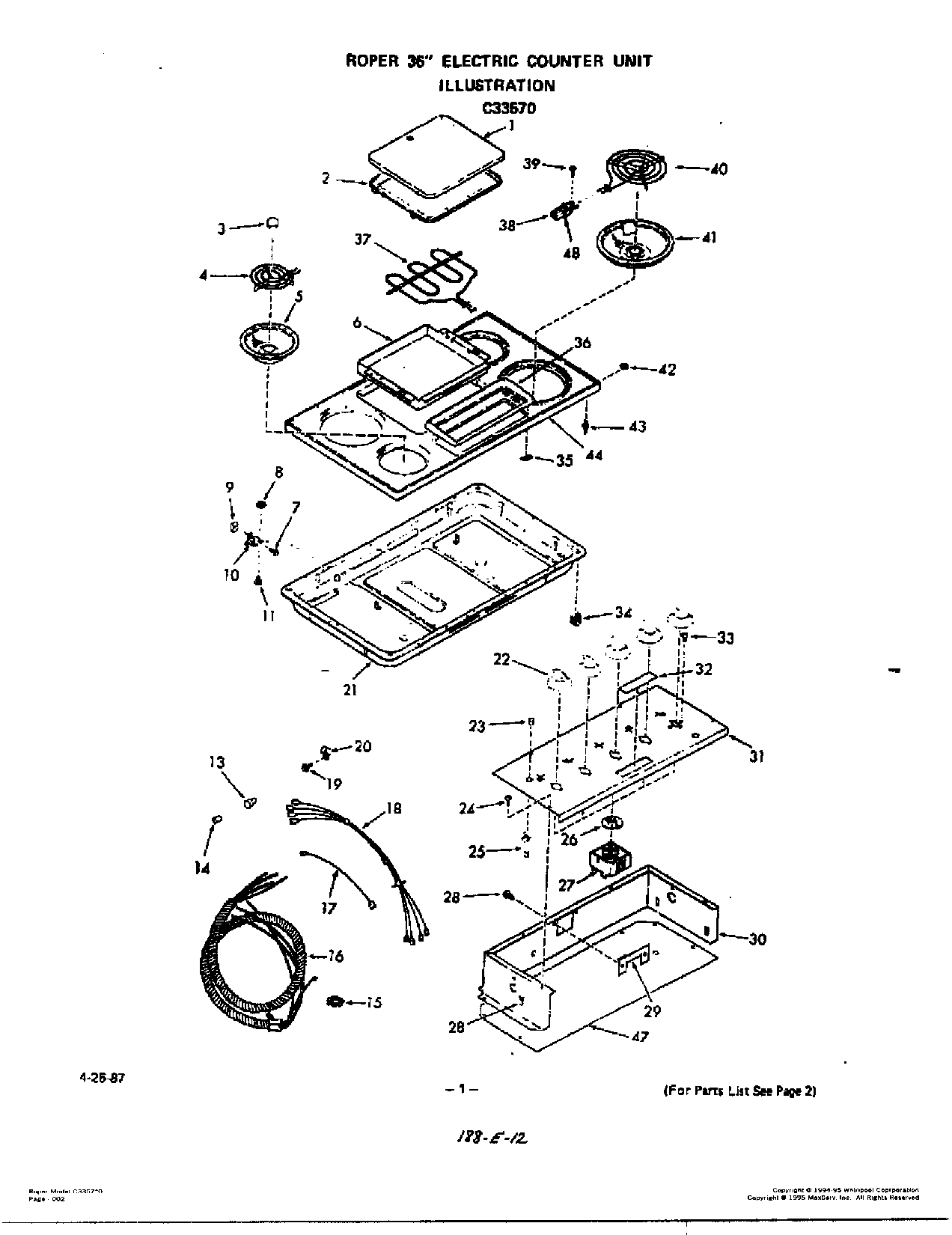

C3357^0 02 – ELECTRIC COUNTER UNIT

Products

PositionProduct
1Griddle Cover (Golden Wheat 1633H0A)
1Chrome
1Griddle Cover (Platinum)
1Griddle Cover (Toast)
1Griddle Cover (White 1633W0A)
1Griddle Cover (Coffee 1633C0A)
1Griddle Cover (Avocado 1633A0A)
1Griddle Cover (Almond 1633L0A)
2Griddle-Silverstone Coated
3Medallion (2 Req) All 2101 Models
46“ Surface Element (1 Req) All 2101 Models
56“ Burner Bowl (1 Req) All 2101 Models
6Shield-Griddle
9Speed Nut
10Hinge
11Screw 8-32×1/4“
13Insulator-Nylon
14Cap-Splice
15Nut (For Key 45)
16Harness Conduit
17Fixture Wire Lead (Cond. Harn. to Grid, Rt. Rear, Rt. Frt. Heat Cont. (Red))
17Fixture Wire Lead (Cond. Harn. to Grid, Rt. Rear, Rt. Frt. – Heat Cont. (Blk))
17Fixture Wire Lead (Cond. Harn. to Lt. Rear, Lt. Frt., Heat Cont. (Blk))
17Fixture Wire Lead (Cond. Harn. to Lt. Frt., & Lt. Rear Heat Cont. (Red))
17Fixture Wire Lead (Ind. Light to All Top Elem. Controls (Yellow))
17Fixture Wire Lead (Ind. Light to Lt. Rear Inf. Heat Control (Red))
17Fixture Wire Lead (Grid. Term. Block to Grid Heat Cont. (2 Req-Blk))
17Fixture Wire Lead (Ground Wire (Green))
18WPL 318906
18El
19WPL 295850
20WPL 109267
21WPL 316339
22Infinite Knob
23Lens-Indicator Light (2 Req)
24Screw 6-32×5/16“
25Indicator Light
26WPL 280157
27Right Front & Left Rear
27Left Front & Right Rear
28Screw 10 – 32 x 7/16“
29WPL 310605
30WPL 310611
31WPL 308849
32Name Plate
33Screw 8-32×1/4“
34Catch-Strike
35WPL 24710
36WPL 278503
37WPL 310604
38Term. Block w/Leads-All 2101 Models
39Screw 7-32×5/16“(2 Req) All 2101 Models
408“ Surface Element (1 Req) All 2101 Mod.
418“ Burner Bowl (1 Req) All 2101 Models
42Keps Nut 8-32
43Strike-Main Top (2 Required)
44WPL 330053
44WPL 330052
44WPL 324376
44WPL 315684
44WPL 315683
44WPL 315681
44WPL 315680
44WPL 315682
47WPL 305982
48Bracket-Term. Block (2 Req) All 2101 Mod.
